Sublimation Flexible Shin Pads

Sublimation Flexible Shin Pads

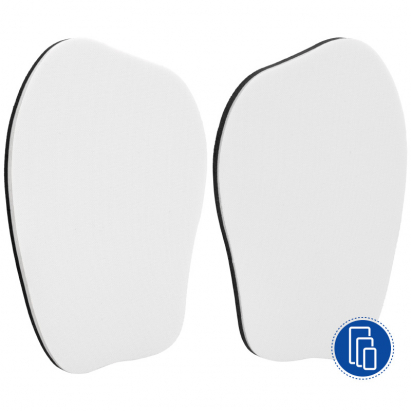

Pair of flexible shin guards designed for sports protection, you can personalise using dye sublimation printing.

  • Sublimate with a flat press
  • Made of 100% polyester and EVA foam
  • The shin pad sleeves can be purchased separately

More information

Reward Points
Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program

More information about the sublimation flexible shin pads

INDEX

> Description

> Material of the shin pads

> Personalisation templates

> Shin pad sleeves

> Dimensions

> Recommended instructions and parameters for sublimating the shin pads

> Recommended instructions and parameters for sublimating the sleeves

DESCRIPTION

  • Protects the shin in different sports like football, hockey, skating and more
  • Unisex, available in 2 different sizes, for children and adults
  • Suitable for personalisation on the white side using a flat heat press
  • Black EVA or foam backing. Reduces the impact of shocks

MATERIAL OF THE SHIN PADS

Made of 3 layers:

  • 1 layer of 100% sublimation polyester fabric, 180 gsm
  • 1 layer of D25 white EVA foam, 2.5 mm thick
  • 1 layer of D40 black EVA foam, 5.5 mm thick

PERSONALISATION TEMPLATES

To see the layers of the template, open the PDF file using Photoshop. Remember to enable the layers.

Templates sublimation flexible shin pads (.pdf - 2.6 MB)

SHIN PAD SLEEVES

  • Shin guard sleeves with front pocket to put them in
  • Made of elastic white polyester fabric. With holes for better breathability
  • Can be sublimated with an all-over print using a heat press
  • Available for kids and adults
  • Symmetrical, identical left and/or right

DIMENSIONS

Reference no. Range Dimensions (cm)
051153 Shin pads - Kid 11 x 15.5 x 0.8
051154 Shin pads - Adult 12 x 18.3 x 0.8
049936 Shin pad sleeve - Kid 11 x 21.8
038764 Shin pad sleeve - Adult 11.5 x 23

RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATING THE SHIN PADS

  • Print the design in mirror image on sublimation paper
  • Preheat the press to 185°C
  • Cover the lower platen of the press with protective paper
  • Place the shin pad and then the printed paper
  • Fix it with heat-resistant tape
  • Cover with protective paper
  • Press for 40 seconds, medium pressure
  • With the help of aprotective glove, remove the sublimated shin pad from the press
  • Carefully peel off the paper
  • Once the press is cool, press the shin pad again for 10-20 seconds to get rid of wrinkles or bubbles

RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATING THE SHIN PAD SLEEVES

  • Print the design in mirror image on sublimation paper
  • Preheat the press to 180-200°C
  • Cover the lower platen of the press with protective paper
  • Place the shin pad sleeve and the printed paper on top of it
  • Fix the paper with heat-resistant tape
  • Cover with protective paper
  • Press for 40-45 seconds, medium pressure
  • Using a protective glove, remove the newly printed shin pad sleeve
  • Carefully peel off the paper
  • Press again for 3 seconds
  • If sublimation paper residue remains, press for 6 seconds
  • Repeat the same steps on the back
Additional Information
Ref. 950326
Dimensions (mm) 119 x 181, 109 x 155
Print area (mm) 119 x 181, 109 x 155
Thickness (mm) 8
Size M, S
Surface material Tissue
Composition 100% Polyester
Marking techniques Dye sublimation
