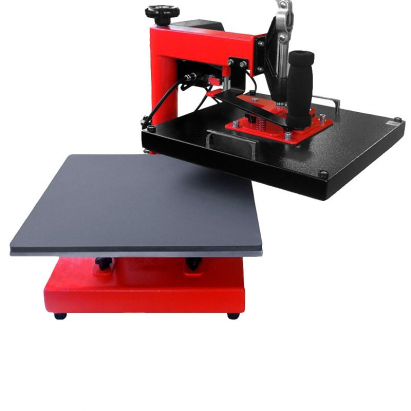

Combo Series C Heat Presses

Combo Series C Heat Presses

Rotating combo heat transfer presses.

Enhance its features by acquiring accessories for use on textiles or rigid materials.

You can get the modular press with the basic C1 model and add accessories as needed, or take advantage of better prices with the suggested C2, C5, or C8 combos.

More information

Reward Points
Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program

More information about the Combo Series C Heat Presses



INDEX

> Description

> Recommendation

> Available and included accessories

> Description of the accessories

> Manual

> Technical specifications

> Press dimensions

> Additional mug resistance dimensions

> Warranty



DESCRIPTION

  • Accessories can be easily and quickly interchanged
  • Control panel with large LCD digital screen, cooled by internal fan
  • Easy temperature and timer programming, with audible alert
  • Manual operation with articulated arm and ergonomic handle
  • Top plate with 90º rotation, facilitating product placement and preventing burns
  • Stable and robust structure, made with quality materials



RECOMMENDATION

  • Add the 6-9 oz drums and bottles resistance to your equipment to expand customization capabilities (Ref. 033064). Available separately



AVAILABLE AND INCLUDED ACCESSORIES

    Combo Series C Heat Presses
Ref.   034932 035379 034930 034931
  Description C1.2 C2.2 C5.2 C8.2
  38x38cm plate and resistance
033162 Mug resistance accessory ×
029643 Cylindrical resistance 10-11oz ×
033065 Conical resistance 12oz × × ×
033066 Conical resistance 17oz × × ×
033164 Plate and resistance for caps × ×
033251 Resistance for 12cm plates × ×
033252 Resistance for 15cm plates × ×
030753 Plate for slippers × × × ×
032856 Plate and resistance for flasks × × × ×



DESCRIPTION OF THE ACCESSORIES

Mug resistance accessories

Ref. 033162

Device required to use any mug resistance, sold separately.

Dimensions: 31 x 19 x 24 cm. Screws not included.



Additional mug resistances

Ref. 033064 - Cylindrical 6-9 oz

Ref. 029643 - Cylindrical 10-11 oz

Ref. 033065 - Conical 12 oz

Ref. 033066 - Conical 17 oz



Plate for slippers

Ref. 030753

Plate for transfers on slippers. Includes silicone pad, available separately for replacement (Ref. 040927).

Dimensions: 38 x 38 cm.



Plate and resistance for caps

Ref. 033164

Set for transfers on caps and any curved surface. Can be used to attach labels to garment collars.

Ironing surface: 14 x 8 cm. Dimensions: 18 x 8 x 9 cm.



Plate and resistance for flasks

Ref. 032856

Set of plate and heat resistance for transfers, usually by sublimation, on flasks.

Dimensions: 13.1 x 14 x 8 cm.



Plate resistances

Ref. 033251 and 033252

Resistances for transferring onto the flat bottom of a plate, available in 12 and 15 cm diameters.



MANUAL

Combo Series C heat press manual



TECHNICAL SPECIFICATIONS

Press type Swing-away
Opening Manual
Closure Manual
Control panel LCD screen
Lower plate size (cm) 38 x 38
Maximum thickness to be printed (cm) 5
Timer (sec) 0 - 480
Maximum temperature (ºC) 225
Temperature precision ± 0.5% (± 2 ºC)
Voltage (V) 120/220
Power (W) 1000



PRESS DIMENSIONS

Open press with thermal plate in initial position (cm) 40 x 67 x 58
Open press with rotated thermal plate (cm) 70 x 67 x 58
Packaging (cm) 68 x 64 x 52
Gross weight (kg) 40



ADDITIONAL MUG RESISTANCE DIMENSIONS

Dimensions provided by the manufacturer as a guide. It is recommended to perform tests on the resistance with the product to be customized before starting production.

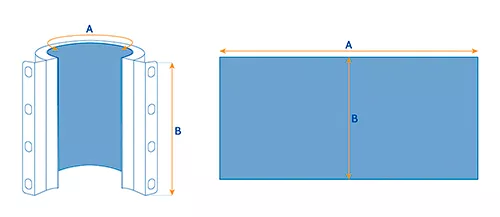

CYLINDRICAL

Ref. Capacity
(oz)
A
(cm)
B
(cm)
033064 6-9 21 13
029643 10-11 23 13

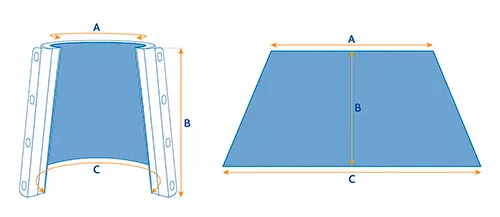

CONICAL

Ref. Capacity
(oz)
A
(cm)
B
(cm)
C
(cm)
033065 12 16 13 28
033066 17 17 16 25



WARRANTY



Additional Information
Ref. 948839
Brand Brildor
Print area (cm) 38 x 38
Power (W) 1000
Opening Manual
Closing Manual
