Professional Laser Positioners

Desktop laser pointers for precisely aligning designs before printing.

Essential for series transfers with transfer presses. Also useful in sewing, embroidery, crafts...

Infrared laser with cross beams (1 point) or grid (4 points)

More information

Availability:

Shown on each product

Skip to the end of the images gallery

New

Skip to the beginning of the images gallery

More information about the Professional Laser Positioners

INDEX

> Description

> Cross Laser Positioner (Ref. 032586)

> Grid Laser Positioner (Ref. 056500)

> Usage Recommendations

> Measurements

DESCRIPTION

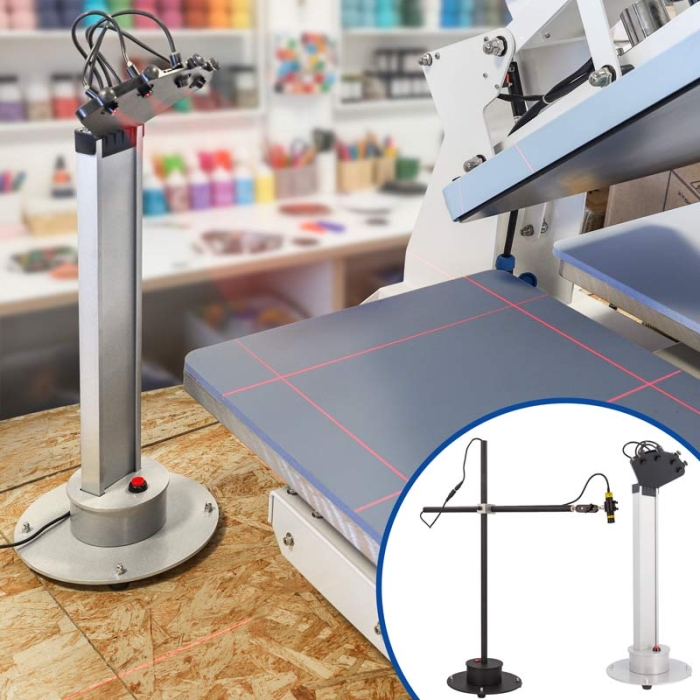

2 types of projection: cross for centring the design on a specific point and grid for outlining the entire stamping area
Facilitate design positioning before applying heat with the transfer press. Perfect for series work due to their speed and precision
Serve as a visual guide for following seams or edges in sewing and embroidery work
Infrared work lamps also useful in other applications such as DIY, crafts...
Desktop model. Base with 4 silicone feet providing stability and preventing movement
No assembly required, delivered ready to use

CROSS LASER POSITIONER (REF. 032586)

Pointer adjustable in any direction. The movable head allows the laser to rotate 360º and centre the cross over the design
Adjustable height from 3 to 64 cm to adapt the laser to the work area
Focus the light beam by rotating the end of the pointer
Perfect for fixing a guide point and aligning with total precision

GRID LASER POSITIONER (REF. 056500)

Easy to use, each pointer is moved manually to define a 4-sided polygonal marking area
Each line is independently adjustable with adjustment wheels
Structure with a fixed height of 50 cm and fixed head
Ideal for fitting the design within a clear reference frame

USAGE RECOMMENDATIONS

Avoid placing the positioner near the press or other heat sources to prevent damage
Do not point the laser directly at the eyes
Use safety glasses that block the laser's wavelength
It is advisable to protect the skin from the light beam

MEASUREMENTS

Ref.	032586	056500
Type	Cross (1 point)	Grid (4 points)
Height (cm)	3-64	50
Base (cm)	Ø20 x 1.5	Ø20 x 1.5
Laser Depth (cm)	6-46	Fixed
Net Weight (kg)	2.79	2.53

Additional Information

More Information
Ref.	954530
