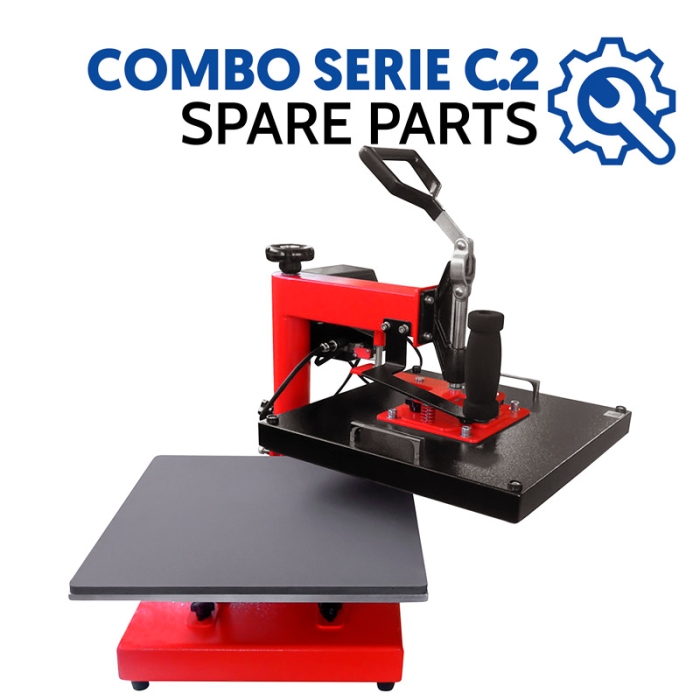

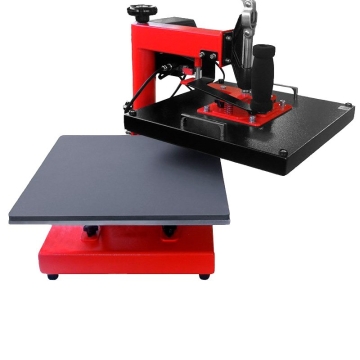

More information about the Spare Parts for Combo Series C.2 Presses

INDEX

> Description of the replacements

> Exploded view

> Warranty

DESCRIPTION OF THE REPLACEMENTS

38x38cm Plate with heating element

Ref. 032320

Includes male connector.

Articulated arm

Ref. 036639

Made of metal with plastic coating. Open dimensions: 38 x 11.5 x 7 cm

Articulated arm accessory for mug heating elements

Ref. 033163

Arm for opening and closing the accessory for mug heating elements (Ref. 033162). Made of metal with plastic coating. Dimensions: 16.5 x 11.5 x 5.5 cm

GY-04 Digital Controller

Ref. 029419

Programmable digital controller for time and temperature. Time range: 0-999 s. Temperature range: 0-225ºC / 0-437 ºF.

User manual (.pdf - 164kb).

Cable with probe

Ref. 035790

Dimensions: Ø2.5 x 48.5 cm

Pressure adjuster for Combo presses

Ref. 040442

Metal and plastic adjustment wheel. Dimensions Ø7.5 x 4 cm

Adjustment shaft for Combo presses

Ref. 040441

Dimensions: Ø1.3 x 24.7 cm

Limit switch

Ref. 029429

Limit switch micro.

EXPLODED VIEW

Combo Series C Press Manual

WARRANTY

• Replacements: 3 months

The period starts from the invoice date.
