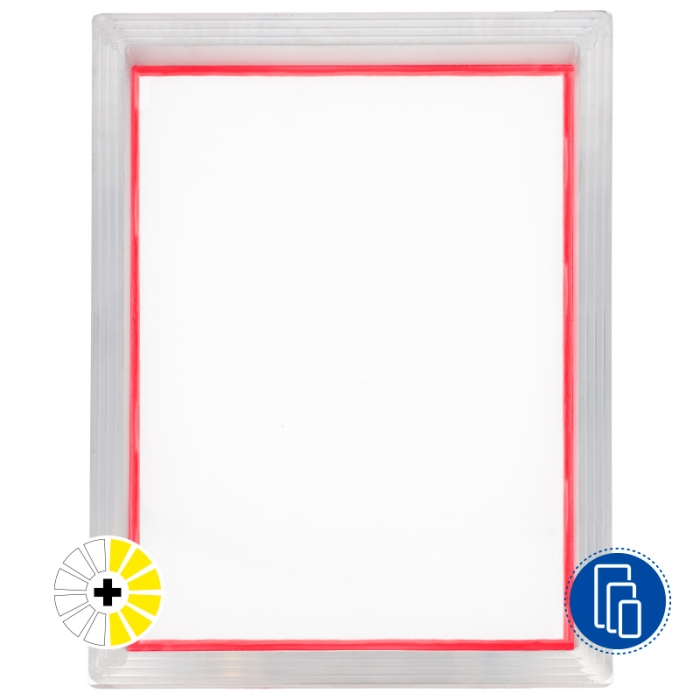

Aluminium Screen Printing Frames

Screens for screen printing with high durability aluminium frames. Frames covered with high-quality polyester meshes, using precision pneumatic tensioners that ensure perfect uniformity across the entire surface.

  • Internal dimensions (cm): from 30x35 to 50x75
  • Recommended for textile printing: 43 threads

More information

Availability:
Shown on each product
Reward Points
Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program

More information about screen printing aluminium screens

INDEX

> Advantages of aluminium screens

> How to choose the right screen

> Frequently asked questions

> Technical data

ADVANTAGES OF ALUMINIUM SCREENS

  • High durability - longer life span than screens with iron or wooden frames
  • Moisture resistance: they do not rust or degrade due to humidity.
  • No deformation: neither due to the tension of the mesh nor due to expansion. This has a direct impact on the quality of the printing because they help to maintain the tension of the mesh unchanged.
  • Excellent quality/price ratio: they do not need to be replaced frequently, so the higher the production volume, the more cost-effective they become.

HOW TO CHOOSE THE RIGHT NETTING

  • As a quick reference guide:
    • Textile screen printing (plastisols or lacquers with a high pigment load): 43 yarns
    • Graphic screen printing (water-based inks for paper): 90 wires
    • Industrial screen printing (solvent inks), four-colour textile, halftone: ≥ 90 wires

If you want to go a little deeper:

  • The mesh is the screen fabric. The printing ink passes through it during printing. They are made of polyester or nylon yarns. Our screens are made of 100% polyester monofilament yarns.
  • Screens are classified according to the openness of the weave, which is measured in number of threads per centimetre. In screen printing, we use meshes between 10 threads and 200 threads/cm.
  • The more threads, the smaller the openings will be, leaving less space for the ink to pass through. Conversely, fewer threads mean larger openings.
  • To print designs with a lot of detail or definition, it is advisable to use a mesh with more threads, which is more closed. On the other hand, a mesh with fewer threads is more open and recommended for printing less elaborate images such as lettering, text or geometric shapes. A design with details or small letters requires a mesh of more than 60 threads for a good result.
  • The type of ink also influences the mesh count recommendation:
    • More liquid inks, such as water-based inks, acramine and lacquers, pass well through small holes, which allows for more thread counts. With these inks, mesh counts of up to 90 threads are used.
    • Plastisols are denser and require lower thread counts.
    • If you need more definition you can combine the use of solvent inks with a tighter mesh, as these can pass through the mesh more easily.

You can also learn more about this topic in this post of our blog.

FREQUENTLY ASKED QUESTIONS

What is the difference between white and yellow mesh?

  • Yellow mesh does not refract light and allows for more definition in complex designs.

What size screen do I need?

  • The choice of frame size, also known as shablon, will depend on the size of the image you want to print.
  • To the size of the image you need to add 15 or 20 cm per side to get the size you need.
  • Example: for an image of 30 x 40 cm, it is advisable to use a frame measuring at least 45 x 55 cm. In this case, the 50 x 60 cm frame would be suitable.

At what tension are the screens stretched?

  • The screens are generally tensioned to 27 Newtons. The recommended tension value varies according to the size of the screen, the weft, the frame material and the surface on which the screen is to be printed.
  • Just as important as the tension is its evenness over the entire surface and stability over time.

What happens if a screen arrives damaged in transit?

  • The procedure is the same as for any package you receive from us: if the package is already visibly damaged before you open it, do not sign for it. And if you decide to do so for any reason, please state this in writing on the delivery note. If the damage was not visible until you opened the package, call us or send us an email immediately to inform us so that we can resolve the situation in the most convenient way for both of you. You have 10 working days to claim for transport damage.

Two screens have arrived stuck together, what should I do?

  • Don't worry, it's easy to solve. Take them out of the package and separate them from the others. Don't try to separate them by pulling on the frames. Instead, gently tap them on the ground at a slight angle. This should separate them without damaging them. If you don't succeed, contact us

TECHNICAL DATA

DIMENSIONS OF THE SCREENS

Internal dimensions (cm) Profile section (cm) Thickness (mm)
30 x 35
3,8 x 2,5 2,4
30 x 40 3,8 x 2,5 2,4
32,5 x 42,5 3,8 x 2,5 2,4
40 x 50 2,8 x 3,8 2,4
50 x 60 2,8 x 3,8 2,4
50 x 75 3,8 x 3,8 2,4

SCREEN FRAMES

Quantity

Yarns

Thickness

Yarn

Opening

Mesh

Surface

Free

Thickness

Fabric

Volume

Ink

per cm
per inch

µ

µ

%

µ

cm3/m2
10 25 300 716 49 468 232
11 28 250 660 52 470 247
12 30 250 600 49 490 244
15 38 200 468 49 360 176
21 53 140 339 50 270 135
24 61 140 276 44 220 96
27 69 120 248 45 210 95
32 81 100 213 46 180 83
40 102 80 169 46 160 73
43 110 80 150 42 140 59
49 123 70 136 43 135 58
51 130 70 125 41 140 57
54 137 64 121 42 115 49
54 137 70 115 38 135 52
58 148 64 107 39 120 46
58 148 70 101 34 140 48
61 156 64 98 36 115 42
61 156 70 92 32 140 45
68 172 55 92 39 91 35
68 172 64 83 31 120 38
71 180 55 86 37 105 39
73 185 55 82 35 100 35
77 195 55 75 33 105 34
81 206 55 68 30 105 32
90 230 48 62 31 78 24
103 255 40 59 35 60 21
110 280 35 55 37 51 19
110 280 40 50 30 60 18
120 305 35 48 33 55 18
120 305 40 43 26 61 16
130 330 35 41 29 58 16
140 355 35 36 25 59 15
150 390 35 30 21 65 13
165 420 33 27 20 60 12
180 460 30 25 20 55 11
