Sublimation Socks - Coolmax Cotton Touch & Jigs
Sublimation Socks - Coolmax Cotton Touch & Jigs

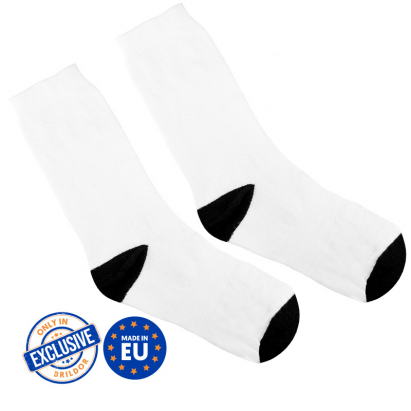

Customisable mid-calf socks for sublimation. Made from highly breathable Coolmax knitted fabric, a blend of polyester (65%), polyamide (15%), cotton (15%) and elastane (5%).
- Elastic support bands at the top edge and instep
- Simplifies the sublimation process using 3mm thick MDF wooden moulds
Related Products
More information about sublimable Coolmax socks and their moulds
INDEX
> Recommended sublimation instructions and parameters
DESCRIPTION
- Highly breathable and moisture-resistant socks thanks to their Coolmax fabric
- Quick-drying by wicking sweat from the foot to the outer layer of the sock
- Lightweight and flexible fabric with a pleasant cotton-like feel
- White in colour with black heel and toe
- Mould made of MDF (medium-density fibreboard) with rounded edges. Used as a jig or template to facilitate the complete customisation process
- They can also be customised using other techniques such as embroidery, DTF, DTG, rhinestones, transfer paper or heat transfer vinyl
THINGS TO KEEP IN MIND
- The socks are fully sublimable, but the colours of the design will not be visible on the black areas (heel and toe)
- Some wooden moulds have an additional paper layer to protect their surface. This can be easily removed
CUSTOMISATION TEMPLATE
To view the template, open the PDF file using Photoshop. Remember to activate the layers:
Sublimable Coolmax socks template (.pdf - 0.02MB)
MEASUREMENTS
| SOCKS |
|||
| Reference | 048206 | 048207 | 048208 |
| Size | 32-36 (M) | 37-41 (L) | 42-46 (XL) |
| Sole (cm) |
7.5 x 15.5 | 7.5 x 16.5 | 8 x 17.5 |
| Measurements (cm) |
8.5 x 31 | 8.5 x 35 | 8.5 x 36 |
| Leg (cm) |
7.5 x 15.5 | 7.5 x 18 | 7.5 x 18 |
| Leg edge (cm) |
7 x 2 | 7 x 2 | 7 x 2.5 |
| Customisable area (cm per side) |
7.5 x 28 | 7.5 x 33 | 8 x 33 |
| MOULDS | |
| Measurements (cm) |
9 x 45 |
| Thickness (mm) |
3 |
WASHING RECOMMENDATIONS
- Wash inside out at a maximum temperature of 40 ºC
- Avoid using bleach
RECOMMENDED SUBLIMATION INSTRUCTIONS AND PARAMETERS
- Print the design in mirror mode
- Heat the press to 180 ºC
- Insert the mould into the socks
- Place the socks on the printed side of the paper and secure them with heat-resistant tape
- Put protective paper on the lower plate of the press and place the socks on top
- Cover them with protective paper
- Press at medium-high pressure for 45 seconds
- With the help of a protective glove, remove the freshly printed socks from one side
- Carefully remove the heat-resistant tape and paper, leaving the mould inside
- Move the sock edge upwards so that the white edge is not visible when printing the other side
- Repeat the same process to print the other side of the socks
- Remove the moulds from the socks while hot and allow them to cool
| Ref. | 943735 |
|---|---|
| Print area (mm) | 75 x 280 (Ref. 048206) - 75 x 330 (Ref. 048206) - 80 x 330 (Ref. 048206) |
| Colour | White, Black |
| Size | L, M, XL |
| Surface material | Tissue |
| Items | Socks |
| Composition | Polyester |
| Marking techniques | Dye sublimation, Transfer, HTV, Embroidery |
