Sublimation Glass Bottle with softshell sleeve
Sublimation Glass Bottle with softshell sleeve

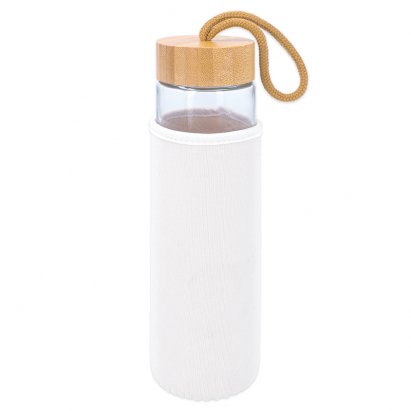

530 ml glass bottle with a customisable sleeve for sublimation. Non-slip, insulating, and water-repellent fabric.
- White polyester sleeve suitable for sublimation over the entire surface
- Bamboo wood screw cap with carrying handle
- Customisable area (per side): 17 x 10 cm
Please, give us an estimate of the quantity you need:
Sending stock request...
Error
Completed!
Related Products
More information about the glass bottle with softshell sleeve for sublimation
INDEX
> Recommended sublimation instructions and parameters
DESCRIPTION
- Ideal for carrying water and other drinks: to the office, on trips, to school, excursions, the beach, gym, etc.
- Eco-friendly and reusable glass bottle. A solution to avoid drinking from plastic and to reduce the use of disposable bottles
- Cylindrical body made of thick glass, highly resistant to impacts and high temperatures. The material does not transfer flavour to the drink
- Padded, elastic, neoprene-like sleeve with thick stitching. Outer fabric made of polyester with water-repellent DWR treatment, causing water to bead and run off
- Leak-proof screw cap that completely seals the glass bottle and prevents drips
- Wide mouth for easy cleaning
- You can personalise the sleeve by combining sublimation with other techniques such as heat transfer vinyl, transfer or screen printing
- Supplied in a kraft cardboard presentation box
THINGS TO KEEP IN MIND
- For a full print, we recommend sublimating each side separately in two presses
- It is recommended to wash the cap by hand
MEASUREMENTS
| Capacity (oz ≈ ml) | 18 ≈ 530 |
| Bottle (cm) | Ø6.2 x 22.2 |
| Bottle mouth (cm) | Ø4.9 x 2 |
| Cap (cm) | Ø6.2 x 2.5 |
| Carrying handle (cm) | 11 x 0.5 |
| Sleeve (cm) | 10 x 18.5 |
| Personalisation area (per side) (cm) | 10 x 17 |
| Full print area (cm) | 22 x 17 |
| Presentation box (cm) | 7.5 x 24 x 7.5 |
| Weight (g) | 352 |
RECOMMENDED SUBLIMATION INSTRUCTIONS AND PARAMETERS
Parameters are for guidance only. It is recommended to carry out preliminary tests and make the necessary adjustments before starting production.
WITH HEAT PRESS
- Print the design in mirror mode
- Heat the press to 180 ºC
- Place the sleeve flat on the press base. Insert protective paper inside the sleeve to avoid staining the other side
- Place the printed design on the sleeve. Secure it with heat-resistant tape to prevent movement
- Close the press and sublimate at medium pressure for 60 - 70 seconds
- Open the press and remove the sublimated sleeve using a protective glove
- Carefully remove the printed paper
- Repeat the process for the other side
WITH SUBLIMATION OVEN
- Print the design in mirror mode
- Preheat the oven to 180 ºC
- Remove the bottle cap
- Insert the bottle into the sleeve and place the printed design around the sleeve. Secure it with heat-resistant tape
- Place the bottle with the sleeve inside a shrink bag and use a heat gun to shrink it, avoiding wrinkles
- Sublimate for 8 minutes
- Using a protective glove, remove the shrink bag
- Carefully remove the paper from the sleeve and take the sleeve off the bottle
| Ref. | 040517 |
|---|---|
| Print area (mm) | 170 x 100 |
| Colour | White |
| Surface material | Glass, Wood, Tissue |
| Items | Bottles |
| Composition | Polyester |
| Marking techniques | Dye sublimation, Transfer, Screen printing, HTV |
| Height (cm) | 24.0 |
| Width (cm) | 7.5 |
| Length (cm) | 7.5 |
| Gross weight (kg) | 396 |
