https://www.brildor.com/en/sublimable-stainless-steel-thermo-jugs54340Sublimable Stainless Steel Thermo Jugs<p><a name="know-more"></a></p>
<h2>More information about the Sublimable Stainless Steel Thermo Jugs</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more7">Template for customisation</a></p>
<p>> <a href="#know-more3">Measurements</a></p>
<p>> <a href="#know-more4">Usage and washing recommendations</a></p>
<p>> <a href="#know-more5">Recommended sublimation instructions and parameters</a></p>
<p>> <a href="#know-more6">Related posts</a></p>
<p> </p>
<p><a name="know-more1"></a></p>

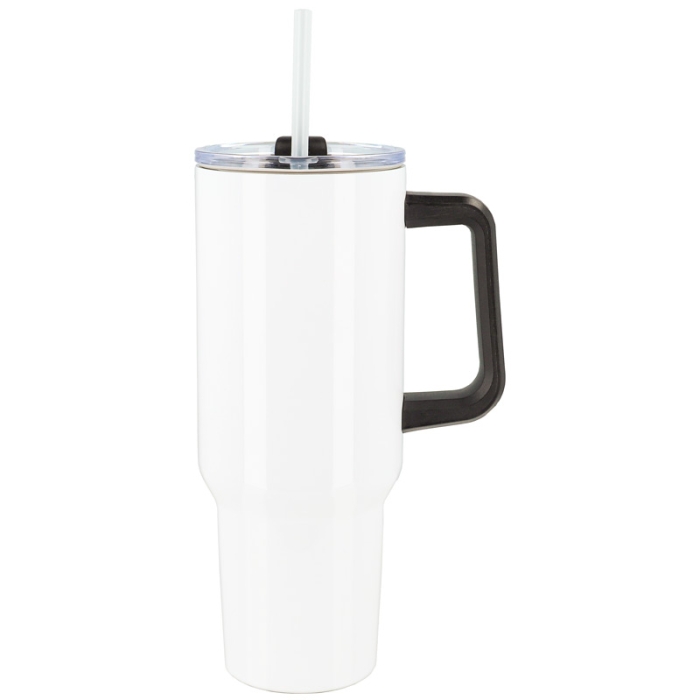

<p><strong>DESCRIPTION</strong></p>
<ul>
<li>Stanley-style thermo jugs, suitable for food consumption. They do not transfer flavour to the drink</li>
<li>Suitable for full sublimation using an oven or partial with a mug press</li>
<li>Stainless steel interior with double wall to maintain the liquid's temperature for longer</li>
<li>Transparent screw cap with anti-leak silicone seal and two drinking holes (<strong>BPA free</strong>):
<ul>
<li>Directly: with black flip-top tab for quick open and close</li>
<li>With straw: with cross silicone valve (push-pull type) for straw insertion</li>
</ul>
</li>
<li>Wide mouth for easy filling and cleaning</li>
<li>Large, ergonomic handle for comfortable transport</li>
<li>Narrow base designed to fit perfectly in a car cup holder</li>
<li>Durable and reusable for daily use</li>
<li>Delivered in an individual white box</li>
<li>Can also be customised using other techniques such as <span class="azul-brildor-negrita">screen printing</span>, <span class="azul-brildor-negrita">adhesive vinyl</span>, <span class="azul-brildor-negrita">DTF</span>, <span class="azul-brildor-negrita">UV printing</span>...</li>
</ul>
<p> </p>
<p><a name="know-more2"></a></p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>The straw hole does not seal hermetically. The jug should be kept in the upright position</li>
<li>For full customisation with a sublimation oven, the handle must be removed from the body. It unscrews easily</li>
</ul>
<p> </p>
<p><a name="know-more7"></a></p>
<p><strong>TEMPLATE FOR CUSTOMISATION</strong></p>
<p>To view the template layers, open the PDF file using Photoshop. Remember to activate them:</p>
<p><a href="https://tinyurl.com/ym7alzbn" target="_blank" rel="noopener">40 oz Thermo Jug Template</a> (.pdf - 1.5MB)</p>
<p> </p>
<p><a name="know-more3"></a></p>
<p><strong>MEASUREMENTS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Capacity (ml ≈ oz)</strong></td>
<td><span class="azul-negrita">1200</span> ≈ <span class="azul-negrita">40</span></td>
</tr>
<tr>
<td><strong>Printing area (cm)</strong></td>
<td><span class="azul-negrita">31.5 x 25</span></td>
</tr>
<tr>
<td><strong>Body height (cm)</strong></td>
<td><span class="azul-negrita">25</span></td>
</tr>
<tr>
<td><strong>Mouth (cm)</strong></td>
<td><span class="azul-negrita">Ø9.8</span></td>
</tr>
<tr>
<td><strong>Base (cm)</strong></td>
<td><span class="azul-negrita">Ø7.5</span></td>
</tr>
<tr>
<td><strong>Cap (cm)</strong></td>
<td><span class="azul-negrita">Ø10 x 2.2</span></td>
</tr>
<tr>
<td><strong>Handle (cm)</strong></td>
<td><span class="azul-negrita">2.9 x 11.5</span></td>
</tr>
<tr>
<td><strong>Straw (cm)</strong></td>
<td><span class="azul-negrita">Ø0.8 x 30.2</span></td>
</tr>
<tr>
<td><strong>Presentation box (cm)</strong></td>
<td><span class="azul-negrita">15.3 x 29.3 x 10.5</span></td>
</tr>
<tr>
<td><strong>Weight (g)</strong></td>
<td><span class="azul-negrita">608</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more4"></a></p>
<p><strong>USAGE AND WASHING RECOMMENDATIONS</strong></p>
<ul>
<li>Hand wash</li>
<li>Do not microwave</li>
</ul>
<p> </p>
<p><a name="know-more5"></a></p>
<p><strong>RECOMMENDED SUBLIMATION INSTRUCTIONS AND PARAMETERS</strong></p>
<p>Parameters indicated are <strong>for guidance</strong>. It is recommended to conduct preliminary tests to make necessary adjustments before starting production.</p>
<p><strong>WITH MUG PRESS</strong></p>
<ul>
<li>Print the design in <strong>mirror mode</strong></li>
<li>Heat the press to <span class="azul-negrita">180 ºC</span></li>
<li>Remove the cap</li>
<li>Place the printed design around the jug and secure it with thermal adhesive tape</li>
<li>Place the jug in the press</li>
<li>Close the press with <strong>medium pressure</strong> for <span class="azul-negrita">80-90 seconds</span></li>
<li>Using a protective glove, remove the freshly sublimated jug</li>
<li>Carefully remove the paper</li>
</ul>
<p><strong>WITH SUBLIMATION OVEN</strong></p>
<ul>
<li>Print the design in <strong>mirror mode</strong></li>
<li>Heat the oven to <span class="azul-negrita">180-200 ºC</span></li>
<li>Remove the cap and handle from the jug</li>
<li>Place the printed side of the paper around the jug and secure it with thermal adhesive tape</li>
<li>Place the jug inside a shrink wrap or silicone sleeve and use a heat gun to adhere the wrap to the printed paper</li>
<li>Sublimate in the oven for <span class="azul-negrita">6-7 minutes</span></li>
<li>Using a protective glove, remove the silicone sleeve or shrink wrap, as applicable</li>
<li>Carefully remove the wrap and paper from the jug</li>
</ul>
<p> </p>
<p><a name="know-more6"></a></p>
<p><strong>RELATED POSTS</strong></p>
<p><a href="https://www.brildor.com/blog/en/oven-sublimation-using-heat-shrink-bags/" target="_blank" rel="noopener">Shrink bags and sublimation oven to customise like a pro</a></p>https://www.brildor.com/media/catalog/product/j/a/jarras-termo-acero-inox-sublimable-d1_1.jpg9.95instock09.95000https://www.brildor.com/media/catalog/product/j/a/jarras-termo-acero-inox-sublimable-d1_1.jpg164932039249451516935391554117/Blanks/Blanks/Water Bottles & Flasks/Blanks/Water Bottles & Flasks/Thermos Flasks/Blanks/Beer Steins & Tumblers/Blanks/Beer Steins & Tumblers/Beer Steins/Blanks/Summer/Blanks/Summer/Thermos, Drums, and Jugs2025-07-08T13:42:59+0000
