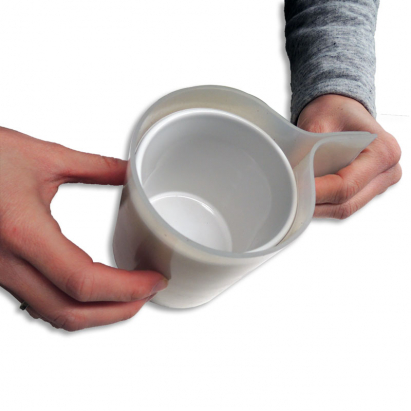

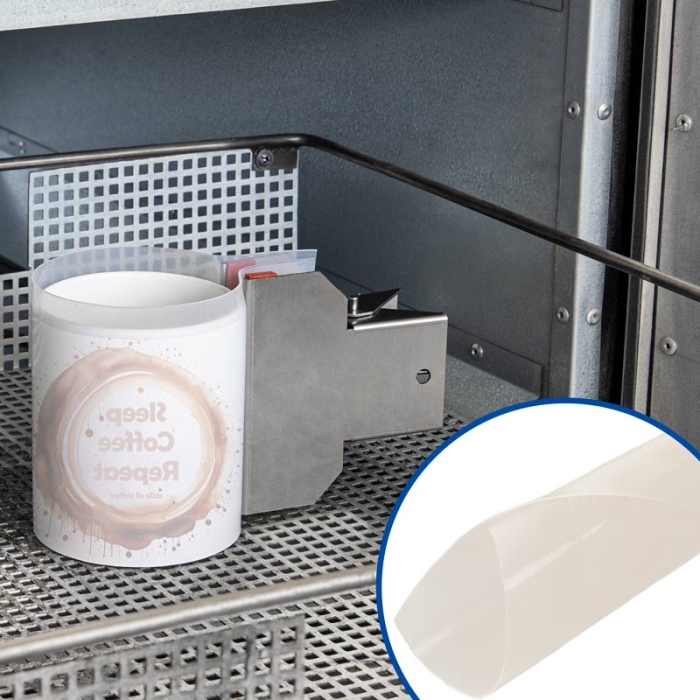

Silicone films to personalise rigid objects with a sublimation oven. Alternative to clamps: cover the object with the printed design with the foil and place it in the oven.
Can be cut to size
Reusable
Can be attached to the object with clamps or hot-melt tape
Perfect for sublimating objects with non-standard shapes such as thermoses, vases, bowls, piggy banks, vases...
Useful when the irregular shape of the object is not easy to personalise with a transfer plate
Made of translucent white silicone. Allows you to see if the paper has been well fixed to the object
Turns the film into a clamp by securing it with a clamp for more pressure
Can be easily cut with scissors, cutter, guillotine... to the desired size
THINGS TO KEEP IN MIND
The thicker film is stronger and more durable, but less adaptable to the item to be sublimated
For flat surfaces we recommend the use of 1 mm foils, for curved surfaces it is better to use 0.5 mm foils
CLAMPS
They fit the foil perfectly to the object, guaranteeing uniform embossing
The special handle grippers have a greater depth. Facilitates the insertion of the handles of objects and allows the customisable area to be enlarged
The clamp with Ref. 032403 has a silicone pad inside. It avoids marks on the surface when pressing on parts of the object such as handles
DIMENSIONS
Reference no.
055575
032418
Foil (cm)
40 x 50
40 x 50
Thickness (mm)
0.5
1
MEASUREMENTS OF THE CLAMPS
Reference
Length of clamping (mm)
Distance handle-cup (mm)
Aperture max (mm)
032403
100
55
60
049286
130
50
32
051211
145
30
40
053892
160
40
50
054588
180
40
50
Additional Information
Ref.
