Heat Press Machines & platens - Brildor Economic - Manual

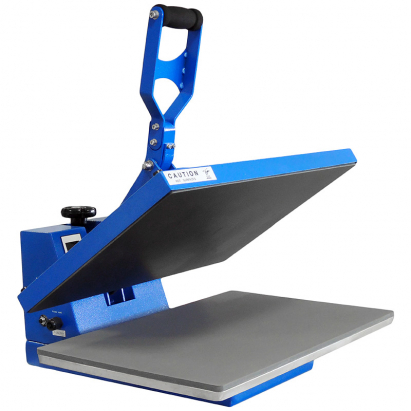

Manual heat presses, clam style, for the personalisation of flat surfaces. Cheap and easy to use, they are perfect for those who want to get started in the world of personalisation.
Strong metal structure.
Basic features for transferring heat under pressure with the least possible operational complexity.
Additional plates, as well as the adjustment knob replacement, can be purchased separately.
Lower platen size according to model: 38 x 38 cm - 40 x 50 cm - 40 x 60 cm
More information
More information about Brildor Economic manual heat press machines
Digital temperature and time controller in a vertical metal frame.
Strong metal arm that allows greater pressure to be applied to the object to print, homogeneously and with less effort.
Handle with an ergonomic shape, lined with rubber foam for greater user comfort.
Knob to adjust the pressure depending on the thickness of the surface to be printed.
Lower platen covered with a high-quality silicone pad that guarantees uniform printings.
The upper platen opens widely, which makes it easier and safer to operate.
The metal structure of the three models is identical, as well as their components: arm, adjusting knob, digital controller and power panel. Their only difference is the size of the platen.
These presses comply with the safety and quality standards stated in the CE Certificate for Brildor Economic Presses (ZHT-15, ZHT-20, ZHT-24) (.pdf - 387 kb).
Available here the Manual for Brildor Economic Heat Presses (.pdf -254 kb)
TECHNICAL DETAILS
Ref. 037672 Ref. 037673 Ref. 037674
Press type Manual/Clam
Manual/Clam
Manual/Clam
Platen type Fixed
Fixed
Fixed
Platen size 38 x 38 cm
40 x 50 cm
40 x 60 cm
Maximum thickness to press 1 cm
1 cm
1 cm
Pad thickness 1 cm
1 cm
1 cm
Opening angle 35º
35º
35º
Voltage 120V/220V
120V/220V
120V/220V
Controller GY-04N
GY-04N
GY-04N
Power 1.5kW/1.8kW
1.6kW/1.8kW
1.6kW/1.8kW
Timer 0-999 s
0-999 s
0-999 s
Temperature range 0-225ºC
0-225ºC
0-225ºC
Temperature accuracy ±5ºC
±5ºC
±5ºC
Dimensions 39 x 51 x 60 cm
51 x 51 x 60 cm
61 x 51 x 60 cm
Packaging 74 x 48 x 45 cm
72 x 61 x 45 cm
72 x 61 x 45 cm
Net weight 22.75 kg
31.05 kg
35.60 kg
Gross weight 25.42 kg
34.55 kg
41.89 kg
More Information
Ref.
925374
Brand
Brildor
Print area (cm)
38 x 38, 40 x 50, 40 x 60
Power (W)
1500 / 1800 - 1600 / 1800
Pressure regulation
Manual
Opening
Manual
Closing
Manual
