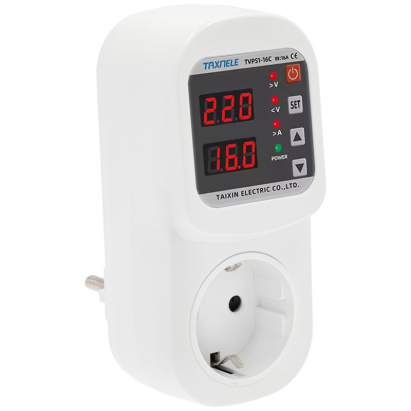

Voltage stabiliser to protect machinery from electrical current variations.
Suitable for equipment sensitive to voltage spikes and power drops: transfer presses, embroidery machines, printers...
- EU type plug
- Configurable voltage and current settings
More information
More information about the Digital Power Stabiliser
INDEX
> Description
> Things to keep in mind
> Precautions
> Technical specifications
> Instructions and recommended sublimation parameters
DESCRIPTION
- Provides continuous protection against voltage fluctuations, sudden blackouts, and power surges
- Made with fire-resistant PC, durable and impact-resistant
- Prevents damage from overvoltage, undervoltage, and overcurrent
- Protects connected equipment from short circuits, overheating, and fire
- Ensures that equipment operates optimally, without interruptions or failures due to voltage issues
- Regulates the input current and keeps it within a safe range for connected devices
- Child protection system prevents the danger of contact when inserting fingers or small objects
- CE certification ensures that these inks meet the technical requirements demanded in the European Union
THINGS TO KEEP IN MIND
- In case of overvoltage, undervoltage, or overcurrent, this product instantly shuts off electrical equipment to prevent burning
- Disconnects the power and automatically restores the connection once the voltage or current returns to normal
- If the current experiences unstable voltage or sudden blackouts and power-ons due to a weak connection or other faults, the stabiliser will disconnect the power
- When the unit is plugged in, the green protection indicator lights up to show it is capable of protecting the equipment
PRECAUTIONS
- Do not install this device during a thunderstorm
- For indoor use only
- Do not install this protector in a location where the temperature and/or humidity is high
- Do not use the product with aquarium equipment
TECHNICAL SPECIFICATIONS
| Input voltage |
AC 140-300 V |
| Overvoltage protection value |
230-300 V (default 270 V) |
| Undervoltage protection value |
140-210 V (default 170 V)
|
| Overcurrent protection value |
1-16 A (default 16 A)
|
| Recovery time |
1-500 s (default 30 s)
|
| Power-on delay time |
1-500 s (default 10 s) |
| Overvoltage recovery value |
225-295 V (default 265 V)
|
| Undervoltage recovery value |
145-215 V (default 175 V) |
| Overcurrent recovery value |
0.5-15.5 A
|
| Response time |
0.1-30 s (default 1 s)
|
| Power consumption |
< 2 W
|
| Electrical and mechanical lifespan |
100000 cycles |
DIMENSIONS
|
| Dimensions (cm) |
12.2 x 8.6 x 5.5 |
| Packaging (cm) |
13.3 x 9.8 x 6.2 |
| Net weight (kg) |
0.162 |
| Gross weight (kg) |
0.21 |
