Compact and lightweight design: with integrated resistance in the casing. Ideal for small productions and for in-store personalisation in front of the customer
Versatile: suitable for any personalisation technique requiring heat transfer such as sublimation, transfer...
Automatic pressure adjustment: adapts to the object's diameter with the appropriate pressure without manual adjustment
Touch screen panel: easy configuration to adjust time and temperature, which can be switched from ºC to ºF by pressing the button for 3 seconds
Automatic opening: opens when pressing is complete. Emits an acoustic signal
Repeats set adjustments: saves the last parameters for the next pressing
Emergency stop: immediate stop with Stop button
Automatic shutdown: after 30 min of inactivity
CE Certification: complies with the European Union's technical standards
Warranty: 3 years for manufacturing defects from the invoice date
THINGS TO KEEP IN MIND
It has a closed casing structure that prevents manipulation. Therefore, it does not have replacement resistances
To personalise mugs, you should always press 2 at a time. We recommend performing preliminary tests and following these guidelines:
Increase the pressing time between 240 and 260 seconds
Leave a space between both mugs and place them equidistant from the outer edge
If the object is smaller than the resistance, use silicone sheets to increase its diameter. You can find them in Related Products
To personalise the entire surface, perform two pressings. After the first, slightly rotate the object without removing it from the press and add 30 seconds more at the same temperature
RESISTANCE MEASUREMENTS
Measurements are indicative as provided by the manufacturer. It is recommended to conduct tests with the resistance before starting production.
https://www.brildor.com/en/automatic-bottle-press-craft-express53543Automatic Bottle Press Craft Express<p><a name="know-more"></a></p>
<h2>More information about the Automatic Bottle Press Craft Express</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Features</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more8">User manual</a></p>
<p>> <a href="#know-more4">Tips and advice</a></p>
<p>> <a href="#know-more3">Resistance measurements</a></p>
<p>> <a href="#know-more5">Technical data</a></p>
<p>> <a href="#know-more7">Related posts</a></p>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>FEATURES</strong></p>
<ul>
<li><strong>Compact and lightweight design</strong>: with integrated resistance in the casing. Ideal for small productions and for in-store personalisation in front of the customer</li>
<li><strong>Versatile</strong>: suitable for any personalisation technique requiring heat transfer such as <span class="azul-brildor-negrita">sublimation</span>, <span class="azul-brildor-negrita">transfer</span>...</li>
<li><strong>Automatic pressure adjustment</strong>: adapts to the object's diameter with the appropriate pressure without manual adjustment</li>
<li><strong>Touch screen panel</strong>: easy configuration to adjust time and temperature, which can be switched from <span class="azul-negrita">ºC</span> to <span class="azul-negrita">ºF</span> by pressing the button for <span class="azul-negrita">3 seconds</span></li>
<li><strong>Automatic opening:</strong> opens when pressing is complete. Emits an acoustic signal</li>
<li><strong>Repeats set adjustments: </strong>saves the last parameters for the next pressing</li>
<li><strong>Emergency stop:</strong> immediate stop with Stop button</li>
<li><strong>Automatic shutdown:</strong> after <span class="azul-negrita">30 min</span> of inactivity</li>
<li><strong>CE Certification</strong>: complies with the European Union's technical standards</li>
<li><strong>Warranty: </strong>3 years for manufacturing defects from the invoice date</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>It has a closed casing structure that prevents manipulation. Therefore, it does not have replacement resistances</li>
<li>To personalise mugs, you should <strong>always press 2 at a time</strong>. We recommend performing preliminary tests and following these guidelines:
<ul>
<li>Increase the pressing time between <span class="azul-negrita">240</span> and <span class="azul-negrita">260 seconds</span></li>
<li>Leave a space between both mugs and place them equidistant from the outer edge</li>
<li>Ensure the handles are properly positioned</li>
<li>Find more information in <a href="https://youtu.be/-WhAuufBZwE?si=zzKvrop9RtJDotW-" target="_blank" rel="noopener">this video</a></li>
</ul>
</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more8"></a> </p>
<p><strong>USER MANUAL</strong></p>
<p><a href="https://tinyurl.com/29h7fgbh" target="_blank" rel="noopener">Craft Express Bottle Press (Spanish) (.pdf - 0.6 MB)</a></p>
<p><a href="https://tinyurl.com/293gp8vx" target="_blank" rel="noopener">Craft Express Bottle Press (English) (.pdf - 0.8 MB)</a></p>
<p> </p>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>TIPS AND ADVICE</strong></p>
<ul>
<li>If the object is smaller than the resistance, use silicone sheets to increase its diameter. You can find them in <strong>Related Products</strong></li>
<li>To personalise the entire surface, perform two pressings. After the first, slightly rotate the object without removing it from the press and add <span class="azul-negrita">30 seconds</span> more at the same temperature</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more3"></a> </p>

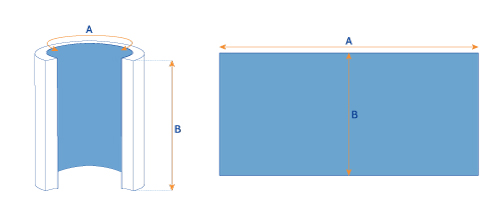

<p><strong>RESISTANCE MEASUREMENTS</strong></p>
<p>Measurements are <strong>indicative</strong> as provided by the manufacturer. It is recommended to conduct tests with the resistance before starting production.</p>
<p><img src="{{media url="wysiwyg/Plancha/medidas-resistencia-plancha-automatica-loklik-d1.jpg"}}" alt="Resistance measurements" width="500" height="217"></p>
<table>
<tbody>
<tr>
<td>
<p><strong>Shape</strong><strong><br></strong></p>
</td>
<td style="text-align: center;">
<p><strong>A <br></strong><strong>(cm)</strong><strong><br></strong></p>
</td>
<td style="text-align: center;">
<p><strong>B <br></strong><strong>(cm)</strong><strong><br></strong></p>
</td>
<td style="text-align: center;"><strong>Max opening</strong><br><strong>(cm)</strong></td>
<td style="text-align: center;"><strong>Min opening</strong><br><strong>(cm)</strong></td>
</tr>
<tr>
<td>
<p>Cylindrical</p>
</td>
<td style="text-align: center;">
<p><span class="azul-negrita">21.5</span></p>
</td>
<td style="text-align: center;">
<p><span class="azul-negrita"><strong>27</strong></span></p>
</td>
<td style="text-align: center;">
<p><span class="azul-negrita"><strong>Ø8.8</strong></span></p>
</td>
<td style="text-align: center;">
<p><span class="azul-negrita"><strong>Ø7.2</strong></span></p>
</td>
</tr>
</tbody>
</table>
<p class="enlace"> </p>
<p class="enlace"><a id="know-more5"></a> </p>
<p><strong>TECHNICAL DATA</strong></p>
<table>
<tbody>
<tr>
<td><strong>Model</strong></td>
<td>Autopress Max Drinkware Edition</td>
</tr>
<tr>
<td><strong>Type of press</strong></td>
<td>Automatic/Bottles</td>
</tr>
<tr>
<td><strong>Opening/Closing</strong></td>
<td>Automatic</td>
</tr>
<tr>
<td><strong>Controller</strong></td>
<td>Digital screen</td>
</tr>
<tr>
<td><strong>Voltage (V | HZ)</strong></td>
<td><span class="azul-negrita">230 </span>| <span class="azul-negrita">50</span></td>
</tr>
<tr>
<td><strong>Power (W)</strong></td>
<td><span class="azul-negrita">550</span></td>
</tr>
<tr>
<td><strong>Temperature (ºC | °F)</strong></td>
<td><span class="azul-negrita">40-200 </span>| <span class="azul-negrita">104-392 <br></span></td>
</tr>
<tr>
<td><strong>Time (s)</strong></td>
<td><span class="azul-negrita">1-999</span></td>
</tr>
<tr>
<td><strong>Cable length (cm)</strong></td>
<td><span class="azul-negrita">150</span></td>
</tr>
<tr>
<td><strong>Compatible diameter (cm)</strong></td>
<td><span class="azul-negrita">Ø7.2-Ø8.8</span></td>
</tr>
<tr>
<td><strong>Max compatible length (cm)</strong></td>
<td><span class="azul-negrita">24</span></td>
</tr>
<tr>
<td><strong>Press size (cm)</strong></td>
<td><span class="azul-negrita">29.5 x 22 x 16</span></td>
</tr>
<tr>
<td><strong>Packaging (cm)</strong></td>
<td><span class="azul-negrita">36.5 x 29 x 25</span></td>
</tr>
<tr>
<td><strong>Net weight (g)</strong></td>
<td><span class="azul-negrita">4202</span></td>
</tr>
<tr>
<td><strong>Gross weight (g)</strong></td>
<td><span class="azul-negrita">5497</span></td>
</tr>
</tbody>
</table>
<p class="enlace"> </p>
<p class="enlace"><a id="know-more7"></a> </p>
<p><strong>RELATED POSTS</strong></p>
<p><a href="https://www.brildor.com/blog/es/que-plancha-transfer-debo-comprar/#que_son_las_planchas_transfer_" target="_blank" rel="noopener">Which transfer press should I buy?</a></p>https://www.brildor.com/media/catalog/product/p/l/plancha-autom_tica-botellas-craft-express-d1_1.jpg149.99instock0149.99000https://www.brildor.com/media/catalog/product/p/l/plancha-autom_tica-botellas-craft-express-d1_1.jpg501265013851182516935182052876/Heat Presses/Heat Presses/Heat Presses & Ovens/Mug Heat Presses/Heat Presses/Heat Presses & Ovens/Offers2025-02-10T12:16:05+0000
