€169.00 VAT not included / Each Unit

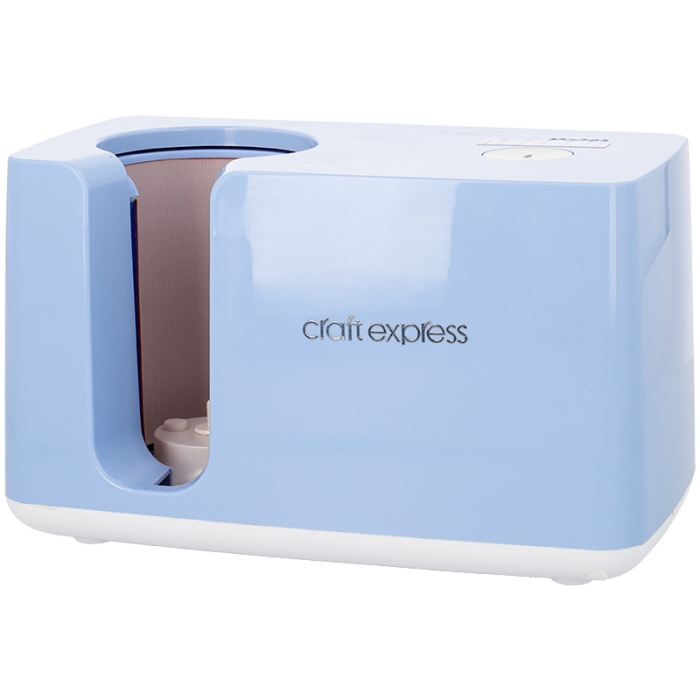

Pro Easy Auto Mug Press

Ref.
051201

Automatic heat press to print mugs from 11 oz to 15 oz by heat transfer.

More information

Availability:
Immediate: more than 5 units
Our availability is not enough?
Let us know how much you need
I WANT MORE
€169.00 VAT not included / Each Unit
VAT not included
Reward Points
As a Premium Brildor Member, for each unit you buy, you will accumulate {{POINTS}} to redeem on your next order. Discover the Brildor Loyalty Program. For each unit you buy, you will accumulate {{POINTS}} to redeem on your next order. Discover the Brildor Loyalty Program.



More information about the Pro Easy Auto Mug Press

INDEX

> Description

> Things to keep in mind

> User manual

> How to set the temperature

> How to set the time

> Silicone mug wraps

> Instructions for use

> Technical details





DESCRIPTION

  • Suitable for any heat transfer personalisation technique: sublimation, transfer, self-adhesive vinyl and more
  • Compact and lightweight machine with integrated heating element in the housing
  • Personalises objects between 8.1 y 8.6 cm cm in diameter
  • Reaches the desired temperature quickly
  • Adjustable temperature and time with a single button. Check temperature and time settings
  • Once you insert the mug, the press closes automatically
  • Automatic pressure adjustment
  • Five LED indicator lights
  • CE marking in accordance with European Union regulations





THINGS TO KEEP IN MIND

  • Not suitable for personalising plastic mugs
  • If the mug is smaller than the diameter of the heating element, you can use the silicone mug wraps available in Related Products. See below how to use them
  • You can press the button to open the press in case of emergency





USER MANUAL

User manual Pro Easy Auto Heat Press (.pdf - 0.60 MB)





HOW TO SET THE TEMPERATURE

If the edges of the mug look yellow or burnt after pressing, reduce the temperature. If the design looks faded, turn it up.

The press has preset temperatures. The default temperature setting is 190°C which you can change as follows:

  • Turn the machine off or in standby mode
  • Long press the power button for 6 seconds
  • Release the button as the indicator light blinks in orange indicating the temperature setting mode
  • The five LED lights indicate different temperatures. Press once to choose
  • Wait 5 seconds to auto-save and the machine will exit the setting mode

Ajustes de temperatura Easy Auto Mug Press





HOW TO SET THE TIME

The press has preset times. The default time setting is 80 seconds which you can change as follows:

  • Turn the machine off or in standby mode
  • Long press the power button for 10 seconds
  • Release the button as the indicator light blinks in green indicating the time setting mode
  • The five LED lights indicate different times. Press once to choose
  • Wait 5 seconds to auto-save and the machine will exit the setting mode

Ajustes de tiempo Easy Auto Mug Press





SILICONE MUG WRAPS

25 x 12 cm in 3 thicknesses to choose from depending on the diameter of the object. Information provided by the supplier as a guideline:

Wrap thickness (mm) Object diameter (cm)
1.56 7.7 - 8
3.4 7.4 - 7.6
4.3 7.1 - 7.4





INSTRUCTIONS FOR USE

  1. Plug the press and turn it on by pressing the button
  2. Set the desired temperature and time settings
  3. Insert the mug when the orange light changes to green
  4. Once inserted, the sensor detects the mug and closes automatically
  5. The first light blinking white indicates the machine is still pressing
  6. The transfer is complete when all 5 indicator lights illuminate and you hear a beep
  7. The press will open automatically after the pressing time is up
  8. Take out the personalised mug and leave it to cool down
  9. Hold press the button for 3 seconds to turn it off





TECHNICAL DETAILS

Press type Automatic / Mugs
Voltage (V | Hz) 220 | 50
Power (W) 280
Mug diameter (cm) Ø8.1 - Ø8.6
Mug capacity (oz) 11-15
Heating element height (cm) 12.7
Press dimensions (cm) 27 x 14.5 x 16.8
Packaging (cm) 34.5 x 21 x 22.5
Net weight (kg) 2.35
Gross weight (kg) 2.83



More Information
Ref. 051201
Net Weight (kg) 2.35
Gross Weight (kg) 2.35
Billable Weight (kg) 2.8380
Brand Mug
Power (W) 280
Pressure regulation Automatic
Opening Automatic
Closing Automatic
