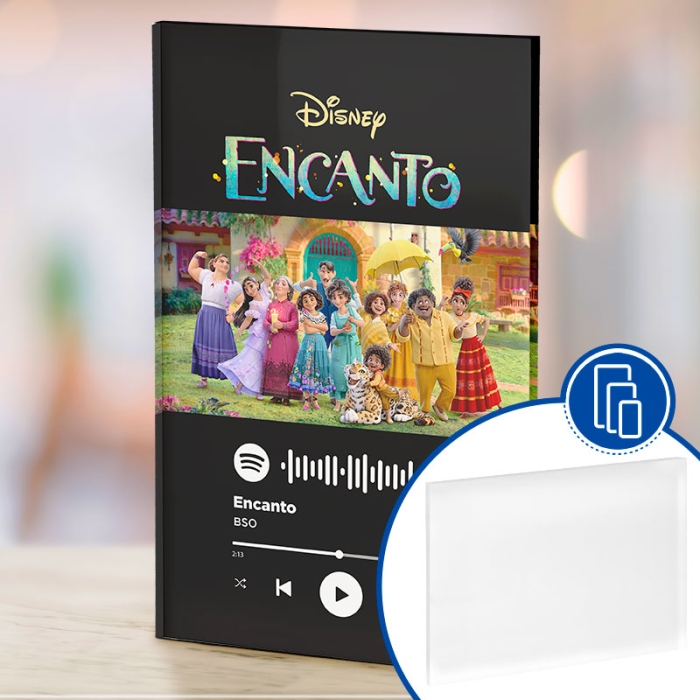

Tough acrylic or methacrylate (PMMA) plastic panels. Similar to glass
White reverse side suitable for sublimation. Transparent reverse side, not sublimatable
Sublimated image shows through the transparent side as if it has volume, creating a three-dimensional effect
Smooth surface with glossy finish on the front and matt finish on the reverse side
Rounded corners with 2 mm radius
Suitable for laser cutting and engraving, PVC-free. Can also be CNC cut
Perfect for creating customisable items such as coasters, key rings, magnets, ornaments...
Useful as photographic prints, advertising posters, company identification signs...
With the exception of Ref. 041061 and 041062, all other photopanels are supplied in a reusable cardboard box
THINGS TO KEEP IN MIND
It is advisable to customise the photo panels with vertical transfer plates. This will guarantee homogeneous transfers over the entire surface
They are sublimated on the reverse side, the white side, in direct mode (not mirror)
Both sides are protected by a transparent plastic film that must be removed before sublimation
DIMENSIONS
References
053658
053657
053659
053661
053660
0491061
041062
Photopanel (cm | in)
9 x 12 4 x 5
10 x 15 4 x 6
13 x 18 5 x 7
15 x 15 6 x 6
15 x 20
6 x 8
27 x 40 11" x 16"
40 x 61 16" x 24"
Digital format
4:3
3:2
-
1:1
4:3
3:2
3:2
Thickness (mm)
5
5
5
5
5
5
5
Weight (g)
188
240
202
197
239
624
1366
SUBLIMATION TRANSFER APPLICATION
Parameters are given for guidance only. It is recommended to carry out preliminary tests in order to make the necessary adjustments before starting production.
Preheat the press to 190ºC
Place the printed paper (facing upwards) on the lower platen
Lay the acrylic sheet on the paper with the white side facing the print
Fix it with heat-resistant tape
Press for 70-110 seconds, medium-low pressure
Once sublimated, carefully remove the paper with the help of a protective glove

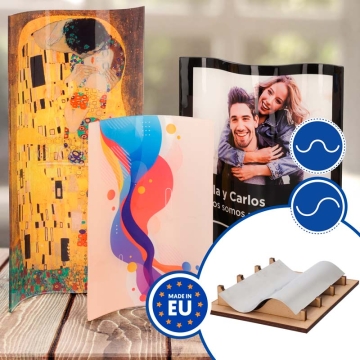

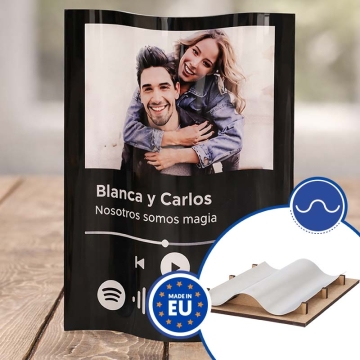

In case of shaping, place the hot sheet on the mould and press down using a protective glove so that the entire surface comes into contact with the mould
