More information about the T-shirt Badges - 60x64mm

INDEX

> Description

> Things to keep in mind

> How to customise badges with the Evolution and Pneumatic machines?

DESCRIPTION

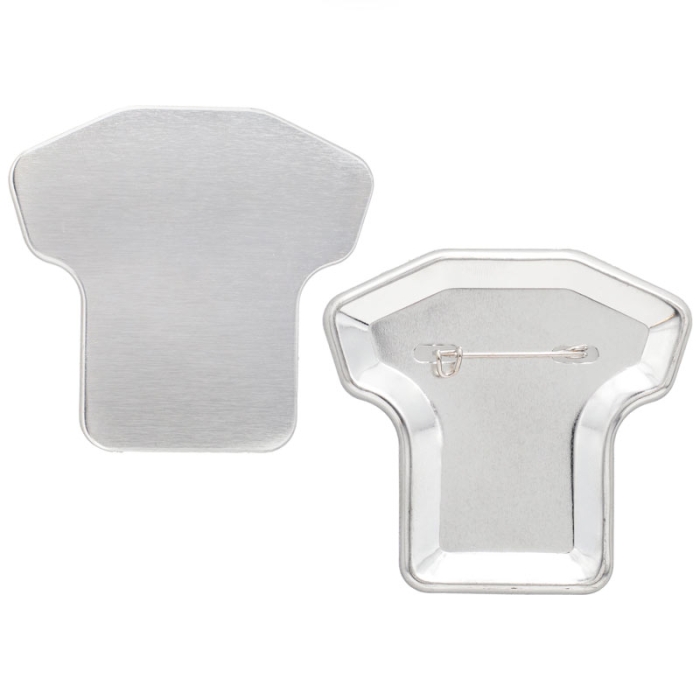

• 1 complete badge consists of:

  • 1 transparent protective sheet (acetate)
  • 1 front metal plate for placing the design
  • 1 back metal plate with pin
• Chrome steel mould of 60 x 64 mm, very durable + set of 20 badges

THINGS TO KEEP IN MIND

• Each bag of badges includes 10 or 100 complete badge sets (front + back + acetate)
• Both the badges and the mould are compatible with the Evolution and Pneumatic assembly machines

TEMPLATES FOR CUSTOMISATION

To view the layers of the template, open the PDF file using Photoshop. Remember to activate them:

Special shape badge templates (.pdf - 3.4 MB)

HOW TO CUSTOMISE T-SHIRT BADGES WITH THE EVOLUTION AND PNEUMATIC MACHINES?

STEP 1: Print the design

• Always use a template with a cutting and bleed guide
• Ensure the design has a margin for folding
• Print on 100–110 g/m² paper for optimal finish

STEP 2: Cut out the design

• Cut along the outermost edge of the template
• You can use scissors, a die cutter, or a plotter depending on the volume and precision required

STEP 3: Assemble the badge

• Install the t-shirt-shaped mould of 60 x 64 mm
• Part A of the mould:

  • Place the front plate (sharp edge facing down)
  • Position the cut-out design on top
  • Add the protective sheet
  • Rotate the base to align Part A with the top part
  • Press the lever and lift it back up
• Part B of the mould:
  • Place the back plate (sharp edge facing up). Align with the pin to ensure orientation
  • Rotate the base to align it with the top part
  • Press the lever again
  • Your badge is now ready
