For your safety, make sure that the plug is earthed
Turn off the machine when it is not in use and remove the plug from the power socket
Keep children away from the machine
Protect your hands with gloves when working with the machine
Do not attempt to press objects that could melt or burn
If the control panel shows"000" please contact technical support because there might be an error with the temperature sensor
INTERCHANGEABLE PLATENS
The standard lower platen is 40 x 50, other sizes are optional and sold separately
Easy fixing with springs
Made of cast aluminium
Silicone mat
Works with the XH-B2N (Ref. 038592), XH1.1 (Ref. 037677) and XH-3804D (Ref. 041297) heat presses
Adaptable to the XH-A4.1 (Ref. 035523 and Ref. 035524) and XH-B1.2 (Ref. 035521 and Ref. 035522) heat presses, although it requires unscrewing the adapter and screwing the platen to the press using the same screws
Important: the heating plate is not interchangeable unless it is faulty.
TECHNICAL DETAILS
Press model
Brildor XH-B2N 40x50cm
Press type
Automatic/Swing Away
Lower platen type
Slide-out
Operation
Electric engine
Controller
LCD digital display
Lower platen dimensions
40 x 50 cm
Max. material thickness
5 cm
Mat thickness
1 cm
Side opening angle
145º
Max. pressure
360 kg / 5 bar
Voltage
220 V / 240 V
Power
2000 W
Timer
0-999 s
Temperature range
0-240ºC / 0-464ºF
Temperature accuracy
2ºC
Maximum time for Sleep Mode activation
120 min
PRESS DIMENSIONS
Press closed in its initial position
42,5 x 83 x 57,5 cm
Press with the lower platen extended
42.5 x 123.5 x 57.5 cm
Press with the heat platen to the side
75.5 x 98.5 x 57.5 cm
Packaging
53 x 91 x 67 cm
Net weight
62 kg
Gross weight
68 kg
LOWER PLATEN SIZES
Reference no
Metallic platen
Platen + Mat
036186
12 x 12 x 2 cm
12 x 12 x 3 cm
036187
18 x 38 x 2 cm
18 x 38 x 3 cm
036188
12 x 45 x 2 cm
12 x 45 x 3 cm
036189
30 x 35 x 2 cm
30 x 35 x 3 cm
036190
14 x 34 x 2 cm
14 x 34 x 3 cm
> HOW TO ADJUST THE PRESSURE OF THIS PRESS?
Here is a video explaining how to adjust the pressure for pressing or curing with the HB2N heat press.
https://www.brildor.com/en/swing-away-heat-press-machine-with-slide-out-drawer-interchangeable-platens-brildor-xh-b2n-40x50cm-automatic27016Automatic Swing Away Heat Press with Slide Out Drawer & Interchangeable Platens - Brildor XH-B2N - 40x50cm<p class="enlace"><a id="know-more"></a> </p>

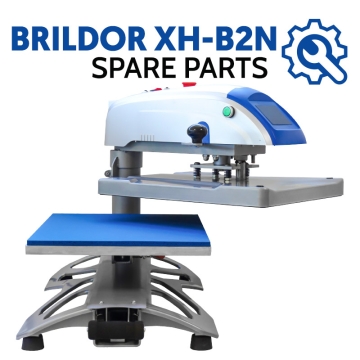

<h2>More information about the Brildor XH-B2N 40x50cm automatic swing-away heat press machine with slide-out drawer and interchangeable platens</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more2">User manual</a></p>
<p>> <a href="#know-more3">Safety precautions</a></p>
<p>> <a href="#know-more4">Interchangeable platens</a></p>
<p>> <a href="#know-more5">Technical details</a></p>
<p>> <a href="#know-more6">Press dimensions</a></p>
<p>> <a href="#know-more7">Lower platen sizes</a></p>
<p>> <a href="#know-more8"> How to adjust the pressure of this press?</a></p>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>DESCRIPTION<br></strong></p>
<ul>

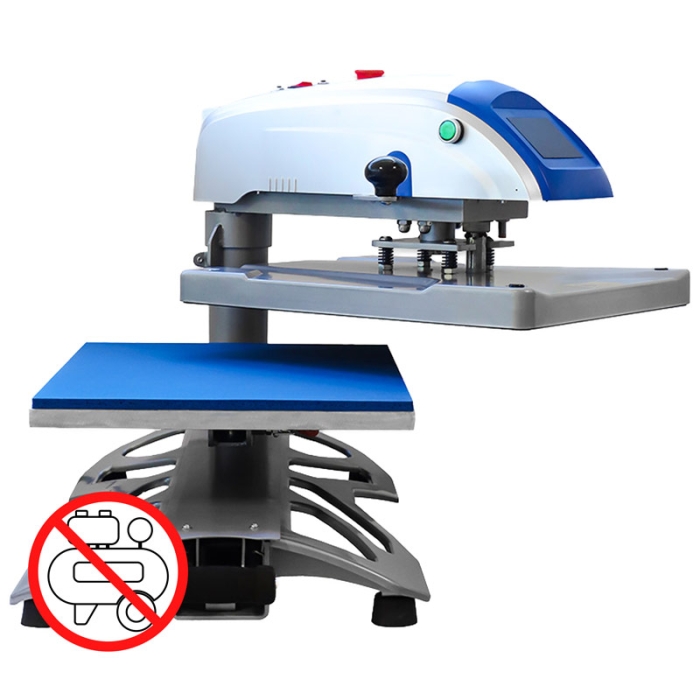

<li>Electronic heat press, no compressed air required</li>
<li>Safety operation via two side buttons</li>
<li>LCD panel to program and control time, temperature, the distance between plates and time of activation of the sleep mode</li>
<li>Counter for the number of pressings</li>
<li>Energy saving system with automatic shut-off for safety protection</li>
<li>Lower platen with silicone pad for even pressure and temperature distribution</li>
<li>Magnetic latch to prevent the lower platen from sliding during the transfer</li>
<li>Thermal sensor on heat plate to detect overheating</li>
<li>Sturdy frame with scratch-resistant coating</li>
<li>Certifications: EMC, MD, Rohs CE marking</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>USER MANUAL</strong></p>
<p><a title="User manual XH-B2N heat press (.pdf - 1 Mb)" href="https://www.brildor.com/media/upload/descargas/Instrucciones_de_uso_del_Controlador_Digital_ IT9300.pdf" target="_blank" rel="nofollow noopener">User manual XH-B2N heat press (.pdf - 1 Mb)</a></p>
<p> </p>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>SAFETY PRECAUTIONS</strong></p>
<ul>
<li>Check the voltage before switching on the press</li>
<li>For your safety, make sure that the plug is earthed</li>
<li>Turn off the machine when it is not in use and remove the plug from the power socket</li>
<li>Keep children away from the machine</li>
<li>Protect your hands with gloves when working with the machine</li>
<li>Do not attempt to press objects that could melt or burn</li>
<li>If the control panel shows"000" please contact technical support because there might be an error with the temperature sensor</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>INTERCHANGEABLE PLATENS<br></strong></p>
<ul>
<li>The standard lower platen is 40 x 50, other sizes are optional and sold separately</li>
<li>Easy fixing with springs</li>
<li>Made of cast aluminium</li>
<li>Silicone mat</li>
<li>Works with the XH-B2N (Ref. 038592), XH1.1 (Ref. 037677) and XH-3804D (Ref. 041297) heat presses</li>
<li>Adaptable to the XH-A4.1 (Ref. 035523 and Ref. 035524) and XH-B1.2 (Ref. 035521 and Ref. 035522) heat presses, although it requires unscrewing the adapter and screwing the platen to the press using the same screws</li>
</ul>
<p>Important: the heating plate is not interchangeable unless it is faulty.</p>
<p> </p>
<p class="enlace"><a id="know-more5"></a> </p>
<p><strong>TECHNICAL DETAILS <br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Press model</strong></td>
<td>Brildor XH-B2N <span class="azul-negrita">40x50cm</span></td>
</tr>
<tr>
<td><strong>Press type</strong></td>
<td>Automatic/Swing Away</td>
</tr>
<tr>
<td><strong>Lower platen type<br></strong></td>
<td>Slide-out</td>
</tr>
<tr>
<td><strong>Operation</strong></td>
<td>Electric engine</td>
</tr>
<tr>
<td><strong>Controller<br></strong></td>
<td>LCD digital display</td>
</tr>
<tr>
<td><strong>Lower platen dimensions</strong></td>
<td class="azul-negrita">40 x 50 cm</td>
</tr>
<tr>
<td><strong>Max. material thickness</strong></td>
<td class="azul-negrita">5 cm</td>
</tr>
<tr>
<td><strong>Mat thickness</strong></td>
<td class="azul-negrita">1 cm</td>
</tr>
<tr>
<td><strong>Side opening angle<br></strong></td>
<td class="azul-negrita">145º</td>
</tr>
<tr>
<td><strong>Max. pressure</strong></td>
<td class="azul-negrita">360 kg / 5 bar</td>
</tr>
<tr>
<td><strong>Voltage</strong></td>
<td class="azul-negrita">220 V / 240 V</td>
</tr>
<tr>
<td><strong>Power</strong></td>
<td class="azul-negrita">2000 W</td>
</tr>
<tr>
<td><strong>Timer</strong></td>
<td class="azul-negrita">0-999 s</td>
</tr>
<tr>
<td><strong>Temperature range</strong></td>
<td class="azul-negrita">0-240ºC / 0-464ºF</td>
</tr>
<tr>
<td><strong>Temperature accuracy</strong></td>
<td class="azul-negrita">2ºC</td>
</tr>
<tr>
<td><strong>Maximum time for Sleep Mode activation<br></strong></td>
<td><span class="azul-negrita">120 min</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more6"></a> </p>
<p><strong>PRESS DIMENSIONS<br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Press closed in its initial position</strong></td>
<td class="azul-negrita">42,5 x 83 x 57,5 cm</td>
</tr>
<tr>
<td><strong>Press with the lower platen extended</strong></td>
<td class="azul-negrita">42.5 x 123.5 x 57.5 cm</td>
</tr>
<tr>
<td><strong>Press with the heat platen to the side</strong></td>
<td class="azul-negrita">75.5 x 98.5 x 57.5 cm</td>
</tr>
<tr>
<td><strong>Packaging</strong></td>
<td class="azul-negrita">53 x 91 x 67 cm</td>
</tr>
<tr>
<td><strong>Net weight</strong></td>
<td class="azul-negrita">62 kg</td>
</tr>
<tr>
<td><strong>Gross weight</strong></td>
<td class="azul-negrita">68 kg</td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more7"></a> </p>
<p><strong>LOWER PLATEN SIZES<br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Reference no</strong></td>
<td style="text-align: center; vertical-align: middle;"><strong>Metallic platen<br></strong></td>
<td style="text-align: center; vertical-align: middle;"><strong>Platen + Mat<br></strong></td>
</tr>
<tr>
<td><strong>036186</strong></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">12 x 12 x 2 cm</span></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">12 x 12 x 3 cm</span></td>
</tr>
<tr>
<td><strong>036187</strong></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">18 x 38 x 2 cm</span></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">18 x 38 x 3 cm</span></td>
</tr>
<tr>
<td><strong>036188</strong></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">12 x 45 x 2 cm</span></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">12 x 45 x 3 cm</span></td>
</tr>
<tr>
<td><strong>036189</strong></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">30 x 35 x 2 cm</span></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">30 x 35 x 3 cm</span></td>
</tr>
<tr>
<td><strong>036190</strong></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">14 x 34 x 2 cm</span></td>
<td style="text-align: center; vertical-align: middle;"><span class="azul-negrita">14 x 34 x 3 cm</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more8"></a> </p>
<p><strong>> HOW TO ADJUST THE PRESSURE OF THIS PRESS?<br></strong></p>
<p>Here is a video explaining how to adjust the pressure for pressing or curing with the HB2N heat press.</p>
<p> </p>
<p><iframe src="https://player.vimeo.com/video/863190071?h=58469e6c38" width="640" height="564" frameborder="0" allowfullscreen="allowfullscreen"></iframe></p>
