Available in two formats depending on the type of placement:
Anchored to the plate structure with a clamp (Ref. 055432)
Tabletop, 50 cm high with base (Ref. 056500)
Ideal for serial ironing with greater agility and precision
4 light beams that mark the exact position for placing the object on the base plate
Each beam incorporates an adjustment wheel to manually adjust its position
DTF Curing Tray (Ref. 056707)
Facilitates the DTF film curing process without needing to adjust the height of the heat platen
Edge with a 1 cm pad that prevents direct contact of the heat platen with the DTF film during curing
It is placed directly on the base platen, with the holes facing inwards. No installation required
40 x 50 cm tray with a rectangular gap to place it without it hitting the press structure. It incorporates holes for hanging and an edge on the back that acts as a stop on the base platen
Curing area: 36 x 48.5 cm
Heated Base Platen (Ref. 056706)
Platen size: 40 x 50 cm
Heating area: 38 x 38 cm
Applies heat from below, improving thermal transfer and reducing pressing time
Facilitates adhesion on thick, multi-layered, or textured materials
Suitable for thick vinyls, 3D, patches... Improves adhesion and prevents design deformation
Time and temperature controller for the lower platen
Includes a Teflon cover and a 38 x 38 cm protective silicone pad
INTERCHANGEABLE PLATENS
Simple fixing with manual screws
Made of cast aluminium
Get other sizes and shapes to customise different items:
Labels: small textiles such as patches, fabric labels, handkerchiefs...
Sleeves: suitable for threading t-shirt sleeves
Trousers: appropriate for any leg length
Small garments: suitable for baby clothes, bandanas... or rigid items
Trainers: allows for the customisation of 2 trainers at once
Plates: sized for flat plates up to Ø18 cm
Caps: suitable for printing 4 caps at the same time
T-shirts: T-shirt-shaped structure. Includes a Teflon cover
Polo shirts: with a groove for placing the buttons and collar of shirts. Includes a Teflon cover
2 sleeves: facilitates printing 2 sleeves at once. Includes a Teflon cover
4 in 1: platen with grooves for printing garments with zips or buttons, such as jackets, shirts, polo shirts, and even labels
Can coolers: can customise 8 can coolers, or similar items, at once. Does not include a silicone pad to facilitate the complete printing of the coolers
Drying platen: for use in techniques such as drying DTG and screen printing inks or for curing in DTF and DTG. Iron structure with ventilation holes and a porous foam pad that facilitates breathability
https://www.brildor.com/en/rotating-removable-press-xh1-1-40x50cm-plates48866Rotating and Removable Press XH1.1 40x50cm and its Plates<p class="enlace"><a id="saber-mas"></a> </p>

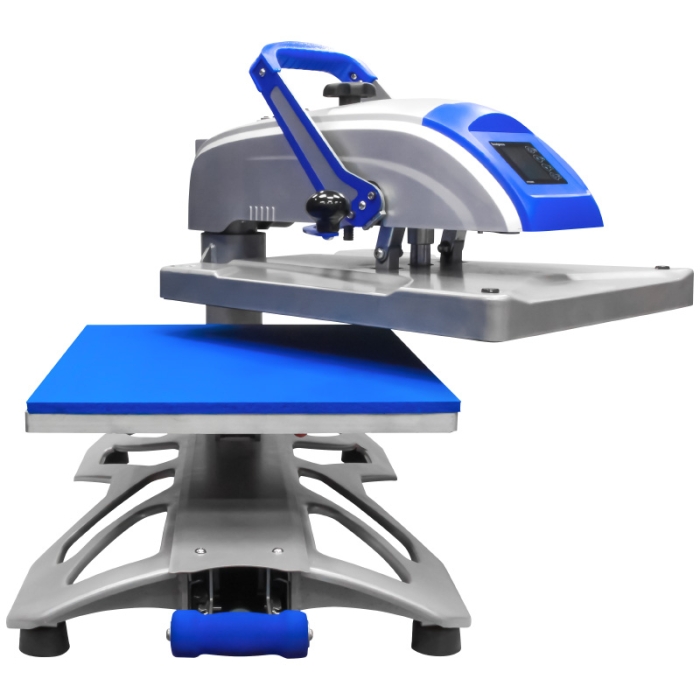

<h2>More information about the XH1.1 40x50cm swing-away and pull-out heat press and its platens</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#saber-mas1">Description</a></p>
<p>> <a href="#saber-mas2">Keep in mind</a></p>
<p>> <a href="#saber-mas3">Manual</a></p>
<p>> <a href="#saber-mas4">Press Measurements</a></p>
<p>> <a href="#saber-mas5">Accessories</a></p>
<p>> <a href="#saber-mas6">Interchangeable Platens</a></p>
<p>> <a href="#saber-mas7">Interchangeable Platen Measurements</a></p>
<p>> <a href="#saber-mas9">Technical Data</a></p>
<p>> <a href="#saber-mas8">Warranty</a></p>
<p> </p>
<p class="enlace"><a id="saber-mas1"></a> </p>
<p><strong>DESCRIPTION<br></strong></p>
<ul>
<li>Lever with an ergonomic handle for opening and closing</li>
<li>Touchscreen control panel to programme and control time and temperature very precisely</li>
<li>Features an energy-saving system with automatic shutdown for safety protection</li>
<li>Pressure adjustment with a wheel</li>
<li>Base platen with a silicone pad for even distribution of pressure and temperature</li>
<li>Sturdy structure with a scratch-resistant coating</li>
<li>Certifications: EMC, MD, Rohs in accordance with CE</li>
</ul>
<p> </p>
<p class="enlace"><a id="saber-mas2"></a> </p>
<p><strong>KEEP IN MIND<br></strong></p>
<ul>
<li>The heat platen is not interchangeable, except in case of a fault</li>
</ul>
<p> </p>
<p class="enlace"><a id="saber-mas3"></a> </p>
<p><strong>MANUAL<br></strong></p>
<p><a title="XH1.1 Presses Instruction Manual (.pdf - 1.21 MB)" href="https://www.brildor.com/media/upload/descargas/Manual_de_instrucciones_plancha_transfer_xh1.1_40x50cm.pdf" target="_blank" rel="nofollow noopener">XH1.1 Presses Instruction Manual (.pdf - 1.21 MB)</a></p>
<p> </p>
<p class="enlace"><a id="saber-mas4"></a> </p>
<p><strong>PRESS MEASUREMENTS<br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Closed (cm)</strong></td>
<td><span class="azul-negrita">42.5 x 62.5 x 83 <br></span></td>
</tr>
<tr>
<td><strong>With extended base platen (cm)</strong></td>
<td><span class="azul-negrita">42.5 x 62.5 x 133.5<br></span></td>
</tr>
<tr>
<td><strong>Stand (cm)</strong></td>
<td><span class="azul-negrita">43.5 x 9.9 x 74.5</span><span class="azul-negrita"><br></span></td>
</tr>
<tr>
<td><strong>Stand with handle (cm)</strong></td>
<td><span class="azul-negrita">43.5 x 9.9 x 82.5</span></td>
</tr>
<tr>
<td><strong>Packaging (cm)<br></strong></td>
<td><span class="azul-negrita">60 x 52 x 90</span></td>
</tr>
<tr>
<td><strong>Net weight (kg)<br></strong></td>
<td><span class="azul-negrita">56.5</span></td>
</tr>
<tr>
<td><strong>Gross weight (kg)</strong></td>
<td><span class="azul-negrita">62.5</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="saber-mas5"></a> </p>
<p><strong>ACCESSORIES</strong></p>
<p><strong>Laser positioners - (Ref. 055432 and 056500)</strong></p>
<ul>
<li>Available in two formats depending on the type of placement:
<ul>
<li><strong>Anchored</strong> to the plate structure with a clamp (Ref. 055432)</li>
<li><strong>Tabletop</strong>, <span class="azul-negrita">50 cm</span> high with base (Ref. 056500)</li>
</ul>
</li>
<li>Ideal for serial ironing with greater agility and precision</li>
<li>4 light beams that mark the exact position for placing the object on the base plate</li>
<li>Each beam incorporates an adjustment wheel to manually adjust its position</li>
</ul>
<p><strong>DTF Curing Tray (Ref. 056707)</strong></p>
<ul>
<li>Facilitates the DTF film curing process without needing to adjust the height of the heat platen</li>
<li>Edge with a <span class="azul-negrita">1 cm</span> pad that prevents direct contact of the heat platen with the DTF film during curing</li>
<li>It is placed directly on the base platen, with the holes facing inwards. No installation required</li>
<li><span class="azul-negrita">40 x 50 cm</span> tray with a rectangular gap to place it without it hitting the press structure. It incorporates holes for hanging and an edge on the back that acts as a stop on the base platen</li>
<li>Curing area: <span class="azul-negrita">36 x 48.5 cm</span></li>
</ul>
<p><strong>Heated Base Platen (Ref. 056706)</strong></p>
<ul>
<li>Platen size: <span class="azul-negrita">40 x 50 cm</span></li>
<li>Heating area: <span class="azul-negrita">38 x 38 cm</span></li>
<li>Applies heat from below, improving thermal transfer and reducing pressing time</li>
<li>Facilitates adhesion on thick, multi-layered, or textured materials</li>
<li>Suitable for thick vinyls, 3D, patches... Improves adhesion and prevents design deformation</li>
<li>Time and temperature controller for the lower platen</li>
<li>Includes a Teflon cover and a <span class="azul-negrita">38 x 38 cm</span> protective silicone pad</li>
</ul>
<p> </p>
<p class="enlace"><a id="saber-mas6"></a> </p>
<p><strong>INTERCHANGEABLE PLATENS</strong></p>
<ul>
<li>Simple fixing with manual screws</li>
<li>Made of cast aluminium</li>
<li>Get other sizes and shapes to customise different items:
<ul>
<li>Labels: small textiles such as patches, fabric labels, handkerchiefs...</li>
<li>Sleeves: suitable for threading t-shirt sleeves</li>
<li>Trousers: appropriate for any leg length</li>
<li>Small garments: suitable for baby clothes, bandanas... or rigid items</li>
<li>Trainers: allows for the customisation of 2 trainers at once</li>
<li>Plates: sized for flat plates up to <span class="azul-negrita">Ø18 cm<br></span></li>
<li>Caps: suitable for printing 4 caps at the same time</li>
<li>T-shirts: T-shirt-shaped structure. Includes a Teflon cover</li>
<li>Polo shirts: with a groove for placing the buttons and collar of shirts. Includes a Teflon cover</li>
<li>2 sleeves: facilitates printing 2 sleeves at once. Includes a Teflon cover</li>
<li>4 in 1: platen with grooves for printing garments with zips or buttons, such as jackets, shirts, polo shirts, and even labels</li>
<li>Can coolers: can customise 8 can coolers, or similar items, at once. Does not include a silicone pad to facilitate the complete printing of the coolers</li>
<li>Drying platen: for use in techniques such as drying <span class="azul-brildor-negrita">DTG</span> and <span class="azul-brildor-negrita">screen printing </span>inks or for curing in<span class="azul-brildor-negrita"> DTF</span> and<span class="azul-brildor-negrita"> DTG</span>. Iron structure with ventilation holes and a porous foam pad that facilitates breathability</li>
</ul>
</li>
</ul>
<p> </p>
<p class="enlace"><a id="saber-mas7"></a> </p>
<p><strong>INTERCHANGEABLE PLATEN MEASUREMENTS<br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Ref.</strong></td>
<td style="text-align: center;"><strong>036186</strong></td>
<td style="text-align: center;"><strong>036188</strong></td>
<td style="text-align: center;"><strong>036187</strong></td>
<td style="text-align: center;"><strong>036189</strong></td>
<td style="text-align: center;"><strong>036190</strong></td>
<td style="text-align: center;"><strong>053435</strong></td>
<td style="text-align: center;"><strong>053437</strong></td>
<td style="text-align: center;"><strong>053436</strong></td>
<td style="text-align: center;"><strong>055428<br></strong></td>
<td style="text-align: center;"><strong>055430<br></strong></td>
<td style="text-align: center;"><strong>056313<br></strong></td>
<td style="text-align: center;"><strong>053438</strong></td>
<td style="text-align: center;"><strong>053592<br></strong></td>
</tr>
<tr>
<td><strong>Model<br></strong></td>
<td style="text-align: center;">Labels</td>
<td style="text-align: center;">1 sleeve</td>
<td style="text-align: center;">Trousers</td>
<td style="text-align: center;">Small<br>garments</td>
<td style="text-align: center;">Trainers</td>
<td style="text-align: center;">Plates<br>(round)</td>
<td style="text-align: center;">Caps</td>
<td style="text-align: center;">T-shirts</td>
<td style="text-align: center;">Polo shirts</td>
<td style="text-align: center;">2 sleeves</td>
<td style="text-align: center;">4 in 1</td>
<td style="text-align: center;">Can<br>coolers</td>
<td style="text-align: center;">Drying</td>
</tr>
<tr>
<td><strong>Base<br>platen (cm)<br></strong></td>
<td style="text-align: center;"><span class="azul-negrita">12 x 12</span></td>
<td style="text-align: center;"><span class="azul-negrita">12 x 45</span></td>
<td style="text-align: center;"><span class="azul-negrita">18 x 38</span></td>
<td style="text-align: center;"><span class="azul-negrita">30 x 35</span></td>
<td style="text-align: center;"><span class="azul-negrita">14 x 34</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø18 x 2</span></td>
<td style="text-align: center;"><span class="azul-negrita">38 x 38</span></td>
<td style="text-align: center;"><span class="azul-negrita">40 x 50<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">40 x 50<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">40 x 50<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">40 x 50<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">40 x 50</span></td>
<td style="text-align: center;"><span class="azul-negrita">40 x 50<br></span></td>
</tr>
<tr>
<td><strong>Platen</strong><br><strong>thickness (cm)<br></strong></td>
<td style="text-align: center;"><span class="azul-negrita">2<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">2<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">2<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">2<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">2<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">1.5<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">4.5<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">1.5<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">1.5<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">1.5<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">1.5<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">0.4<br></span></td>
<td style="text-align: center;"><span class="azul-negrita">3<br></span></td>
</tr>
<tr>
<td><strong>Pad<br></strong></td>
<td style="text-align: center;">Silicone</td>
<td style="text-align: center;">Silicone</td>
<td style="text-align: center;">Silicone</td>
<td style="text-align: center;">Silicone</td>
<td style="text-align: center;">Silicone</td>
<td style="text-align: center;">Open<br>Cell</td>
<td style="text-align: center;">Open<br>Cell</td>
<td style="text-align: center;">Open<br>Cell</td>
<td style="text-align: center;">Open<br>Cell</td>
<td style="text-align: center;">Open<br>Cell</td>
<td style="text-align: center;">Open<br>Cell</td>
<td style="text-align: center;">Not<br>included</td>
<td style="text-align: center;">Silicone with<br>porous foam</td>
</tr>
<tr>
<td><strong>Cover</strong><br><strong>included<br></strong></td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">Yes</td>
<td style="text-align: center;">Yes</td>
<td style="text-align: center;">Yes</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
</tr>
<tr>
<td><strong>Pad<br>thickness (mm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita"> 8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8 <br></span></td>
<td style="text-align: center;"><span class="azul-negrita">8 <br></span></td>
<td style="text-align: center;"><span class="azul-negrita">-</span></td>
<td style="text-align: center;"><span class="azul-negrita">12<br></span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="saber-mas9"></a> </p>
<p><strong>TECHNICAL DATA<br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Press model</strong></td>
<td>XH1.1 <span class="azul-negrita">40x50cm</span></td>
</tr>
<tr>
<td><strong>Press type</strong></td>
<td>Manual/Swing-away</td>
</tr>
<tr>
<td><strong>Base platen type</strong></td>
<td>Pull-out</td>
</tr>
<tr>
<td><strong>Controller</strong></td>
<td>LCD Touchscreen</td>
</tr>
<tr>
<td><strong>Base platen measurements (cm)<br></strong></td>
<td><span class="azul-negrita">40 x 50<br></span></td>
</tr>
<tr>
<td><strong>Maximum printing thickness (cm)<br></strong></td>
<td><span class="azul-negrita">4.5<br></span></td>
</tr>
<tr>
<td><strong>Pad thickness (mm)<br></strong></td>
<td><span class="azul-negrita">8<br></span></td>
</tr>
<tr>
<td><strong>Maximum swing angle (°)<br></strong></td>
<td><span class="azul-negrita">145<br></span></td>
</tr>
<tr>
<td><strong>Voltage (V)<br></strong></td>
<td><span class="azul-negrita">110/220 </span></td>
</tr>
<tr>
<td><strong>Power (W)<br></strong></td>
<td><span class="azul-negrita">1600/2299</span></td>
</tr>
<tr>
<td><strong>Timer (Sec)<br></strong></td>
<td><span class="azul-negrita">0 - 999<br></span></td>
</tr>
<tr>
<td><strong>Temperature range (°C | °F)<br></strong></td>
<td><span class="azul-negrita">250 | 482<br></span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="saber-mas8"></a> </p>
<p><strong>WARRANTY<br></strong></p>
<ul>
<li>As stipulated by Law in: <a href="https://www.brildor.com/en/general-terms-and-conditions-for-the-sale#warranty" target="_blank" rel="noopener">General Terms and Conditions for the Sale of Goods</a></li>
</ul>https://www.brildor.com/media/catalog/product/p/l/plancha-giratoria-extraible-xh1-1-40x50-platos.jpg969instock0969000https://www.brildor.com/media/catalog/product/p/l/plancha-giratoria-extraible-xh1-1-40x50-platos.jpg1649122955270162761048905505105328454219/Heat Presses/Heat Presses/Swing Away Heat Presses2022-10-26T13:07:52+0000
