Screen Printing Hinges

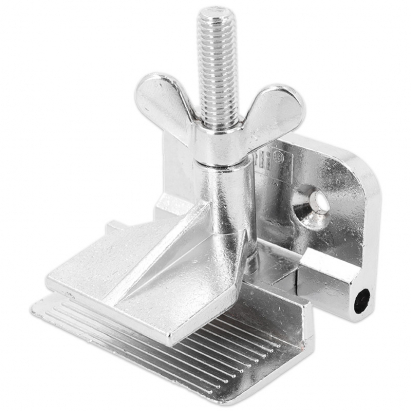

Aluminium hinges with a clamp to secure wooden or metal screens and convert any table into a manual screen printing station.
- For screens with a frame thickness of 1.5 to 5 cm (5/8" to 2")
- They are screwed to the table and the frames are secured with a wing nut
Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program
Related Products
More information about the Screen Printing Hinges
INDEX
DESCRIPTION
- Butterfly clamp to secure the screen printing frame to a table or work surface. Ensures the screen remains in place and does not move during printing
- Screw or set screw with wide-wing butterfly nut to adjust the clamp to the frame
- Positive clamp lock for a solid and perfect hold
- Rectangular spade-shaped base with slots to fit the frame
- Book or piano hinge with two
- Includes 4 screws of Ø0.4 cm and 2 holding holes of Ø0.6 cm
- The pack of 2 hinges comes in a white cardboard box. The screws are inside a resealable bag within the box
DIMENSIONS
| Ref. | 028035 | 040068 |
| Hinge (cm) |
6 x 9 x 5 |
7.1 x 9 x 6.5 |
| Extended hinge (cm) |
6 x 9 x 8.5 |
7.1 x 9 x 9.5 |
| Upper clamp (cm) |
3.6 x 3.6 | 4.5 x 4.5 |
| Lower clamp (cm) |
6 x 3 | 7.1 x 3.5 |
| Maximum opening (cm | in.) |
5 | 2" | 5 | 2" |
| Packaging (cm) |
8 x 11.2 x 5.2 | 8 x 11.7 x 7 |
| Unit weight (g) |
191 | 329 |
| Pack weight 2 pcs (g) |
417 | 690 |
INSTRUCTIONS FOR USE
- Secure them with a screw or clamp to the table
- Attach the screen or frame to the hinge
- Screw the butterfly nut until the hinge is secured to the frame
