Separators Screen Printing

Separators Screen Printing

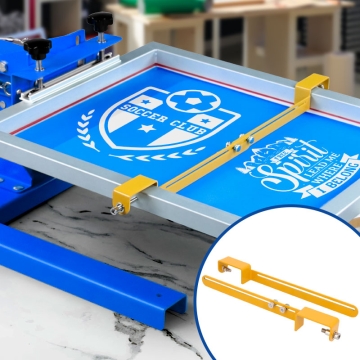

Tool for splitting the screen printing screen into two parts and printing with two colours simultaneously.

  • Stainless steel with 3 adjustment bolts
  • Suitable for frames or stretchers up to 6 cm thick
  • Sales unit: 1 pair of dividers

More information

Reward Points
For each unit you buy, you will accumulate €0.54 to redeem on your next order. Discover the Brildor Loyalty Program.
Immediate: 4 units
€26.95
€26.95 VAT included

More information about the Separators Screen Printing

INDEX

> Description

> Things to keep in mind

> Approximate dimensions

> Instructions for use

DESCRIPTION

  • Adjustable on each side of the frame
  • A strip or bar of a rigid material such as wood or aluminium with a maximum thickness of 2 cm should be placed between the separators
  • Prevents registration errors as there is no need to remove the screen to add the next colour
  • Suitable for use on wooden or aluminium frames
  • Includes an Allen key for easy adjustment of the bolts

THINGS TO KEEP IN MIND

  • If this separator does not fit your frame dimensions, you can use this one

APPROXIMATE DIMENSIONS

Separator (cm) 13.6 x 3.2 x 6.2
Unit weight (g) 258

INSTRUCTIONS FOR USE

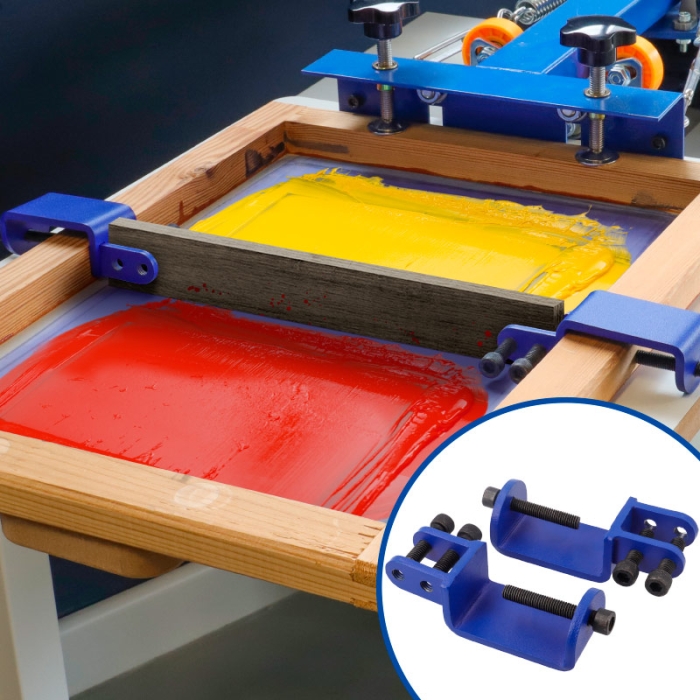

  1. Place a separator on each side of the screen, at the height of the chosen design separation
  2. Fit the strip or bar between both pieces and adjust the bolts. The bar needs to be flat to remain straight
  3. Once the screen is separated into two spaces, it will be ready to start printing
Additional Information
Ref. 028038
Net Weight (kg) 0.500
Billable Weight (kg) 0.600000
