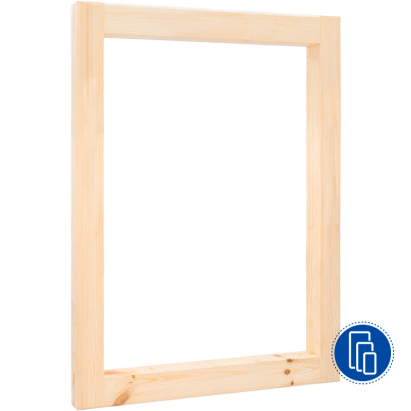

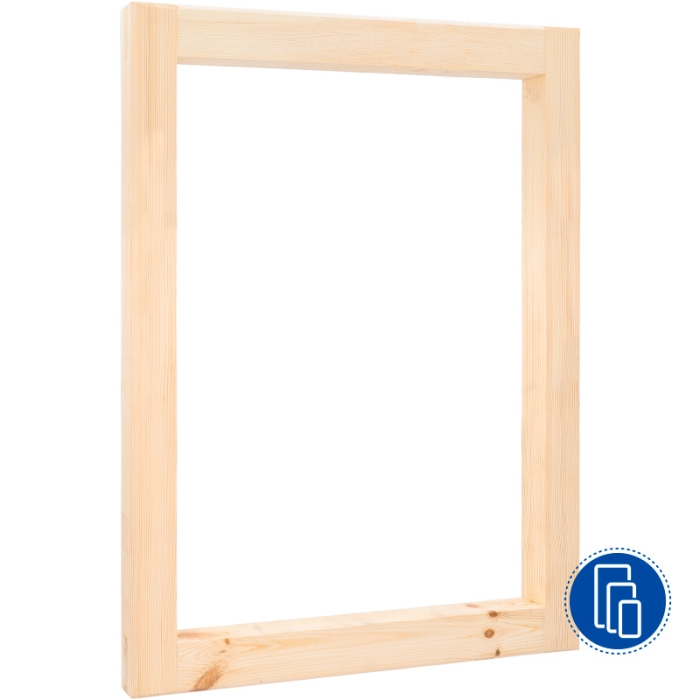

Wooden frames, the most economical and eco-friendly option for preparing screen printing screens. While they can be professionally meshed, they also allow for basic meshing using a simple stapler.

Available internal dimensions range from 20 x 30 cm to 50 x 60 cm
With finger joints for greater flatness and strength.
If you wish to purchase meshed wooden frames, you can find them in our Related Products

More information

Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program

More information about wooden frames for screen printing

INDEX

> Description

> Which frame size to choose?

> Things to keep in mind

> Dimensions

DESCRIPTION

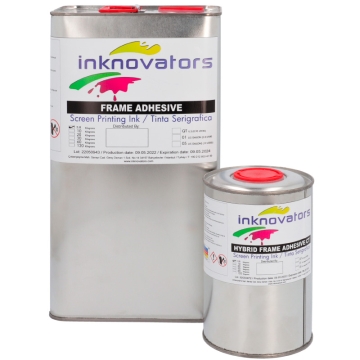

They allow you to fix and stretch the mesh to produce the screens for screen printing. A good frame is essential for achieving quality prints. In Related Products you will find adhesive to fix the mesh to the frame
Wooden frames are an interesting option due to their price and low ecological impact
They can be easily meshed using staples to fix the mesh, without the need for professional experts
In Related Products you will find meshes of different weaves to mesh these frames as well as other types of frames, screens, meshing machines...

WHICH FRAME SIZE TO CHOOSE?

The choice of frame or stretcher size, also known as shablon, will depend on the dimensions of the image you want to print or stamp
To the size of the image, you need to add 15 or 20 cm per side to get the size you need
Example: for an image of 30x40cm, it is recommended to use a frame that measures at least 45x55cm. In this case, the 50x60cm frame would be suitable

THINGS TO KEEP IN MIND

These frames or stretchers are supplied without mesh. In Related Products you will find wooden screen printing screens in different sizes and types of meshes

DIMENSIONS

Reference	Internal dimension (cm)	Profile section (cm)
006836	20 x 30	3.3 x 2.5
006837	30 x 40	3.3 x 2.5
006838	40 x 50	4.8 x 3.5
006839	50 x 60	4.8 x 3.5
