More information about the Press for Cylindrical Objects & Heating Elements - Craft Hobby

INDEX

> Description

> Things to keep in mind

> Precautions

> Elements

> How to choose the right element?

> Cylindrical element measurements

> Conical element measurements

> Technical data and press measurements

> Warranty

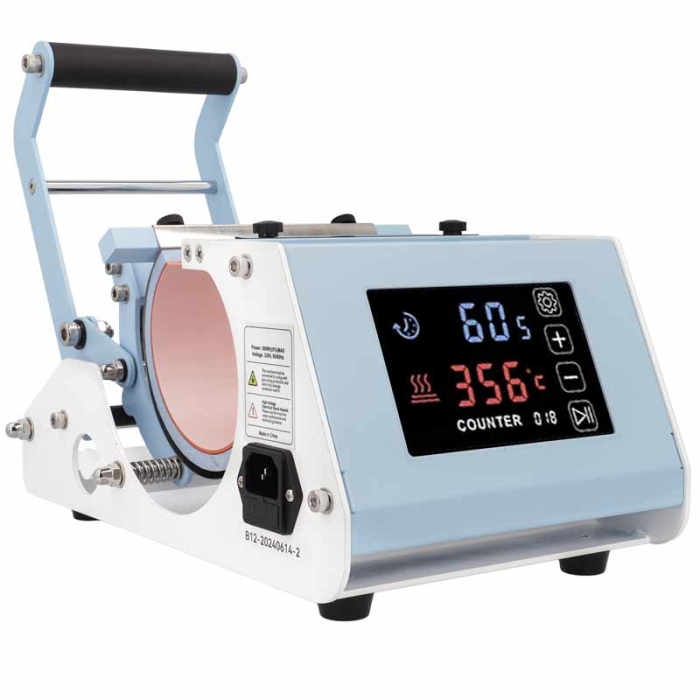

DESCRIPTION

• Small and portable: easy to transport and ideal for small workspaces
• Touchscreen panel: to control time and temperature
• Manual pressure adjustment: with a wheel
• Full stamping: of handleless objects like tumblers, bottles, thermoses... The elements close completely
• Ergonomic handle: with a pad
• Easy installation of elements: with threaded screws. They are placed and removed manually, without the need for tools
• RoHs certification: in compliance with CE regulations

THINGS TO KEEP IN MIND

• To personalize the entire surface of an object, it is recommended to perform 2 pressings. After the first one, slightly rotate the item without removing it from the press, and perform another pressing for 30 seconds more, at the same temperature

PRECAUTIONS

• Check the voltage before turning on the heat press
• For your safety, make sure the plug has a grounding pin
• Turn off the machine when not in use
• Keep children away from the machine
• Avoid touching the element when it is hot
• Do not place products that are not suitable for the heat press element
• After 1.5 hours of use, it is recommended to turn off the press for 20 minutes
• To extend the life of the press, it is recommended to cool it with a cup inside
• Do not heat or maintain a high temperature without an object inside. If you want to personalize objects much smaller than the element, place 2 or more inside at the same time

ELEMENTS

• Quick and uniform heat transfer thanks to the conductive wire that covers the entire surface of the element
• Male connectors with 5 pins
• Videotutorial: How to choose the right element?

CYLINDRICAL ELEMENT MEASUREMENTS

Measurements with indicative character indicated by the manufacturer. It is recommended to perform tests with the element before starting production.

Element	Reference	Shape	Capacity (oz)	A (cm)	B (cm)	Max opening (cm)	Min opening (cm)	Weight (g)
	Included with the press	Cylindrical	11	23	13	Ø8.7	Ø7.2	502
	054519	Cylindrical	3	13.5	8	Ø5.8	Ø4.8	232
	054516	Cylindrical	10	20.5	13	Ø8.1	Ø6.5	455
	055054	Cylindrical	12	23	9	*	*	403

* Information not provided by the manufacturer.

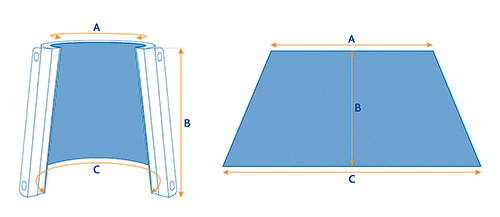

CONICAL ELEMENT MEASUREMENTS

Measurements with indicative character indicated by the manufacturer. It is recommended to perform tests with the element before starting production.

Element	Reference	Shape	Capacity (oz)	A (cm)	B (cm)	C (cm)	Diameter max (cm)	Diameter min (cm)	Weight (g)
	055055	Conical	3	8.5	12	11.5	Top: * Bottom: *	Top: * Bottom: *	273
	055052	Conical	12	17	12	26	Top: Ø7 Bottom: Ø10	Top: Ø6 Bottom: Ø8.8	446
	055053	Conical	17	14.5	16.5	23.5	Top: Ø6.4 Bottom: Ø8.8	Top: Ø5.5 Bottom: Ø8	556

* Information not provided by the manufacturer.

TECHNICAL DATA AND PRESS MEASUREMENTS

WARRANTY

• Press: As stipulated by law in: General Terms and Conditions for the Sale of Goods
• Element: 3 months

The period starts from the date of invoice.
