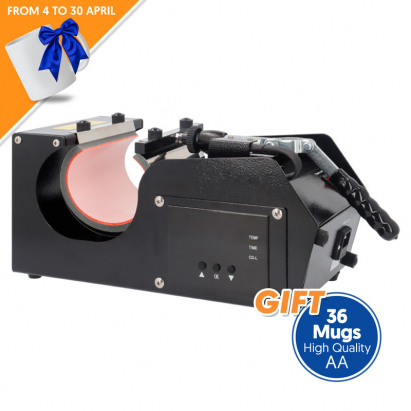

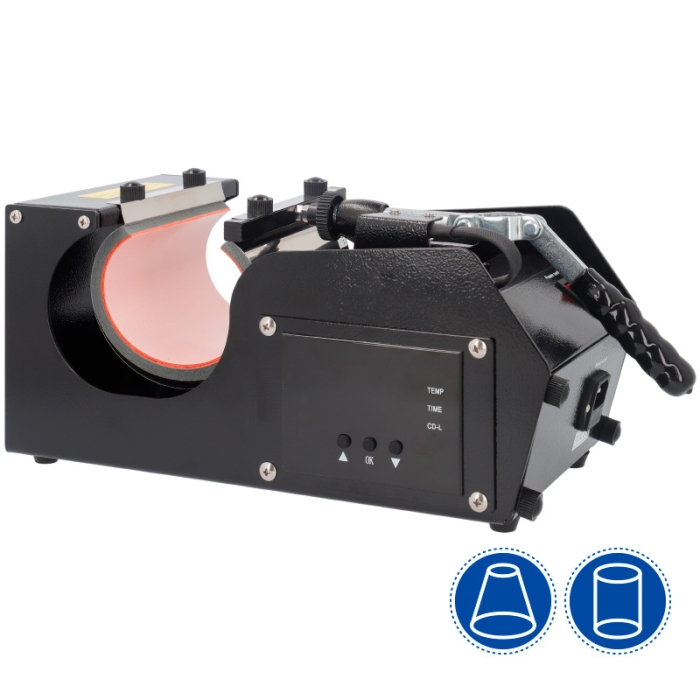

Mug Press & Mug Attachments - Brildor BT-T5.1
Mug press with interchangeable heating elements.dye sublimation printing , transfer paper and more. It can also be used for cups, mugs or bottles of any material.
The press includes a mug element for 10-11 oz latte mugs (Ref. 029823)
Different sized mug attachments are available separately
Digital time and temperature controller with acoustic alarm, easy to set
More information
Our availability is not enough?
Let us know how much you need
I WANT MORE
How to SUBLIMATE a MUG and HOW MUCH does it REALLY cost?
More information about the Brildor BT-T5.1 mug press and mug attachments
INDEX
Press
Description
Manual
Technical details
Dimensions
Heating Elements
Description
Technical details
Warranty
Brildor BT-T5.1 MUG PRESS
DESCRIPTION
Manual opening and closing
Pressure adjustment knob
Very strong steel frame
Compact and ergonomic design
Small and portable, ideal for small workspaces
Easy and tool-free heating element installation thanks to hand thread screws
RoHS CE mark
USER MANUAL
User Manual Brildor BT-T5.1 Mug Press (.pdf - 297 kB)
TECHNICAL DETAILS
Press model Brildor BT-T5.1
Press type Manual/Mug
Controller LCD digital display model GY-04
Voltage 220 V CA
Power 300 W
Timer 0-999 s
Temperature range 0-225ºC / 0-437ºF
Temperature accuracy ±5ºC / ±41ºF
DIMENSIONS
Press 18.7 x 24.5 x 36.5 cm
Packaging 45 x 32.7 x 29.7 cm
Weight 6.5 kg
INTEERCHANGEABLE HEATING ELEMENTS
DESCRIPTION
With 3rd generation male connector
Silicone pad interior to fit and not damage the material surface
Wide, dense, fine-grained heat conductor ensures fast and even heat transfer
Made of high-quality material
TECHNICAL DETAILS OF THE HEATING ELEMENTS
A
B Ø max. Ø min. Weight
Ref. example
032269 Durham mug
6-9 oz
20
13
7.5
6.5
350 034188
029823 Durham mug
10-11 oz
22.5
13
8.5
7.5
445 028051
A B C Ø max. Ø min. Weight
032270 Latte mug
12 oz
17
11.7
27 Up: 6
Up: 5.8
456
032271 Latte mug
17 oz
17.5
16.4
23.5 Up: 6
Up: 5.5
530
Measurements and suggestions for use as a guideline. Testing is recommended.
WARRANTY
The warranty period starts from the date mentioned on the invoice of purchase.
