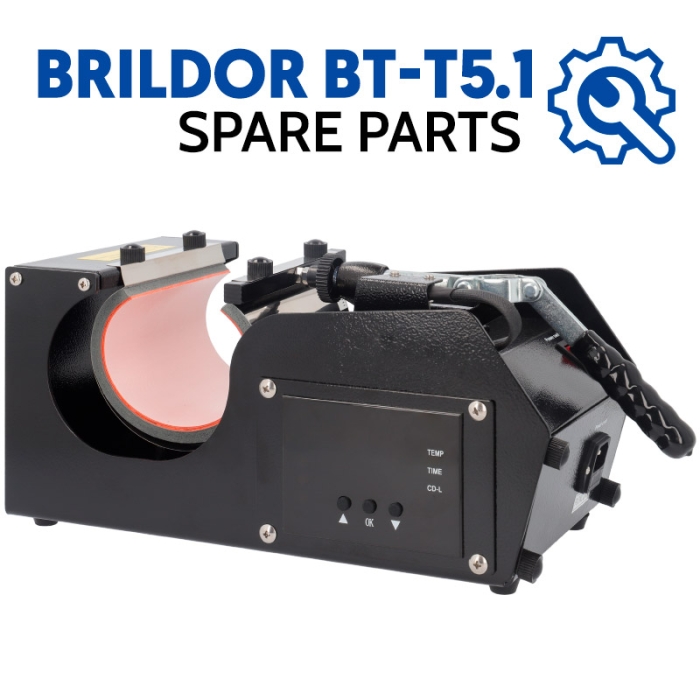

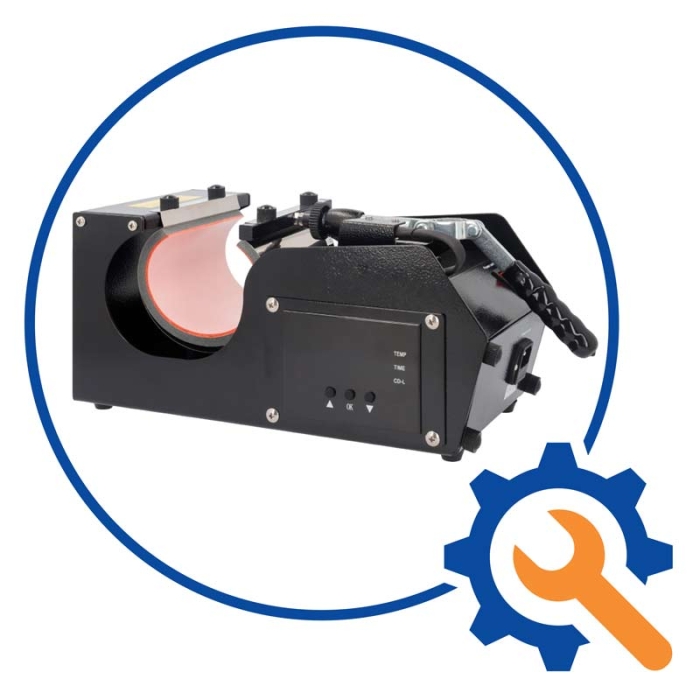

Spare Parts for Mug Press - Brildor BT-T5.1

Spare parts for Brildor mug heat presses: BT-T5.1 (Ref. 031507).

More information

Availability:

Shown on each product

Our availability is not enough?
Let us know how much you need

Cylindrical resistance 10-11oz Ref: 029823

Heating Attachment for BT-T5.1 Mug Press - 10/11oz Durham Mug

€54.95 VAT not included / Each Unit

Availability Immediate: 89 units
Expected entries:
27/09/25: 100 units

GY-04 Control Board Ref: 029419

GY-04 Control Board for Brildor Heat Presses

€68.95 VAT not included / Each Unit

Availability Immediate: 34 units

Adjustment Knob Ref: 029645

Adjustment Knob for Mug Heat Presses - BT- T5 from 2013 onwards

€9.72 VAT not included / Each Unit

Availability Immediate: 5 units

Limit Switch Ref: 029429

€9.95 VAT not included / Each Unit

Availability Immediate: 15 units

Socket base Ref: 029461

€6.90 VAT not included / Each Unit

Availability Immediate: 2 units
Expected entries:
27/09/25: 1 units

View Price

VAT not included

Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More information about the Spare Parts for Mug Press - Brildor BT-T5.1

INDEX

> Description of the spare parts

> Exploded view

> Warranty

DESCRIPTION OF THE SPARE PARTS

Cylindrical element 10-11 oz

Ref. 029823

Generation	Anchors	Connector	Height	Minimum inner diameter	Thickness	Sales dates
3rd	2 screws	Male	12 cm	Ø7.5 cm	0.1 cm	2012-Present

Digital Controller GY-04

Ref. 029419

Programmable digital controller for time and temperature. Time range: 0-999s. Temperature range: 0-225 ºC / 0-437 ºF.

Usage instructions (.pdf - 164kb).

Pressure Adjuster

Ref. 029645

Compatible with press models from 2013 onwards. Metal and plastic adjustment wheel. Dimensions: Ø6 x 3.1 cm

Limit Switch

Ref. 029429

End-of-travel micro switch.

IEC-C14 Plug Base

Ref. 029461

Male connector.

EXPLODED VIEW

Brildor BT-T5.1 Mug Press Manual (.pdf - 297 kB)

WARRANTY

Spare parts: 3 months

The period starts from the invoice date.
