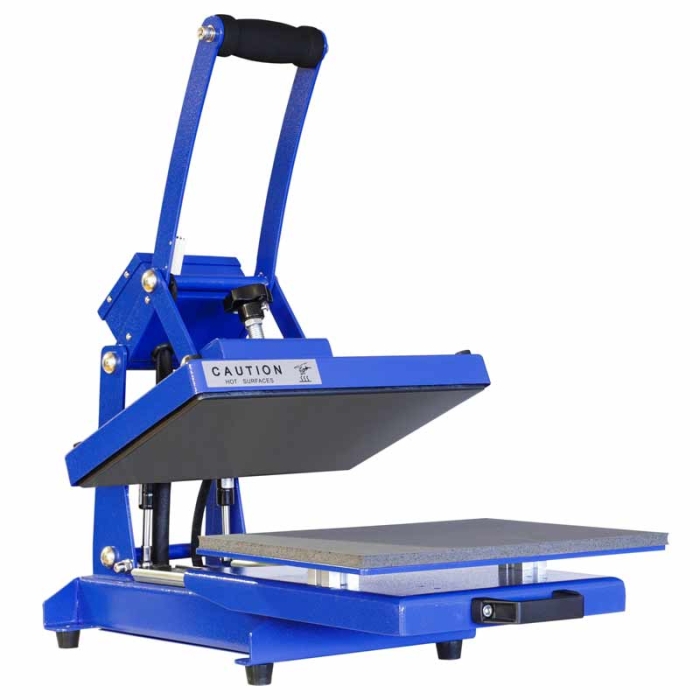

Brildor Blue-EVO Manual Heat Press

Heat press for customising flat, rigid, or textile surfaces. Especially useful for printing A4 formats.

Manual closing and opening, sandwich type
Removable base plate of 23 x 33 cm

More information

Availability:

Shown on each product

Blue-EVO Ref: 054570

€295.00 VAT not included / Each Unit

Availability Immediate: more than 5 units

View Price

VAT not included

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More information about the Brildor Blue-EVO Manual Heat Press

INDEX

> Description

> User Manual

> Control Panel Instructions

> Certificates

> Technical Data

> Warranty

DESCRIPTION

Compact design: ideal for small workspaces. Perfect for in-store customisation on demand
Versatile: for customising rigid and textile items using heat transfer techniques such as sublimation, DTF, textile vinyl, transfer...
Temperature and time control: LCD screen with buttons for precise, easy, and quick adjustment of ironing parameters
Smooth opening and closing: includes pneumatic dampers to reduce effort and an ergonomic handle lever
Removable or sliding base: facilitates product preparation before pressing, preventing burns
Manual pressure adjustment: by turning the wheel located on top of the heat plate
Silicone pad: 10 mm included, provides uniform transfers and protects the heat plate
Heat plate with Teflon coating: for even temperature distribution across the entire base plate surface
Stable structure: made of steel, sturdy and robust despite its small size

USER MANUAL

Brildor Blue-EVO A4 Transfer Press - Spanish (.pdf - 0.97 MB)

Brildor Blue-EVO A4 Transfer Press - English (.pdf - 0.70 MB)

CONTROL PANEL INSTRUCTIONS

Turn on the press and press the OK button. Use the arrow buttons to switch from °C to °F
Press the OK button again to set the ironing temperature. Use the arrow buttons to increase or decrease the temperature
Press the OK button to set the time. Use the arrow buttons to set the ironing time
When finished, press the OK button to start heating the press. If the temperature is below 100 °C, the screen will display LO (Low temperature)
Once the press reaches the indicated temperature, you can lower the heat plate, and the countdown will start automatically
The press will beep when the countdown is about to finish

CERTIFICATES

CE Certification in compliance with EU regulations

TECHNICAL DATA

Press model	Brildor Blue-EVO A4 NA4-0913
Type of press	Manual/Sandwich
Controller	GY-04 Digital Screen
Plug type	European
Base plate type	Removable
Base plate and heat plate dimensions (cm)	23 x 33
Maximum thickness to print (cm)	2.5
Pad thickness (cm)	1
Opening angle (º)	30
Voltage (V)	220
Frequency (Hz)	50
Power (W)	700
Timer (s)	0-999
Temperature range (°C \| °F)	0-225 \| 0-437
DIMENSIONS
Press closed (cm)	42 x 34.5 x 35
Press open (cm)	62.5 x 34.5 x 61
Packaging (cm)	56 x 45.5 x 48
Net weight (kg)	21.9
Gross weight (kg)	27

WARRANTY

As stipulated by law in: General Terms and Conditions for the Sale of Goods
