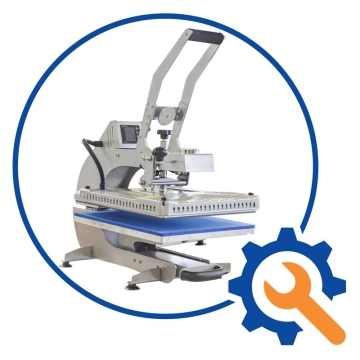

Magnetic Rotating Removable Heat Press Mate 450 Pro-Up and Plates
Magnetic Rotating Removable Heat Press Mate 450 Pro-Up and Plates
Semi-automatic heat press for heat transfers on textiles and rigid materials.
- Manual closing with automatic opening via electromagnet, without compressor
- Rotating heat platen. Prevents burns
- Removable base plate with locking system. Interchangeable for other models, available separately
- Removable double handle
- Standard base and heat platen size: 40 x 50 cm
More information
https://www.brildor.com/en/magnetic-rotating-removable-heat-press-mate-450-pro-up-platens
en_55798
Magnetic Rotating Removable Heat Press Mate 450 Pro-Up and Plates
<p><a name="saber-mas"></a></p>
<h2>More information about the Magnetic Rotating Removable Heat Press Mate 450 Pro-Up and Plates</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#saber-mas1">Description</a></p>
<p>> <a href="#saber-mas2">IMPORTANT NOTES</a></p>
<p>> <a href="#saber-mas3">Press dimensions</a></p>
<p>> <a href="#saber-mas4">User manual</a></p>
<p>> <a href="#saber-mas9">Accessories</a></p>
<p>> <a href="#saber-mas5">Interchangeable platens</a></p>
<p>> <a href="#saber-mas6">Interchangeable platen dimensions</a></p>
<p>> <a href="#saber-mas7">Technical data</a></p>
<p>> <a href="#saber-mas8">Warranty</a></p>
<p class="enlace"><a id="saber-mas1"></a> </p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li><strong>Semi-automatic</strong>: heat press with manual closing and automatic opening via electromagnetic lock</li>
<li><strong>Removable double handle</strong>: provides a more comfortable and secure grip for closing the press and rotating the heat platen</li>
<li><strong>Hydraulic dampers: </strong>provide smooth and safe opening and closing of the machine</li>
<li><strong>Removable base plate with locking system</strong>: makes it easy to position the garment and stays fixed while working. To retrieve it, simply lower the handle and slide the plate inwards</li>
<li><strong>Rotating heat platen</strong>: prevents burns</li>
<li><strong>Adjustable heat platen height</strong>: allows setting the heat platen height at <span class="azul-negrita">5-10 cm</span> from the base plate. Suitable for the curing process in <span class="azul-brildor-negrita">DTF </span>and drying of the pretreatment in <span class="azul-brildor-negrita">DTG<br></span></li>
<li><strong>Manual pressure adjustment</strong>: by turning the wheel located on the top of the heat platen according to the material to be printed</li>
<li><strong>Base plate with pad</strong>: ensures even transfer and protects the base plate </li>
<li><strong>LCD touch panel</strong>: temperature and time settings. Includes a counter</li>
<li><strong>Audible signal</strong>: Emits an acoustic signal when the pressing is finished</li>
<li><strong>Programmable automatic shut-off</strong>: the press starts cooling down after an inactivity period of up to <span class="azul-negrita">120 minutes</span></li>
<li><strong>Stable structure</strong>: resistant and robust. Anti-slip feet, one of them longer to provide greater stability when rotating the heat platen</li>
<li><strong>Anti-slip base</strong>: improves machine stability during use</li>
<li><strong>CE/UKCA Certified (SGS Audited)</strong>: certifies compliance with safety and quality standards in the EU and UK, endorsed by SGS</li>
</ul>
<p class="enlace"><a id="saber-mas2"></a> </p>
<p><strong>IMPORTANT NOTES</strong></p>
<ul>
<li>The heat platen is not interchangeable, except in case of failure</li>
</ul>
<p class="enlace"><a id="saber-mas3"></a> </p>
<p><strong>PRESS DIMENSIONS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Press closed (cm)<br></strong></td>
<td class="azul-negrita">42 x 47 x 68</td>
</tr>
<tr>
<td><strong>Press with extended base plate<br>and heat platen rotated (cm)<br></strong></td>
<td class="azul-negrita">42 x 81 x 95</td>
</tr>
<tr>
<td><strong>Press open with base plate closed<br>and heat platen rotated (cm)</strong></td>
<td><span class="azul-negrita">42 x 81 x 68</span></td>
</tr>
<tr>
<td><strong>Packaging (cm)<br></strong></td>
<td class="azul-negrita">42 x 92 x 70</td>
</tr>
<tr>
<td><strong>Net weight (kg)<br></strong></td>
<td class="azul-negrita">62</td>
</tr>
</tbody>
</table>
<p class="enlace"><a id="saber-mas4"></a> </p>
<p><strong>USER MANUAL</strong></p>
<p><a href="https://hidrive.ionos.com/lnk/VePFDA5oR" target="_blank" rel="noopener">Mate 450 Pro-Up heat press (English) (.pdf - 0.19 MB)</a></p>
<p class="enlace"><a id="saber-mas9"></a> </p>
<p><strong>ACCESSORIES</strong></p>
<p><strong>Heated base plate (Ref. 056706)</strong></p>
<ul>
<li>Platen size:<span class="azul-negrita"> 40 x 50 cm</span></li>
<li>Heating area: <span class="azul-negrita">38 x 38 cm</span></li>
<li>Applies heat from below, enhancing heat transfer and reducing pressing time</li>
<li>Facilitates adhesion on thick, multi-layer or textured materials</li>
<li>Suitable for thick vinyls, 3D, patches... Improves adhesion and prevents design distortions</li>
<li>Time and temperature controller for the lower platen</li>
<li>Includes a Teflon sheet and a protective silicone pad <span class="azul-negrita">38 x 38 cm</span></li>
</ul>
<p class="enlace"><a id="saber-mas5"></a> </p>
<p><strong>INTERCHANGEABLE PLATENS</strong></p>
<ul>
<li>Easy fixing with manual screws</li>
<li>Made of cast aluminium</li>
<li>Get other sizes and shapes to customise different items:
<ul>
<li>Labels: small fabrics such as patches, fabric labels, handkerchiefs...</li>
<li>Sleeves: suitable for dressing with sleeves for T-shirts</li>
<li>Trousers: suitable for any leg length</li>
<li>Small garments: suitable for baby clothes, bandanas... or rigid materials</li>
<li>Trainers: allows customising 2 trainers at the same time</li>
<li>Plates: with a size for flat plates up to <span class="azul-negrita">Ø18 cm<br></span></li>
<li>Caps: suitable for pressing 4 caps at the same time</li>
<li>T-shirts: T-shirt-shaped structure. Includes Teflon sheet</li>
<li>Polo shirts: with a slot to place buttons and shirt collars. Includes Teflon sheet</li>
<li>2 sleeves: facilitates pressing 2 sleeves at once. Includes Teflon sheet</li>
<li>4 in 1: platen with slots for pressing garments with zips or buttons, such as jackets, shirts, polo shirts and even labels</li>
<li>Can sleeves: can customise 8 c<span class="item-sku">ooler can sleeves, or similar </span>at once. Does not include silicone pad to facilitate full sleeve printing</li>
<li>Drying platen: for use in techniques such as ink drying <span class="azul-brildor-negrita">DTG</span> and <span class="azul-brildor-negrita">screen printing </span>or the curing in<span class="azul-brildor-negrita"> DTF</span> and<span class="azul-brildor-negrita"> DTG</span>. Iron structure with ventilation holes and porous foam pad that facilitates breathability</li>
</ul>
</li>
</ul>
<p class="enlace"><a id="saber-mas6"></a> </p>
<p><strong>INTERCHANGEABLE PLATEN DIMENSIONS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Ref.</strong></td>
<td style="text-align: center;"><strong>036186</strong></td>
<td style="text-align: center;"><strong>036188</strong></td>
<td style="text-align: center;"><strong>036187</strong></td>
<td style="text-align: center;"><strong>036189</strong></td>
<td style="text-align: center;"><strong>036190</strong></td>
<td style="text-align: center;"><strong>053435</strong></td>
<td style="text-align: center;"><strong>053437</strong></td>
<td style="text-align: center;"><strong>053436</strong></td>
<td style="text-align: center;"><strong>055428</strong></td>
<td style="text-align: center;"><strong>055430</strong></td>
<td style="text-align: center;"><strong>056313<br></strong></td>
<td style="text-align: center;"><strong>053438</strong></td>
<td style="text-align: center;"><strong>053592</strong></td>
</tr>
<tr>
<td><strong>Model</strong></td>
<td style="text-align: center;">Labels</td>
<td style="text-align: center;">1 sleeve</td>
<td style="text-align: center;">Trousers</td>
<td style="text-align: center;">Garments<br>small</td>
<td style="text-align: center;">Trainers</td>
<td style="text-align: center;">Plates<br>(round)</td>
<td style="text-align: center;">Caps</td>
<td style="text-align: center;">T-shirts</td>
<td style="text-align: center;">Polo shirts</td>
<td style="text-align: center;">2 sleeves</td>
<td style="text-align: center;">4 in 1</td>
<td style="text-align: center;">Sleeves<br>cans</td>
<td style="text-align: center;">Drying</td>
</tr>
<tr>
<td><strong>Base<br>plate (cm)<br></strong></td>
<td style="text-align: center;"><span class="azul-negrita">12 x 12</span></td>
<td style="text-align: center;"><span class="azul-negrita">12 x 45</span></td>
<td style="text-align: center;"><span class="azul-negrita">18 x 38</span></td>
<td style="text-align: center;"><span class="azul-negrita">30 x 35</span></td>
<td style="text-align: center;"><span class="azul-negrita">14 x 34</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø18 x 2</span></td>
<td style="text-align: center;"><span class="azul-negrita">38 x 38</span></td>
<td style="text-align: center;"><span class="azul-negrita">40 x 50</span></td>
<td style="text-align: center;"><span class="azul-negrita">40 x 50</span></td>
<td style="text-align: center;"><span class="azul-negrita">40 x 50</span></td>
<td style="text-align: center;"><span class="azul-negrita">40 x 50</span></td>
<td style="text-align: center;"><span class="azul-negrita">40 x 50</span></td>
<td style="text-align: center;"><span class="azul-negrita">40 x 50</span></td>
</tr>
<tr>
<td><strong>Thickness</strong><br><strong>platen (cm)<br></strong></td>
<td style="text-align: center;"><span class="azul-negrita">2</span></td>
<td style="text-align: center;"><span class="azul-negrita">2</span></td>
<td style="text-align: center;"><span class="azul-negrita">2</span></td>
<td style="text-align: center;"><span class="azul-negrita">2</span></td>
<td style="text-align: center;"><span class="azul-negrita">2</span></td>
<td style="text-align: center;"><span class="azul-negrita">1.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">4.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">1.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">1.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">1.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">1.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">0.4</span></td>
<td style="text-align: center;"><span class="azul-negrita">3</span></td>
</tr>
<tr>
<td><strong>Pad<br></strong></td>
<td style="text-align: center;">Silicone</td>
<td style="text-align: center;">Silicone</td>
<td style="text-align: center;">Silicone</td>
<td style="text-align: center;">Silicone</td>
<td style="text-align: center;">Silicone</td>
<td style="text-align: center;">Open<br>Cell</td>
<td style="text-align: center;">Open<br>Cell</td>
<td style="text-align: center;">Open<br>Cell</td>
<td style="text-align: center;">Open<br>Cell</td>
<td style="text-align: center;">Open<br>Cell</td>
<td style="text-align: center;">Open<br>Cell</td>
<td style="text-align: center;">No<br>include</td>
<td style="text-align: center;">Silicone with<br>porous foam</td>
</tr>
<tr>
<td><strong>Cover</strong><br><strong>included<br></strong></td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">Yes</td>
<td style="text-align: center;">Yes</td>
<td style="text-align: center;">Yes</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
<td style="text-align: center;">No</td>
</tr>
<tr>
<td><strong>Thickness<br>pad (mm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">-</span></td>
<td style="text-align: center;"><span class="azul-negrita">12</span></td>
</tr>
</tbody>
</table>
<p class="enlace"><a id="saber-mas7"></a> </p>
<p><strong>TECHNICAL DATA</strong></p>
<table>
<tbody>
<tr>
<td><strong>Type of press</strong></td>
<td>Magnetic / Rotating</td>
</tr>
<tr>
<td><strong>Type of base plate<br></strong></td>
<td>Removable</td>
</tr>
<tr>
<td><strong>Controller<br></strong></td>
<td>LCD V2</td>
</tr>
<tr>
<td><strong>Pressure adjustment<br></strong></td>
<td>Manual</td>
</tr>
<tr>
<td><strong>Base plate dimensions (cm)<br></strong></td>
<td class="azul-negrita">40 x 50</td>
</tr>
<tr>
<td><strong>Maximum pressing thickness (cm)<br></strong></td>
<td class="azul-negrita">2</td>
</tr>
<tr>
<td><strong>Pad thickness (mm)<br></strong></td>
<td class="azul-negrita">10</td>
</tr>
<tr>
<td><strong>Lateral opening angle (º)<br></strong></td>
<td class="azul-negrita">145</td>
</tr>
<tr>
<td><strong>Max. temperature (ºC | ºF)<br></strong></td>
<td><span class="azul-negrita">232 | 450</span></td>
</tr>
<tr>
<td><strong>Maximum pressure (kg)<br></strong></td>
<td><span class="azul-negrita">450<br></span></td>
</tr>
<tr>
<td><strong>Temperature accuracy (ºC)</strong></td>
<td><span class="azul-negrita">±4</span></td>
</tr>
<tr>
<td><strong>Maximum time to activate sleep mode (min)</strong></td>
<td><span class="azul-negrita">120</span></td>
</tr>
<tr>
<td><strong>Timer (Sec)<br></strong></td>
<td class="azul-negrita">0-999</td>
</tr>
<tr>
<td><strong>Voltage (V - Hz)<br></strong></td>
<td class="azul-negrita">110 - 60 | 220 - 50</td>
</tr>
<tr>
<td><strong>Power (W)<br></strong></td>
<td class="azul-negrita">1800 - 2200</td>
</tr>
<tr>
<td><strong>Certifications<br></strong></td>
<td>CE/UKCA (SGS Audited)</td>
</tr>
</tbody>
</table>
<p class="enlace"><a id="saber-mas8"></a> </p>
<p><strong>WARRANTY</strong></p>
<ul>
<li>As stipulated by law in: <a href="https://www.brildor.com/en/general-terms-and-conditions-for-the-sale#warranty" rel="noopener" target="_blank">Terms and Conditions</a></li>
</ul>
https://www.brildor.com/media/catalog/product/p/l/plancha-magneica-giratoria-extraible-mate-450-pro-up-principal-1.jpg
895
instock
0
895
0
0
0
https://www.brildor.com/media/catalog/product/p/l/plancha-magneica-giratoria-extraible-mate-450-pro-up-principal-1.jpg
en_27610
en_42385
en_48866
en_53418
en_54517
en_54530
/Heat Presses
/Heat Presses/Heat Presses & Ovens/Swing-Away Presses
/Heat Presses/Heat Presses & Ovens
2026-07-17T07:55:51+0000
