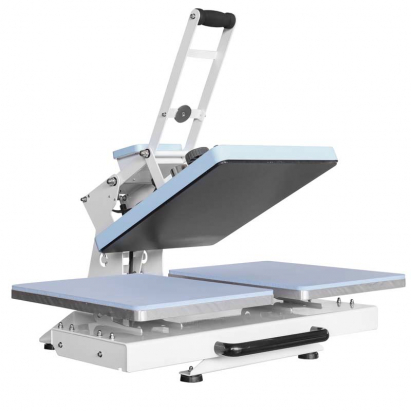

Magnetic Heat Press Double Plate 40x50cm - OtterPro

Thermal press with 2 base plates: press on one while preparing the next print on the other.

  • Manual closure and automatic opening via electromagnet
  • Base plates slide horizontally manually
  • Base plate dimensions: 40 x 50 cm

More information

Availability:
Shown on each product
Product
Price
Availability
Qty
Favorites
OtterPro double plate press 40x50cm Ref: 055485
Magnetic Heat Press Double Plate 40x50cm - OtterPro
€895.00 VAT not included / Each Unit
Availability Immediate: 0 units
Reward Points
Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program

More information about the Magnetic HEat PRess DOuble Plate 40x50cm - OtterPro



INDEX

> Features

> Things to keep in mind

> User manual

> Certificates

> Technical data

> Warranty



FEATURES

  • Double station: two independent work areas, allowing two processes to be carried out simultaneously, increasing productivity
  • Versatile: for customising rigid and textile materials using thermal transfer techniques such as sublimation, DTF, transfer, and textile vinyl
  • Fast and even heating: the press reaches the desired temperature quickly. It distributes heat evenly across the plate surface
  • Semiautomatic: manual closing system and automatic opening via electromagnetic latch
  • Manual pressure adjustment: via wheel. Adjustable according to the thickness and type of material to be pressed
  • Repeats established settings: saves the last parameters for the next pressing
  • Temperature and time control: digital control panel for precise temperature and time adjustment
  • Safe: includes emergency stop, acoustic alert during opening, cooling system, and overload protection relay, heating...
  • Packaging: presented palletised in a wooden box



THINGS TO KEEP IN MIND

  • The temperature can be changed from ºF to ºC by pressing the "SET" button for 5 seconds



USER MANUAL

OtterPro Double Plate Transfer Press (Spanish) (.pdf - 1.3 MB)

OtterPro Double Plate Transfer Press (English) (.pdf - 3.8 MB)



CERTIFICATES

  • CE Certification in compliance with EU regulations. The machine's packaging includes the CE label. We recommend attaching it in a visible area of the press



TECHNICAL DATA

Press model Semi-Automatic Double Station Heat Press
Brand OtterPro
Type of press Electromagnetic/Sandwich
Plug type European
Operation Electromagnet
Controller Digital display
Base plate dimensions (cm) 40 x 50
Maximum thickness to press (cm) 2
Pad thickness (cm) 1
Voltage (V/V) 220
Power (W/W) 2200
Frequency (Hz) 50
Timer (s) 0-999
Temperature range (ºC/ºF) 0-250 / 0-482
DIMENSIONS
Press (cm) 89 x 73 x 50
Packaging (cm) 98 x 82 x 44.2
Gross weight (kg) 101



WARRANTY

More Information
Ref. 953575
Brand Otter
Print area (cm) 40 x 50
Pressure regulation Manual
Opening Automatic
Closing Manual
