€799.00
VAT not included
/ Each Unit

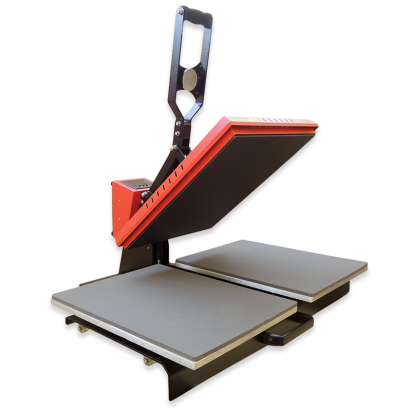

Magnetic Heat Press Brildor UH3.2 Double Plate 40x50cm
Heat press with double base plate. Allows ironing on one plate while preparing the next print on the other, increasing productivity.
Manual closure and automatic opening by electromagnet
Fixed base plates. They slide horizontally
Base plate dimensions: 40 x 50 cm
More information
Availability:
Immediate: more than 5 units
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the Brildor UH3.2 Magnetic Transfer Press with Double 40x50cm Plate
INDEX
> Description
> CE Certificate
> Controller
> Technical Data
> Dimensions
> Warranty
DESCRIPTION
Double station with lateral movement for customising rigid and textile items using heat transfer techniques. Equipped with a handle to move the plates and prevent burns
Semi-automatic. Automatic opening system via electromagnetic lock
Control panel with LCD screen to set temperature and time
Base plates with silicone pad for even distribution of pressure and temperature
Heat plate with anti-burn cover
Manual pressure adjustment via wheel
Spring or hydraulic damper for smooth and safe opening and closing of the press
Robust metal structure
CE certification in compliance with the EU
CE CERTIFICATE
CE Certificate Brildor UH3.2 Double Plate 40x50 Press (UHP-20M-D) (.pdf - 1.157 MB).
CONTROLLER
Instructions for use of digital controller GY-04 (.pdf - 0.164 MB).
TECHNICAL DATA
Press model Brildor UH3.2 Double Plate
Type of press Electromagnetic/Sandwich
Type of base plates Fixed
Operation Electromagnet
Controller Digital LCD screen model GY-04
Base plate dimensions (cm) 40 x 50
Maximum thickness to press (cm) 1.5
Pad thickness (cm) 1
Voltage (V/V) 120 / 220
Amperage (A/A) 11 / 20
Power (W/W) 1600 / 1800
Frequency (Hz) 50-60
Timer (s) 0-999 s
Temperature range (ºC/ºF) 0-225 / 0-437
Temperature accuracy (ºC) ±5
DIMENSIONS
Press (cm) 88 x 73.3 x 41
Packing (cm) 101 x 88 x 58
Net weight (kg) 88
Gross weight (kg) 95
WARRANTY
More Information
Ref.
037623
Net Weight (kg)
88.0000
Gross Weight (kg)
95.0000
Billable Weight (kg)
104.5000
Brand
Brildor
Print area (cm)
40 x 50
Power (W)
1600 / 1800
Pressure regulation
Manual
Opening
Electromagnetic
Closing
Manual
