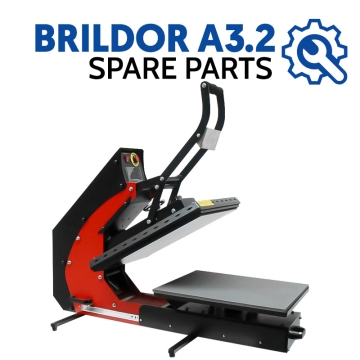

Magnetic Heat Press - Brildor A3.2

Magnetic release heat press machines for textile and rigid thermal transfer.

Manual closing and magnetic auto open
Removable lower platen to avoid burns
Dimensions of the lower platens: 38 x 38 cm (Ref. 028050), 40 x 50 cm (Ref. 009523) or 40 x 50 cm (Ref. 034617)

More information

Availability:

Shown on each product

38 x 38 cm Ref: 028050

€695.00 VAT not included / Each Unit

Availability Immediate: 7 units

40 x 50 cm Ref: 009523

€995.00 VAT not included / Each Unit

Availability Immediate: 16 units

80 x 50 cm Ref: 034617

€1,395.00 VAT not included / Each Unit

Availability Immediate: 5 units

View Price

VAT not included

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More information about the Magnetic Heat Press - Brildor A3.2

INDEX

> Description

> Things to Keep in Mind

> Manual

> Warranty

> Technical Data

DESCRIPTION

Semi-automatic. Simple mechanism that does not require auxiliary equipment for operation
Automatic opening system with electromagnetic latch
Emergency button that opens and deactivates the press with a single press
Control panel with LCD screen to program and control time and temperature
Base plate with cushion for even distribution of pressure and temperature
Manual pressure adjustment with a wheel
Robust metal structure

THINGS TO KEEP IN MIND

The 38 x 38 cm (Ref. 028050) and 40 x 50 cm (Ref. 009523) presses have a silicone cushion
The 80 x 50 cm (Ref. 034617) press has a recycled cotton cushion

MANUAL

Brildor A3.2 Press Instructions Manual.

WARRANTY

As stipulated by law in: General Terms and Conditions for the Sale of Goods

TECHNICAL DATA

Reference	028050	009523	034617
Press Model	Brildor A3.2	Brildor A3.2	Brildor A3.2
Type of Press	Electromagnetic/Sandwich	Electromagnetic/Sandwich	Electromagnetic/Sandwich
Type of Base Plate	Removable	Removable	Removable
Operation	Electromagnet	Electromagnet	Electromagnet
Base Plate Dimensions (cm)	38 x 38	40 x 50	80 x 50
Maximum Thickness to Press (cm)	1.5	1.5	1.5
Cushion Thickness (cm)	1	1	1.5
Lateral Opening Angle	25º	25º	25º
Voltage (V \| Hz)	220 \| 50	220 \| 50	220 \| 50
Power (W)	1800	1800	3600
Timer (s)	0-999	0-999	0-999
Temperature Range (ºC)	0-225	0-225	0-225
Temperature Accuracy	±0.5%	±0.5%	±0.5%
Plug	Male	Male	Three-phase
Packaging (cm)	89 x 54 x 75	102 x 59 x 83	105 x 97 x 95
Net Weight (kg)	57	76	110
Gross Weight (kg)	65	84	163

Additional Information

More Information
Ref.	948872
Brand	Brildor
Print area (cm)	38 x 38, 40 x 50, 50 x 80
Pressure regulation	Manual
Opening	Electromagnetic
Closing	Manual
