More information about Professional Laser Positioners

INDEX

> Description

> Cross Laser Positioner 1 Head (Ref. 032586)

> Cross Laser Positioner 2 Heads (Ref. 057697)

> Grid Laser Positioner (Ref. 056500)

> Usage recommendations

> Technical data

DESCRIPTION

• 2 types of projection: cross for centring the design on a specific point, and grid for delimiting the entire printing area
• Facilitate the positioning of the design before applying heat with the transfer press. Perfect for series production due to their speed and precision
• Serve as a visual guide for following seams or edges in sewing and embroidery work
• Red laser work lamps also useful for other applications such as DIY, crafts, etc.
• Desktop model. Base with 4 silicone feet for stability and to prevent movement
• No assembly required, delivered ready to use

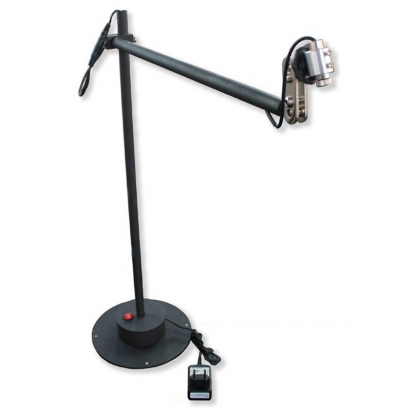

CROSS LASER POSITIONER 1 HEAD (REF. 032586)

• Pointer adjustable in any direction. The movable head allows the laser to rotate 360º and centre the cross on the design
• Height adjustable from 3 to 64 cm to adapt the laser to the work area
• Beam focus by turning the end of the pointer
• Perfect for setting a guide point and aligning with total precision

CROSS LASER POSITIONER 2 HEADS (REF. 057697)

• 2 pointers adjustable in any direction. The movable heads allow the laser to rotate 360º and centre the cross on the design
• Adjustable height to adapt the laser to the work area
• Beam focus by turning the end of the pointer
• Perfect for setting a guide point and aligning with total precision

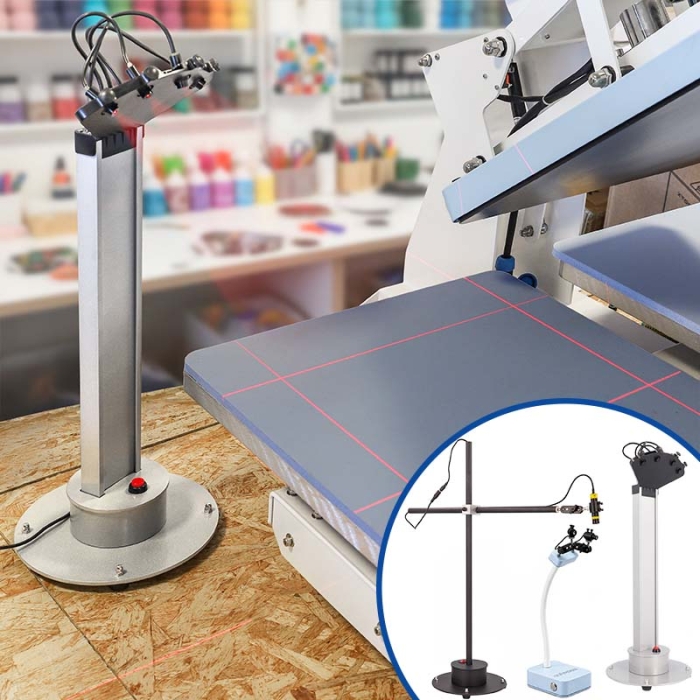

GRID LASER POSITIONER (REF. 056500)

• Easy to use, each pointer moves manually to define a 4-sided polygonal marking area
• Each line is adjusted independently with adjustment wheels
• Structure with a fixed height of 50 cm and fixed head
• Ideal for fitting the design within a clear reference frame

USAGE RECOMMENDATIONS

• Use safety glasses that block the wavelength of the red laser (635-650 nm)
• Avoid placing the positioner near the press or other heat sources to prevent damage
• Do not point the laser directly at the eyes
• It is advisable to protect the skin from the light beam

TECHNICAL DATA
