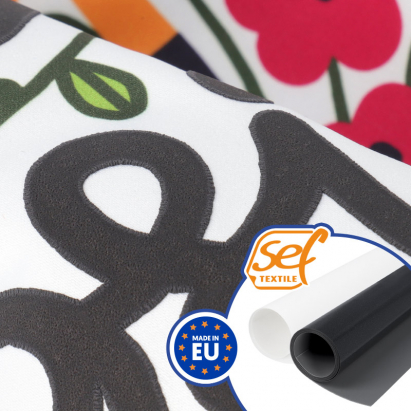

FLEXCUT PUFF is a PU film (polyurethane) water-based for textile transfer on fabrics without water-repellent impregnation.
The support or liner is a self-adhesive PET film (polyester) that acts as a carrier
The raw materials used are eco-friendly, containing no PVC, plasticisers or heavy metals, and are certified according to the ecological standard Oeko-Tex Standard 100 Category I
Manufactured in France by Sef Laval
TECHNICAL CHARACTERISTICS
Vinyl
Water-based polyurethane
Thickness (µ)
from 60 to 500
Support or liner
PET film
Includes carrier
Yes
Fabrics
Polyester, cotton and their blends
Blade for plotter cutting
45º
Peeling
Cold
TRANSFER PARAMETERS
Cutting blade: 30-45º
Temperature: 140 ºC
Time:
10 seconds (ironing)
10 seconds (fixing)
Pressure: 2.5 - 3.0 bar [medium-high pressure]
APPLICATION INSTRUCTIONS
Cut the design in mirror mode with a plotter
Remove the excess vinyl (weeding or peeling operation)
Heat the press to 140 ºC
Place the garment on the press and pre-press for 4-5 seconds to remove wrinkles and moisture from the fabric
Place the vinyl on the garment and protective paper over the vinyl
Press at medium-high pressure for 10 seconds
Remove the liner cold
Press again for 10 seconds with the same parameters
https://www.brildor.com/en/inflatable-textile-vinyl-flexcut-puff-sef-laval27253Inflatable Textile Vinyl - FlexCut Puff by Sef Laval<p><a name="know-more"></a></p>
<h2>More information about the FlexCut Puff Textile Vinyl - Sef Laval</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more0">Technical characteristics</a></p>
<p>> <a href="#know-more2">Transfer parameters</a></p>
<p>> <a href="#know-more3">Application instructions</a></p>
<p>> <a href="#know-more4">Wash resistance</a></p>
<p>> <a href="#know-more6">Weights</a></p>
<p>> <a href="#know-more7">Related posts</a></p>
<p>> <a href="#know-more8">Colour chart and technical sheet</a></p>
<p> </p>
<p><a name="know-more1"></a></p>
<p><strong>DESCRIPTION</strong></p>
<p>FLEXCUT PUFF is a <strong>PU film</strong> (polyurethane) <strong>water-based</strong> for textile transfer on fabrics without water-repellent impregnation.</p>
<ul>
<li>The <strong>support</strong> or <strong>liner</strong> is a <strong>self-adhesive PET film</strong> (polyester) that acts as a carrier</li>
<li>The raw materials used are eco-friendly, containing no PVC, plasticisers or heavy metals, and are certified according to the ecological standard <strong>Oeko-Tex Standard 100 Category I</strong></li>
<li>Manufactured in France by Sef Laval</li>
</ul>
<p> </p>
<p> </p>
<p><strong>TECHNICAL CHARACTERISTICS<br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Vinyl</strong></td>
<td>Water-based polyurethane</td>
</tr>
<tr>
<td><strong>Thickness (µ)</strong></td>
<td>from 60 to 500</td>
</tr>
<tr>
<td><strong>Support or liner</strong></td>
<td>PET film</td>
</tr>
<tr>
<td><strong>Includes carrier</strong></td>
<td>Yes</td>
</tr>
<tr>
<td><strong>Fabrics</strong></td>
<td>Polyester, cotton and their blends</td>
</tr>
<tr>
<td><strong>Blade for plotter cutting</strong></td>
<td>45º</td>
</tr>
<tr>
<td><strong>Peeling</strong></td>
<td>Cold</td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more2"></a></p>
<p><strong>TRANSFER PARAMETERS<br></strong></p>
<ul>
<li>Cutting blade: <span class="azul-negrita">30-45º</span></li>
<li>Temperature: <span class="azul-negrita">140 ºC</span></li>
<li>Time:
<ul>
<li><span class="azul-negrita">10 seconds </span>(ironing)<span class="azul-negrita"><br></span></li>
<li><span class="azul-negrita">10 seconds </span>(fixing)</li>
</ul>
</li>
<li>Pressure: <span class="azul-negrita">2.5 - 3.0 bar</span> [medium-high pressure]</li>
</ul>
<p> </p>
<p><a name="know-more3"></a></p>
<p><strong>APPLICATION INSTRUCTIONS<br></strong></p>
<ul>
<li>Cut the design in <strong>mirror mode</strong> with a plotter</li>
<li>Remove the excess vinyl (weeding or peeling operation)</li>
<li>Heat the press to <span class="azul-negrita">140 ºC</span></li>
<li>Place the garment on the press and pre-press for <span class="azul-negrita">4-5 seconds</span> to remove wrinkles and moisture from the fabric</li>
<li>Place the vinyl on the garment and protective paper over the vinyl</li>
<li>Press at medium-high pressure for <span class="azul-negrita">10 seconds</span></li>
<li>Remove the liner <strong>cold</strong></li>
<li>Press again for <span class="azul-negrita">10 seconds</span> with the same parameters</li>
</ul>
<p> </p>
<p><a name="know-more4"></a></p>
<p><strong>WASH RESISTANCE</strong></p>
<ul>
<li>Wash resistance: max. <span class="azul-negrita">40 ºC</span></li>
</ul>
<p> </p>
<p><a name="know-more6"></a></p>
<p><strong>WEIGHTS </strong></p>
<table>
<tbody>
<tr>
<td>Roll (cm/m)</td>
<td style="text-align: center;"><span class="azul-negrita">25 x 1 </span></td>
<td style="text-align: center;"><span class="azul-negrita">50 x 2 </span></td>
<td style="text-align: center;"><span class="azul-negrita">50 x 10 </span></td>
</tr>
<tr>
<td>Weight (kg)</td>
<td style="text-align: center;"><span class="azul-negrita">0.084</span></td>
<td style="text-align: center;"><span class="azul-negrita">0.288</span></td>
<td style="text-align: center;"><span class="azul-negrita">1.8</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more7"></a></p>
<p><strong>RELATED POSTS</strong></p>
<p><a title="Cutting vinyl: How to choose the one your garment needs" href="https://www.brildor.com/blog/es/vinilo-textil-de-corte-como-elegir-el-que-tu-prenda-necesita/" target="_blank" rel="nofollow noopener">Cutting vinyl: How to choose the one your garment needs</a></p>
<p><a title="Printing t-shirts with vinyl: easier than ever!" href="https://www.brildor.com/blog/es/estampar-camisetas-con-vinilo-mas-facil-imposible/" target="_blank" rel="nofollow noopener">Printing t-shirts with vinyl: easier than ever!</a></p>
<p><a title="The most fashionable looks for this summer with textile vinyl" href="https://www.brildor.com/blog/es/los-looks-mas-de-moda-para-este-verano-con-el-vinilo-textil/" target="_blank" rel="nofollow noopener">The most fashionable looks for this summer with textile vinyl</a></p>
<p> </p>
<p><a name="know-more8"></a></p>
<p><strong>COLOUR CHART AND TECHNICAL SHEET<br></strong></p>
<p><a title="FlexCut Puff Colour Chart and Technical Sheet" href="https://www.brildor.com/media/upload/descargas/Ficha_Tecnica_Vinilo_Textil_FlexCut_Puff_Sef_Laval.pdf" target="_blank" rel="nofollow noopener">FlexCut Puff Colour Chart and Technical Sheet (.pdf - 0.35 MB)</a></p>https://www.brildor.com/media/catalog/product/v/i/vinilo-textil-hinchable-50cm-d5.jpg59.45instock059.45000https://www.brildor.com/media/catalog/product/v/i/vinilo-textil-hinchable-50cm-d5.jpg/Vinyl/Vinyl/Cutting Heat Transfer Vinyl2021-07-24T06:06:21+0000
SPECTACULAR GARMENTS with 3D PUFF HEAT TRANSFER VINYL
