€1,695.00
VAT not included
/ Each Unit

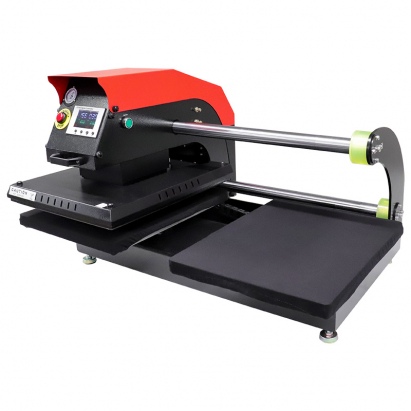

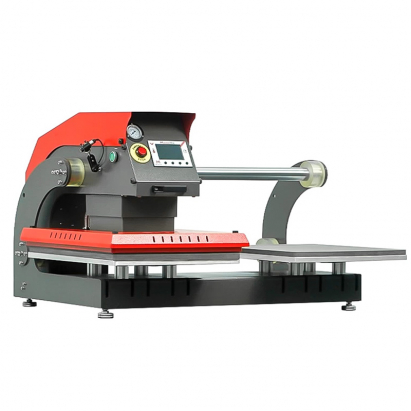

Brildor Pneumatic Heat Press Double Plate 40x50cm
Automatic heat press with 2 base plates. Increases production, saving time and effort in the customisation of rigid materials and textiles.
Automatic closing and opening, operated pneumatically
Manually horizontally sliding heat plate
Includes 2 laser aligners
Base plate dimensions: 40 x 50 cm
Requires a compressor, not included.
More information
Availability:
Immediate:
1 units Expected entries:
19/06/25:
4 units
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the Brildor Pneumatic Heat Press with Double Plate 40x50cm
INDEX
> Description
> Manual
> Technical Data
> Measurements
DESCRIPTION
Double station: two independent working areas, allowing two processes to be carried out simultaneously, increasing productivityVersatile: for customising rigid and textiles using heat transfer techniques such as sublimation , DTF , transfer and textile vinyl 2 integrated laser aligners: indicate the exact position to place objects on the base plate, speeding up the pressing processSliding heat plate: with a handle to move it horizontally over the base platesTemperature and time control: control panel with LCD screen to adjust pressing parametersEven pressure distribution: base plates with silicone pads for uniform distribution of pressure and temperatureAdjustable air pressure: via manometer adjustmentSteel structure: sturdy and stable, designed to withstand daily useSafety: automatic closure by simultaneous pressing of 2 buttons and emergency stop button on the front. Also includes rubber stops to cushion the heat plateCE Certification: complies with EU quality and safety standards
MANUAL
Brildor Pneumatic Double Plate Press Instructions Manual (.pdf - 12 MB).
TECHNICAL DATA
Type of press Pneumatic/Vertical
Type of base plates Fixed
Operation Air piston
Controller Digital LCD screen model GY-06
Base plate dimensions (cm) 40 x 50
Heat plate dimensions (cm) 43.7 x 53
Maximum thickness to press (cm) 3.2
Voltage (V/V) 120 / 220
Power (W/W) 1200 / 1800
Timer (s) 0-999
Temperature range (ºC) 0-225
MEASUREMENTS
Press (cm) 103 x 81 x 60
Packaging (cm) 121 x 99 x 75
Net weight (Kg) 97
Gross weight (Kg) 160
More Information
Ref.
035484
Gross Weight (kg)
160
Billable Weight (kg)
213.0000
Brand
Brildor
Print area (cm)
40 x 50
Power (W)
1200 / 1800
Pressure regulation
Gauge
Opening
Pneumatic
Closing
Pneumatic
