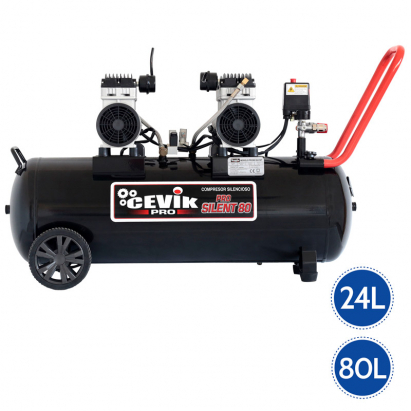

PRO SILENT Air Compressors
PRO SILENT Air Compressors
24 and 80 litre air compressors for transfer presses or other machines with pneumatic systems.
Quiet and easy to transport
Dual air outlet
To install them on the machine, a connector and tube are required. These are purchased separately
More information
More information about PRO SILENT Air Compressors
INDEX
> Description
> Things to keep in mind
> Dimensions
> Accessories
> Instruction manual
> Technical data
DESCRIPTION
Oil-free technology. This makes them quieter and more eco-friendly than other compressors. It also means they require minimal maintenance and have a longer lifespan.Large air storage tank
Can be easily transported in any position, even lying down
Also useful for indoor and outdoor tasks, such as blowing or inflating
THINGS TO KEEP IN MIND
The 80-litre compressor (Ref. 036881) can operate with a single 1.5hp motor if the second compressor head is disconnected, achieving a suction of 175 L/min
DIMENSIONS
Reference 036880 036881
Compressor (cm) 60 x 56 x 34 102 x 70 x 44
Packaging (cm) 66 x 60 x 29 110 x 73 x 37
ACCESSORIES
These compressors require 2 accessories to connect them to the machine:
8 mm Connector - Ref. 037026
Connects the compressed air hose to the compressor
Material: metal
Dimensions: 6.1 x 1.7 x 1.7 cm
8 mm Hose - Ref. 037025
Connects the pneumatic press that requires compressed air to the PRO SILENT air compressor
Directly connects to the pressure gauge of the transfer press
Material: white plastic
Sales unit: linear metre with a diameter of 8 cm
INSTRUCTION MANUAL
PRO SILENT 24 Litre Air Compressor (.pdf - 9.5 MB)
PRO SILENT 80 Litre Air Compressor (.pdf - 5.1 MB)
TECHNICAL DATA
Reference 036880 036881
Capacity (L) 24 80
Voltage (V) 230 230
Pressure (BAR) 8 8
Motor (horsepower) (HP) 1.5 3 (1.5 + 1.5)
Airflow (L/min) 150 350
Revolutions per minute (rpm) 1400 1200
Noise level (dB) 62 68
