€499.00
VAT not included
/ Each Unit

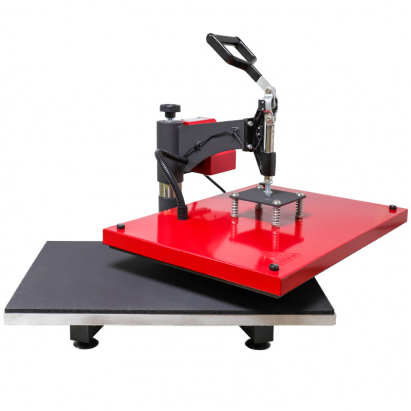

Swing Away Heat Press - Brildor XH3805B - 60x40cm
Swing head action heat press for printing textiles and hard surfaces using heat transfer techniques like dye sublimation , transfer , vinyl, and even DTF .
Manual opening and closing
Fixed lower platen
360° swivel heating platen to prevent burns
Platens dimensions: 60 x 40 cm
More information
Availability:
Immediate:
18 units Expected entries:
12/09/25:
10 units
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the Brildor XH3805B swing-away heat press 60x40cm
INDEX
> Description
> User manual
> Technical details
> Dimensions
> Warranty
DESCRIPTION
Suitable for DTF and screen printing . When the pressure is set to minimum values, the platen does not close completely, allowing the inks to cure more easily
LCD digital display with time and temperature setting with acoustic warning
Automatic shut-off. Can be set for 0-120 minutes
Ergonomic long arm handle
Sturdy frame with 4 suction cups on the base
USER MANUAL
User manual Brildor XH-3805B heat press (.pdf - 0.41 MB)
TECHNICAL DETAILS
Models Brildor XH3805B
Press type Manual/Swing away
Lower platen type Fixed
Controller LCD display IT9300 model
Lower platen dimensions 60 x 40 cm
Max. thickness to press 5 cm
Side opening angle 360º
Mat thickness 1 cm
Voltage 220 V
Power 2400 W
Temperature range 0-232ºC
Timer 0-999 s
Heating time 15 min
DIMENSIONS
Open press 60 x 61 x 55 cm
Closed press 60 x 47.5 x 55 cm
Packaging 69 x 50 x 45 cm
Heat press weight 37 kg
Packaging weight 49 kg
WARRANTY
More Information
Ref.
041298
Net Weight (kg)
37
Gross Weight (kg)
49
Billable Weight (kg)
54.0000
Print area (cm)
40 x 60
Opening
Manual
Closing
Manual
