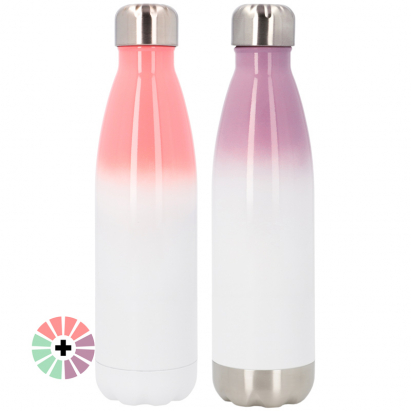

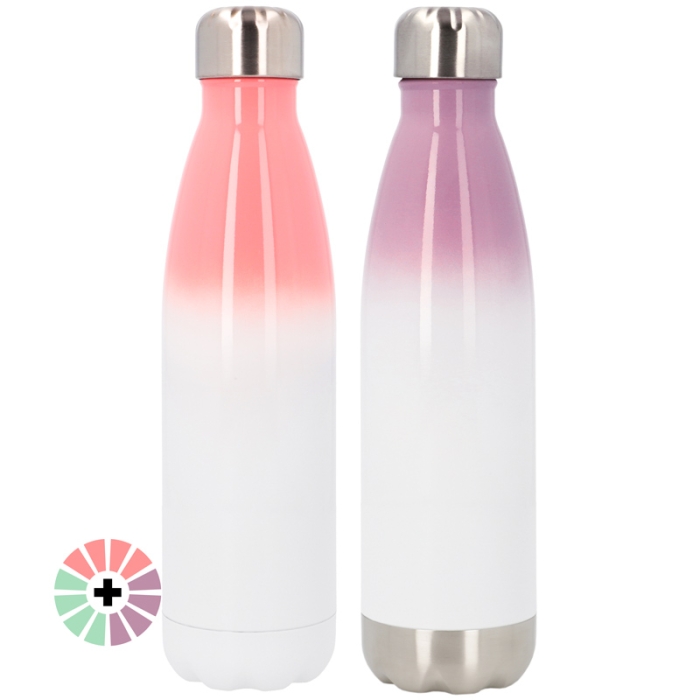

Sublimation Stainless Steel Water Bottle - Gradient Effect - 500ml

Sublimation Stainless Steel Water Bottle - Gradient Effect - 500ml

Reusable 500 ml thermos bottles, customisable by sublimation.
Double walled to keep liquid hot or cold.

  • Stainless steel with high quality Orca coating
  • Can be sublimated with a cup iron or oven
  • Printing area: 22,5 x 24 cm

More information

Reward Points
Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program

More information about the 500ml stainless steel sublimation gradient water bottle

INDEX

> Description

> Things to keep in mind

> Dimensions

> Recommended instructions and parameters for sublimation printing

DESCRIPTION

  • 304 stainless steel interior and 201 stainless steel exterior
  • Non-drip stopper with silicone seal and screw cap
  • Base in white colour. Purple bottle with silver base (Ref. 055281)
  • Supplied in individual white box

THINGS TO KEEP IN MIND

  • The colour of the thermos varies slightly depending on the incidence of light
  • Sublimatable with cup iron and oven using clamps, shrink bags or silicone foils
  • Due to the irregular shape of the thermo, sublimating the entire thermo can be a complex task. For ease of use, it is recommended to sublimate only the cylindrical body of the thermo

DIMENSIONS

Capacity (oz ml) 17 ≈ 500
Print area (cm) 22.5 x 24
Thermos flask (cm) Ø7 x 26.5
Cap (cm) Ø4 x 5
Base (cm) Ø6 x 2.7
Weight (g) 304

RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING

Parameters provided as a guideline. It is recommended to carry out preliminary tests in order to make the necessary adjustments before starting production.

WITH A MUG HEAT PRESS

  • Print the design in mirror image
  • Preheat the press to 180-200ºC
  • Remove the lid from the bottle
  • Hold the paper's printed side against the bottle and fix it with heat-resistant tape
  • Place the bottle inside the press
  • Press for 35 seconds, medium pressure
  • Remove the newly printed water bottle using a protective glove
  • Carefully peel off the paper

WITH A SUBLIMATION OVEN

  • Print the design in mirror image
  • Preheat the oven to 200ºC
  • Remove the lid from the bottle
  • Hold the paper's printed side against the bottle and fix it with heat-resistant tape
  • Place and adjust the wrap around it or slide the bottle into a heat shrink bag and create a vacuum with a heat gun. You can also use a silicone sheet
  • Sublimate in the oven for 6-7 minutes
  • Remove the newly printed water bottle using a protective glove
  • Carefully peel off the paper

Additional Information
Ref. 948801
Dimensions (mm) Ø70 x 265
Print area (mm) 225 x 240
Surface material Stainless steel
Items Bottles
Accessory details Cap
Marking techniques Dye sublimation
