They are presented in an individual box of white cardboard

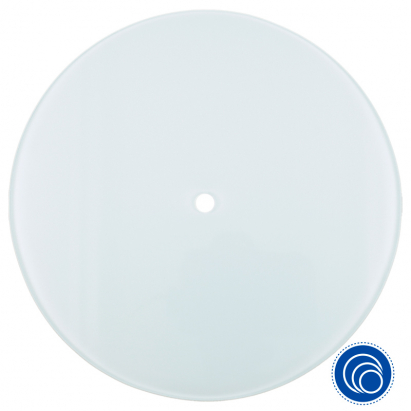

The hole to place the mechanism is located in the centre of the panel
THINGS TO KEEP IN MIND
They are powered by one battery AA R6. Must be purchased separately
Even if the panel includes presentation box, in the Related Products you can find more gift boxes. You also have the machinery of clock with hands of different shapes and sizes
RECOMMENDATIONS FOR CHOOSING MECHANISMS WITH WATCH HANDS
When choosing the hands of the clock, take into account the dimensions of the minute hand. Its length should be less than half of the diameter of the panel so that it does not protrude from it.
The dimensions of the shaft or stud of the mechanism of the clock must be compatible with it:
Panel thickness, so that the end of the stud can be tightened at the rear. It is recommended that the length of the stud be at least 4 mm greater than the thickness of the panel
Stud diameter hole of the panel so that it can be inserted into the stud. It is recommended that the diameter of the stud is at least 2 mm greater than the thickness of the hole
DIMENSIONS
Reference no
027246
000105
027422
030799
Shape
Round
Round
Square
Heart
Panel (cm)
Ø20
Ø28
28.5 x 28.5
35.2 x 28.5
Hole (cm)
Ø1
Ø1
Ø1
Ø1
Centre distance (cm)
10
14
14
12.5 x 16
Print area (cm)
Ø20
Ø28
28.5 x 28.5
35.2 x 28.5
Thickness (cm)
0.4
0.4
0.4
0.4
Weight (g)
29
61
79
71
RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING
Parameters given for guidance only. It is recommended to carry out preliminary tests in order to make the necessary adjustments before starting production.
Print the design in direct mode
Preheat the press to 200 ºC
Place the panel on the base of the press and the printed part of the paper on the white part
Close the press at medium pressure for 240 seconds
With the help of a protective glove remove the panel from sublimated
