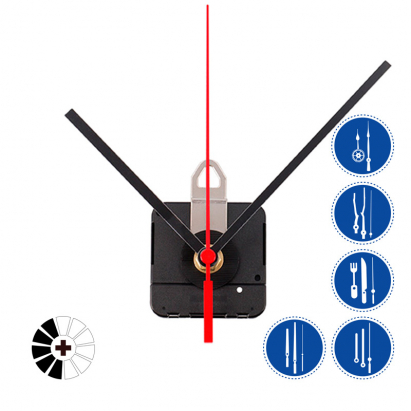

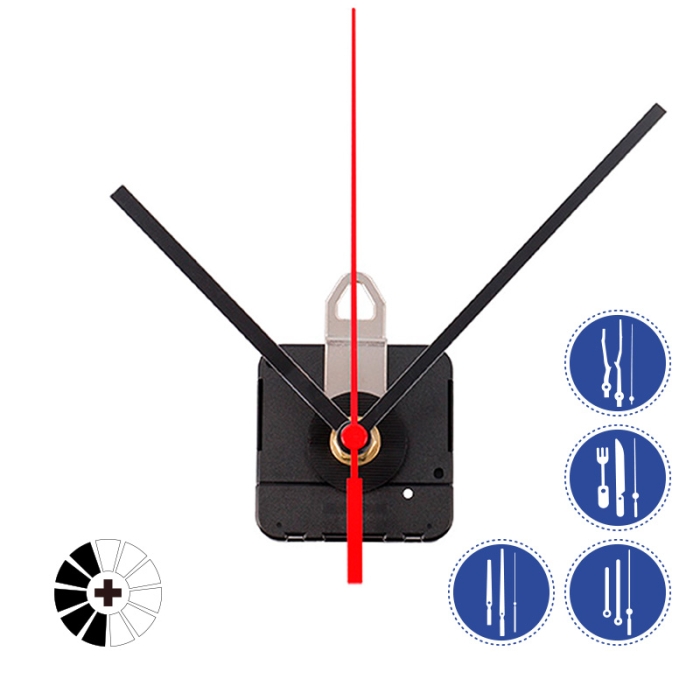

Clock Mechanisms with Hands
Mechanisms with hands to convert panels into clocks.
For panels up to 10 mm thick (E)
Minute hands with a circular sweep from Ø70 mm to Ø400 mm
Hands available in various shapes, materials, and colours
Operates with 1 AA battery (not included)
More information
How to choose the right mechanism?
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about our Clock Mechanisms with Hands
CONTENTS
> Description
> Points to consider
> How to choose the right mechanism with hands?
> Assembly instructions
> Technical specifications of the mechanisms
> Other mechanism measurements
DESCRIPTION
Also useful as replacement parts for other clocks
Includes the mechanism housing, hanger, rubber washer, brass washer, hex nut and hands
The reverse side of the aluminium hands is silver-coloured
The second hand has a press-fit cap to secure all the hands to the movement
Supplied disassembled. Easy to install, no tools required
Batteries are not included with the mechanisms. You can purchase them in the Related Products section
POINTS TO CONSIDER
The hands of mechanisms Ref. 042226 and Ref. 042228 have special shapes. In all other mechanisms, the hands are straight
Mechanisms with white hands have a second hand of the same colour
The gear-shaped hands mechanism does not include a second hand (Ref. 042228)
The hanger and rubber washer are not included in mechanisms Ref. 054943 and 054945
Mechanisms with Ref. 045358 do not include a rubber washer or a brass washer
In mechanism Ref. 056339, the hanger is attached to the housing; it is not a separate piece
To prevent the mechanism's spindle from protruding from the front of the clock face, we suggest adding extra washers to the spindle before installation (see Related Products )
HOW TO CHOOSE THE RIGHT MECHANISM WITH HANDS?
Calculate the maximum DIAMETER of the circle that fits on your clock face (this is straightforward for round faces, but may require measuring for other shapes). Please note that the mechanism diameters should not be larger than this. Choose the tab that best suits your needs
The THICKNESS of the panel you are using is important. The first number after the "E" indicates the length of the mechanism's spindle (in mm). It is recommended that this be at least 1 mm longer than the panel's thickness
Consider the diameter of the HOLE in the panel, which must be suitable for the spindle diameter, indicated by the second number after the "E" (also in mm)
Choose your preferred hand MATERIAL : aluminium, plastic, etc.
Consider the COLOUR of the hands based on the background image you will print on the panel, to ensure they contrast well and are clearly visible
ASSEMBLY INSTRUCTIONS
TECHNICAL SPECIFICATIONS OF THE MECHANISMS
In the reference name, you will find the following data:
From (mm)
Ø70
Ø70
Ø70
Ø130
Ø158
Ø158
Ø158
Ø158
Ø158
Ø280
Ref.
042231
054943
054945
042226
042232
056339
037828
045358
038576
042228
Shape
Straight
Straight
Straight
Cutlery
Straight
Straight
Straight
Straight
Straight
Gear
Colour
White
Black
White
Black
Black
Black
White
Black
White
Black
Minute hand() (mm)
Ø50
Ø55
Ø55
Ø65
Ø79
Ø83
Ø85
Ø85
Ø100
Ø200
Spindle (mm)
9xØ8
11xØ8
11xØ8
9xØ8
9xØ8
11xØ8
7xØ8
11xØ8
7xØ8
9xØ8
Material
Aluminium
Plastic
Plastic
Aluminium
Aluminium
Plastic
Aluminium
Plastic
Aluminium
Aluminium
() The minute hand measurement refers to the diameter of the circle it sweeps.
OTHER MECHANISM MEASUREMENTS
Ref.
042231
054943
054945
042226
042232
056339
037828
045358
038576
042228
Max. panel thickness (mm)
8
10
10
8
8
10
5
10
5
8
Minute hand()(mm)
2x50
4x55
4x55
9x65
3x79
4x83
6x85
5x85
5x100
13x120
Hour hand() (mm)
2x30
6x44
6x44
13x44
3x60
4x65
7x65
5x63
7x80
65x135
Second hand() (mm)
1x53
1x57
1x57
1x63
1x80
1x90
1x81
2x90
1x96
-
Mechanism housing (mm)
55 x 55 x 33
55 x 55 x 35
55 x 55 x 35
55 x 55 x 33
55 x 55 x 33
55 x 68 x 35
55 x 55 x 30
55 x 55 x 35
55 x 55 x 30
55 x 55 x 33
() The length of the hands is measured from the centre of the hole to the tip.
More Information
Ref.
951942
Colour
White, Black
Surface material
Aluminium, Plastic
Accessory details
Hanger
https://www.brildor.com/en/clock-mechanisms-hands
51942
Clock Mechanisms with Hands
