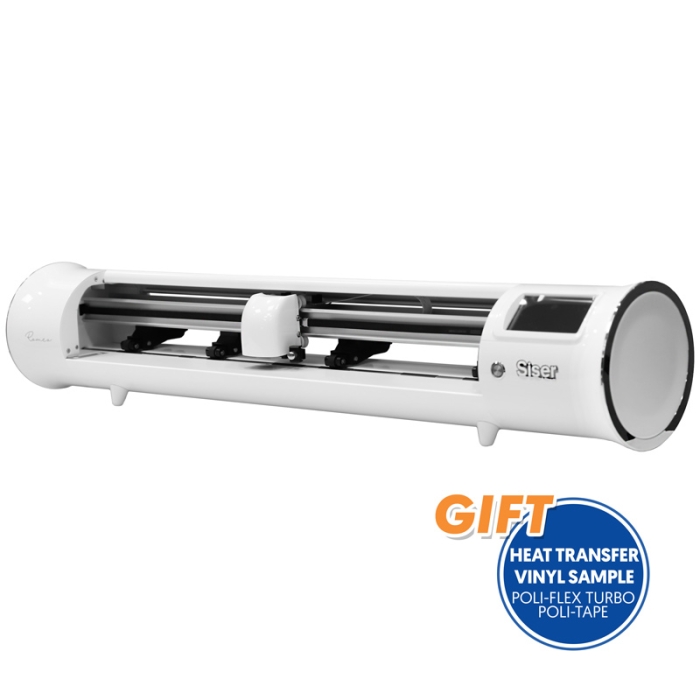

Siser Romeo - Vinyl Cutter
High precision plotter for cutting even the smallest and most complex details.Siser Romeo is perfect for professional projects, in large formats up to 60 cm wide.
Maximum cutting speed and force: 600 mm/s and 800 gf
Cuts almost 5 m in length without the need for a mat
Maximum cutting thickness: 1 mm
Leonardo Design software included
More information
GIFT
With your purchase of the Siser Romeo, you will receive a free sample pack with 52 sheets of Poli-Flex Turbo vinyl by Poli-Tape .
Our availability is not enough?
Let us know how much you need
I WANT MORE
PLOTTER DE CORTE Siser Juliet & Romeo: análisis y pruebas
More information about the Siser Romeo - Vinyl Cutter
INDEX
> Performance
> Things to keep in mind
> What'sincluded in the cutting machine Siser Romeo?
> User manual
> Tech specs - Comparison of the cutting machines siser
PERFORMANCE
Perfect for: Compatible materials: Innovative design: robust capsule-style structure with built-in dimmable LED lightMaximum precision: cuts details fine and complex cuts with millimeter precision thanks to the integrated recording chamber in the cutter headAmple cutting length: suitable for cutting materials up to 4.57 m long continuously without cutting matTouch screen : easy to use, create your own pre-sets to cut materials quickly and easily. Work from the panel control panel without the need for a computerTest cut function: allows you to get the perfect settings before you start working without wasting vinylAdjustable pressure rollers: with high gripping force to adapt to the thickness and width of the material. Adjustable via rear tabBase roll holder included : no assembly required. Accepts all types of roll media for maximum performanceCut without blanket: allows you to cut materials without the need for a cutting machineDraw and write: by using the drawing and writing adaptor pensLeonardo Design Studio software: multiple features y tools to create and edit designs. Includes an online library of designs and instructional videosConnectivity: Wi-Fi connection for transferring files from your computer or via the Internet USB power cordWarranty : 3 years for manufacturing defects
THINGS TO KEEP IN MIND
You can download software Leonardo Design Studio for free here . Compatible with Windows and MacOS
The warranty does not cover: consumables, moving parts, or any other element exposed to wear and tear. Nor does it cover breakage resulting from knocks, accidents, misuse or abuse
WHAT DOES THE SISER ROMEO VINYL CUTTER INCLUDE?
2 Cemented carbide 45º blades
1 Cemented carbide 60º blade
1 Blade holder
1 Adaptor for markers
1 High-quality cutting mat tack 30.5 x 30.5 cm
1 Roll feeder
1 Sheet of protective paper
2 Sheets of PS Film
1 Instruction manual ES-EN-FR
1 Cable USB
1 AC adapter
USER MANUAL
Siser Romeo - Vinyl Cutter (.pdf - 0,63 MB)
Siser Romeo - Vinyl Ciutter Data Sheet (.pdf - 0,19 MB)
TECH SPECS - COMPARISON OF SISER PLOTTERS
Model
Romeo
Juliet
Ref. BRILDOR
054127
054126
Motor
Stepper motor
Stepper motor
NO. print heads of cut
1
1
Cutting speed (mm/s)
600
600
Max. movement speed (mm/s)
700
700
Cutting force (gf)
800
800
Maximum cutting thickness (mm)
1
1
Max. cutting width (with cutting mat) (cm)
30,5
30,5
Max. cutting length (with cutting mat) (cm)
60
60
Max. cutting width (without cutting mat) (cm)
62,5
32
Max. cutting length (w/o cutting mat) (cm)
457
457
Cutting accuracy (mm)
±0,01
±0,01
Repetition accuracy (mm)
0,082
0,082
Noise level (in use) (dB)
≤ 78
≤ 78
Noise level (standby) (dB)
≤ 48
≤ 48
Ambient temperature (°C)
5 - 35
5 - 35
Power (W)
100 100
Voltage (V)
240 240
Power consumption (V)
24
24
Memory Processor (MB)
128
128
Supported operating systems
Windows 10+,
Windows 10+,
Connectivity
Wi-Fi and USB
Wi-Fi and USB
Supported files
SVG,
SVG,
Plotter dimensions (cm)
92 x 18 x 20 cm
60,5 x 18,5 x 19
Packaging (cm)
100 x 30,5 x 28,5
68 x 18.5 x 18.5 x 27.5
Net weight (kg)
9,5
7
Gross weight (kg)
16,1
11,8
