More information about the Blade Holders and Blades - Siser Cutting Plotters

INDEX

> Description

> Things to Keep in Mind

> Recommendations

> Specifications

> Measurements

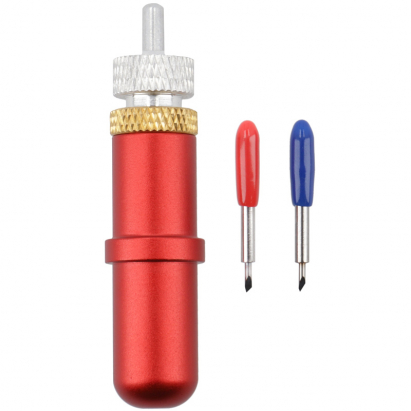

DESCRIPTION

• Cutting head with cemented carbide blades, featuring high hardness and good wear resistance
• Anodised aluminium blade holder with adjustable needle height
• Easily replace the blade, as the internal magnet of the blade holder allows for quick fitting

THINGS TO KEEP IN MIND

• Ensure the blade is correctly fitted into the blade holder
• The greater the blade angle, the deeper it will penetrate vertically, allowing for cutting thicker materials

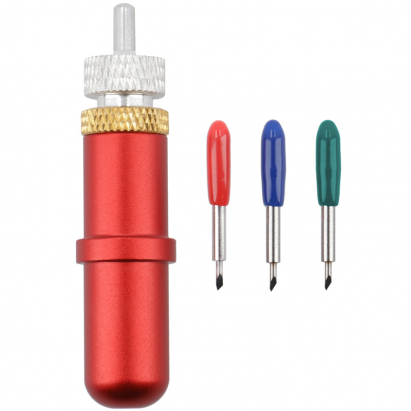

• The colour of the protective cap helps identify the blades: red for 45º, blue for 60º, and green for Deep Cut
• Conduct preliminary tests on blade placement and adjustment before starting production

RECOMMENDATIONS

• Keep the blade and the inside of the blade holder clean. Accumulation of debris inside can hinder rotation and affect the cutting process
• Make cuts with the appropriate depth. Avoid cutting through the vinyl carrier paper or liner
• If the blade is correctly adjusted, you will extend its lifespan
• To adjust the blade height, turn the inner ring with the main screw and tighten the ring to lock the blade

SPECIFICATIONS

MEASUREMENTS
