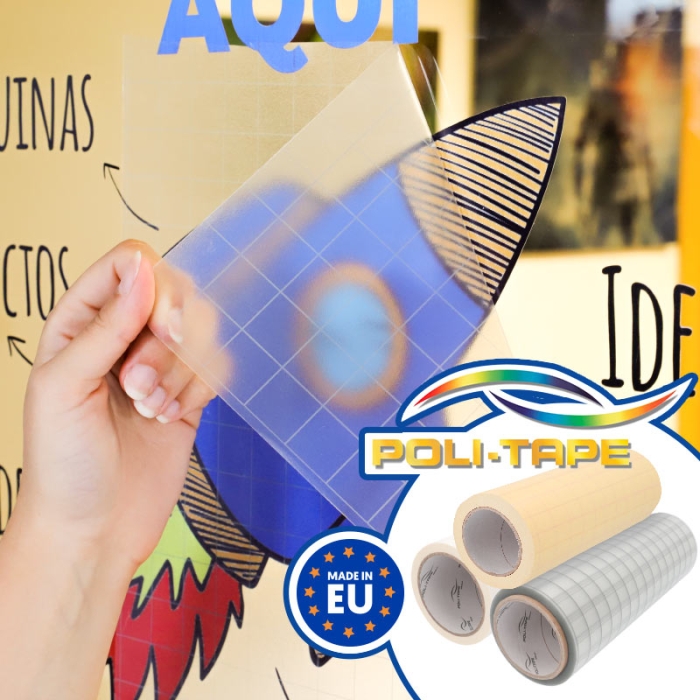

Poli-Tape Transfer Tapes for Sign Vinyl
Poli-Tape Transfer Tapes for Sign Vinyl
Range of transfer tapes for the application of all types of sign vinyl, both cut and printed.
Also to be used as masking tape in operations prior to laser cutting.
- Choose the transfer tape according to the level of adhesion you need
- Select the roll format you desire
If you are unsure about the type of transfer tape you need, we have prepared this information to help you decide.
https://www.brildor.com/en/poli-tape-transfer-tapes-sign-vinyl
44647
Poli-Tape Transfer Tapes for Sign Vinyl
<p class="enlace"><a id="know-more"></a> </p>
<h2 class="enlace">More information about Poli-Tape Transfer Tapes for Sign Vinyl</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p><strong>> </strong><a href="#know-more0">Description</a></p>
<p><strong>> </strong><a href="#know-more10">Things to keep in mind</a></p>
<p>> <a href="#know-more1">How to choose the carrier?</a></p>
<p>> <a href="#know-more2">Instructions for use</a></p>
<p>> <a href="#know-more7">Sizes</a></p>
<p>> <a href="#know-more4">Related posts</a></p>
<p>> <a href="#know-more5">Technical data sheets</a></p>
<p>> <a href="#know-more6">Safety data sheet</a></p>
<p> </p>
<p class="enlace"><a id="know-more0"></a> </p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li>They fit perfectly on surfaces without producing curves, wrinkles, or stretches</li>
<li>Applicable transfer tape on wet surfaces</li>
<li>They maintain their application properties even after a long storage period</li>
<li>Made in Germany by Poli-Tape</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more10"></a> </p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>Carriers with low-adhesive acrylic differ because PT 160 G is ruled with squares and PT 165 is also ruled with squares and has a liner</li>
<li>They are supplied in rolls with a cardboard mandrel (inner tube) of <span class="azul-negrita">Ø7.5 cm</span>, except for Ref. 040977 with a <span class="azul-negrita">Ø3.8 cm</span> mandrel</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>HOW TO CHOOSE THE CARRIER?<br></strong></p>
<p>To quickly identify the carrier that suits you best, we explain all the factors that influence that decision:</p>
<table>
<tbody>
<tr>
<td><strong>1st</strong></td>
<td><strong>Adhesion level: </strong>it will depend on the surface on which the vinyl is to be applied. On smooth non-porous surfaces, such as glass, the adhesion of the vinyl is very high and allows us to use a high-adhesion carrier. On rough and porous surfaces, such as a wall, use a low-adhesion carrier to avoid tearing the vinyl</td>
</tr>
<tr>
<td><strong>2nd</strong></td>
<td><strong>Vinyl texture: </strong>it is decisive in choosing the degree of adhesion. Rough or matte vinyl complicates the adhesion of the carrier and requires it to have more adhesive strength</td>
</tr>
<tr>
<td><strong>3rd</strong></td>
<td><strong>Transparency: </strong>facilitates the positioning of the vinyl on the surface to which it will be applied. Available in transparent film and translucent paper. Some film carriers are offered with a square grid for the same practical reason</td>
</tr>
<tr>
<td><strong>4th</strong></td>
<td><strong>Ecological reasons:</strong> used paper carrier is a more easily manageable waste than film. On the other hand, film is usually easier to recycle</td>
</tr>
</tbody>
</table>
<p>If after these considerations you are still unsure, we recommend starting with PT 160 or PT 133.</p>
<p> </p>
<p>Consult the following <strong>comparison table</strong> for their performance to select the one that suits you best:</p>
<p> </p>
<table>
<tbody>
<tr>
<td><strong>Type</strong></td>
<td style="text-align: center;"><strong>PT 160</strong></td>
<td style="text-align: center;"><strong>PT 160 G</strong></td>
<td style="text-align: center;"><strong>PT 165</strong></td>
<td style="text-align: center;"><strong>PT 122</strong></td>
<td style="text-align: center;"><strong>PT 133</strong></td>
</tr>
<tr>
<td>
<p><strong>Adhesion </strong></p>
</td>
<td style="text-align: center;">Low</td>
<td style="text-align: center;">Low</td>
<td style="text-align: center;">Low</td>
<td style="text-align: center;">Medium</td>
<td style="text-align: center;">High</td>
</tr>
<tr>
<td><strong>Adhesive strength</strong><br><strong>±10% </strong><strong>(N/cm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">1.10</span></td>
<td style="text-align: center;"><span class="azul-negrita">1.10</span></td>
<td style="text-align: center;"><span class="azul-negrita">1.10</span></td>
<td style="text-align: center;"><span class="azul-negrita">2.10</span></td>
<td style="text-align: center;"><span class="azul-negrita">2.40</span></td>
</tr>
<tr>
<td><strong>Use</strong></td>
<td style="text-align: center;">Universal</td>
<td style="text-align: center;">Universal</td>
<td style="text-align: center;">Universal</td>
<td style="text-align: center;">Universal</td>
<td style="text-align: center;">Matte or<br>sightly rough vinyl</td>
</tr>
<tr>
<td><strong>Transparency</strong></td>
<td style="text-align: center;">Transparent</td>
<td style="text-align: center;">
<p>Transparent<br>ruled with squares</p>
</td>
<td style="text-align: center;">
<p>Transparent<br>ruled with squares</p>
</td>
<td style="text-align: center;">Translucent</td>
<td style="text-align: center;">Translucent</td>
</tr>
<tr>
<td><strong>Material</strong></td>
<td style="text-align: center;">
<p>Polypropylene film<br>(orange peel type)</p>
</td>
<td style="text-align: center;">
<p>Polypropylene film<br>(orange peel type)</p>
</td>
<td style="text-align: center;">
<p>Polypropylene film<br>(orange peel type)</p>
</td>
<td style="text-align: center;">
<p>Special impregnated<br>paper</p>
</td>
<td style="text-align: center;">
<p>Special impregnated<br>paper</p>
</td>
</tr>
<tr>
<td><strong>Adhesive</strong></td>
<td style="text-align: center;">Acrylic</td>
<td style="text-align: center;">Acrylic</td>
<td style="text-align: center;">Acrylic</td>
<td style="text-align: center;">Natural rubber</td>
<td style="text-align: center;">Natural rubber</td>
</tr>
<tr>
<td><strong>Thickness ±5%<br></strong></td>
<td style="text-align: center;">
<p><span class="azul-negrita">110 µ </span></p>
<p><span class="azul-negrita">(0.11 mm) </span></p>
</td>
<td style="text-align: center;">
<p><span class="azul-negrita">110 µ </span></p>
<p><span class="azul-negrita">(0.11 mm) </span></p>
</td>
<td style="text-align: center;">
<p><span class="azul-negrita">110 µ </span></p>
<p><span class="azul-negrita">(0.11 mm) </span></p>
</td>
<td style="text-align: center;">
<p><span class="azul-negrita">100 µ</span></p>
<p><span class="azul-negrita">(0.10 mm)</span></p>
</td>
<td style="text-align: center;">
<p><span class="azul-negrita">100 µ</span></p>
<p><span class="azul-negrita">(0.10 mm)</span></p>
</td>
</tr>
<tr>
<td><strong>Liner</strong></td>
<td style="text-align: center;">n/a</td>
<td style="text-align: center;">n/a</td>
<td style="text-align: center;">70 g/m<sup>2</sup> siliconized paper</td>
<td style="text-align: center;">n/a</td>
<td style="text-align: center;">n/a</td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>INSTRUCTIONS FOR USE</strong></p>
<p>The following are general guidelines that may vary slightly depending on the carrier you select, especially if you do <strong>wet applications</strong> or choose a type with a <strong>liner</strong>.</p>
<ul>
<li aria-level="1">Unroll the carrier sheet over the already cut and discarded vinyl and make it adhere to it with the help of a spatula to avoid bubbles</li>
<li aria-level="1">If the carrier has a liner (PT 165), you will have to gradually remove it while applying it to the vinyl. In small jobs, remove all the liner before applying it</li>
<li aria-level="1">Slowly separate the carrier so that the vinyl separates from the liner</li>
<li aria-level="1">Place the carrier with the vinyl on the surface to which it will adhere</li>
<li aria-level="1">Press with a spatula to eliminate bubbles</li>
<li aria-level="1">Carefully peel off the carrier, making sure the vinyl remains properly fixed</li>
</ul>
<p>In many cases, the carrier can be <strong>reused</strong>, which is at the discretion of the user, depending mainly on the adhesion and condition of the material.</p>
<p> </p>
<p><a id="know-more7"></a> </p>
<p><strong>SIZES</strong></p>
<table>
<tbody>
<tr>
<td style="text-align: center;"><strong>Ref.</strong></td>
<td style="text-align: center;"><strong>Type</strong></td>
<td style="text-align: center;"><strong>Roll</strong></td>
<td style="text-align: center;"><strong>Gross weight (kg)</strong></td>
</tr>
<tr>
<td style="text-align: center;">038751</td>
<td style="text-align: center;">PT 160</td>
<td style="text-align: center;"><span class="azul-negrita">30.5 cm x 100 m</span></td>
<td style="text-align: center;"><span class="azul-negrita">2.9</span></td>
</tr>
<tr>
<td style="text-align: center;">010033</td>
<td style="text-align: center;">PT 160</td>
<td style="text-align: center;"><span class="azul-negrita">61 cm x 100 m</span></td>
<td style="text-align: center;"><span class="azul-negrita">6.3</span></td>
</tr>
<tr>
<td style="text-align: center;">010034</td>
<td style="text-align: center;">PT 160</td>
<td style="text-align: center;"><span class="azul-negrita">122 cm x 100 m</span></td>
<td style="text-align: center;"><span class="azul-negrita">12.5</span></td>
</tr>
<tr>
<td style="text-align: center;">040977</td>
<td style="text-align: center;">PT 160 G</td>
<td style="text-align: center;"><span class="azul-negrita">30.5 cm x 25 m</span></td>
<td style="text-align: center;"><span class="azul-negrita">0.93</span></td>
</tr>
<tr>
<td style="text-align: center;">038913</td>
<td style="text-align: center;">PT 165</td>
<td style="text-align: center;"><span class="azul-negrita">33 cm x 5 m</span></td>
<td style="text-align: center;"><span class="azul-negrita">0.31</span></td>
</tr>
<tr>
<td style="text-align: center;">038912</td>
<td style="text-align: center;">PT 165</td>
<td style="text-align: center;"><span class="azul-negrita">33 cm x 50 m</span></td>
<td style="text-align: center;"><span class="azul-negrita">3.16</span></td>
</tr>
<tr>
<td style="text-align: center;">038911</td>
<td style="text-align: center;">PT 165</td>
<td style="text-align: center;"><span class="azul-negrita">100 cm x 50 m</span></td>
<td style="text-align: center;"><span class="azul-negrita">10</span></td>
</tr>
<tr>
<td style="text-align: center;">040979</td>
<td style="text-align: center;">PT 122</td>
<td style="text-align: center;"><span class="azul-negrita">30.5 cm x 25 m</span></td>
<td style="text-align: center;"><span class="azul-negrita">0.78</span></td>
</tr>
<tr>
<td style="text-align: center;">054627</td>
<td style="text-align: center;">PT 122</td>
<td style="text-align: center;"><span class="azul-negrita">61 cm x 100 m</span></td>
<td style="text-align: center;"><span class="azul-negrita">5.48</span></td>
</tr>
<tr>
<td style="text-align: center;">054626</td>
<td style="text-align: center;">PT 122</td>
<td style="text-align: center;"><span class="azul-negrita">122 cm x 100 m</span></td>
<td style="text-align: center;"><span class="azul-negrita">11.66</span></td>
</tr>
<tr>
<td style="text-align: center;">040978</td>
<td style="text-align: center;">PT 133</td>
<td style="text-align: center;"><span class="azul-negrita">30.5 cm x 25 m</span></td>
<td style="text-align: center;"><span class="azul-negrita">0.77</span></td>
</tr>
<tr>
<td style="text-align: center;">038752</td>
<td style="text-align: center;">PT 133</td>
<td style="text-align: center;"><span class="azul-negrita">30.5 cm x 100 m</span></td>
<td style="text-align: center;"><span class="azul-negrita">2.6</span></td>
</tr>
<tr>
<td style="text-align: center;">010035</td>
<td style="text-align: center;">PT 133</td>
<td style="text-align: center;"><span class="azul-negrita">61 cm x 100 m</span></td>
<td style="text-align: center;"><span class="azul-negrita">5.6</span></td>
</tr>
<tr>
<td style="text-align: center;">010036</td>
<td style="text-align: center;">PT 133</td>
<td style="text-align: center;"><span class="azul-negrita">122 cm x 100 m</span></td>
<td style="text-align: center;"><span class="azul-negrita">11.1</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>RELATED POSTS</strong></p>
<p><a href="https://www.brildor.com/en/blog/vinyl-carrier-how-to-choose-the-right-one/" target="_blank" rel="noopener">Vinyl carrier: how to choose the right one</a></p>
<p> </p>
<p class="enlace"><a id="know-more5"></a> </p>
<p><strong>TECHNICAL DATA SHEETS<br></strong></p>
<p>We have adapted the formats to the needs of our customers, and these may not coincide with those mentioned in the following data sheets, prepared by the manufacturer.</p>
<ul>
<li><a title="Technical Data Sheet Poli-Tape PT 122 Carrier" href="https://www.brildor.com/media/upload/descargas/Ficha_Tecnica_Transportador_Papel_Adhesion_Media_PT_122.pdf" target="_blank" rel="nofollow noopener">Technical Data Sheet Poli-Tape PT 122 Carrier (.pdf - 0.622 MB)</a></li>
<li><a title="Technical Data Sheet Poli-Tape PT 133 Carrier" href="https://www.brildor.com/media/upload/descargas/Ficha_Tecnica_Lamina_Transportadora_Base_Papel_PT133.pdf" target="_blank" rel="nofollow noopener">Technical Data Sheet Poli-Tape PT 133 Carrier (.pdf - 0.622 MB)</a></li>
<li><a title="Technical Data Sheet Poli-Tape PT 160 Carrier" href="https://www.brildor.com/media/upload/descargas/Ficha_Tecnica_Lamina_Transportadora_Base_Plastico_PT160.pdf" target="_blank" rel="nofollow noopener">Technical Data Sheet Poli-Tape PT 160 Carrier (.pdf - 0.622 MB)</a></li>
<li><a title="Technical Data Sheet Poli-Tape PT 160G Carrier" href="https://www.brildor.com/media/upload/descargas/Ficha_Tecnica_Transportador_Plastico_PT_160_G.pdf" target="_blank" rel="nofollow noopener">Technical Data Sheet Poli-Tape PT 160G Carrier (.pdf - 0.479 MB)</a></li>
<li><a title="Technical Data Sheet Poli-Tape PT 165 Carrier" href="https://www.brildor.com/media/upload/descargas/Ficha_Tecnica_POLI-TAPE_PT_165.pdf" target="_blank" rel="nofollow noopener">Technical Data Sheet Poli-Tape PT 165 Carrier (.pdf - 0.48 MB)</a></li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more6"></a> </p>
<p><strong>SAFETY DATA SHEET<br></strong></p>
<ul>
<li><a title="Safety Data Sheet for Poli-Tape carriers" href="https://www.brildor.com/media/upload/descargas/Ficha_Seguridad_Transportadores_Poli_Tape_ES.pdf" target="_blank" rel="nofollow noopener">Safety Data Sheet for Poli-Tape carriers (.pdf - 232 kB)</a></li>
</ul>
https://www.brildor.com/media/catalog/product/t/r/transportadores-poli-tape-vinilo-rotulacion-d9.jpg
119
instock
0
119
0
0
0
https://www.brildor.com/media/catalog/product/t/r/transportadores-poli-tape-vinilo-rotulacion-d9.jpg
16765
17414
18155
23534
44680
48860
53871
54367
/Vinyl
/Vinyl/Transfer Tape
/Sign Making
/Sign Making/Transfer Tape
/Arts & Crafts
/Arts & Crafts/Vinyl
2022-05-23T13:44:17+0000
