€1,295.00
VAT not included
before
€1,395.00
/ Each Unit

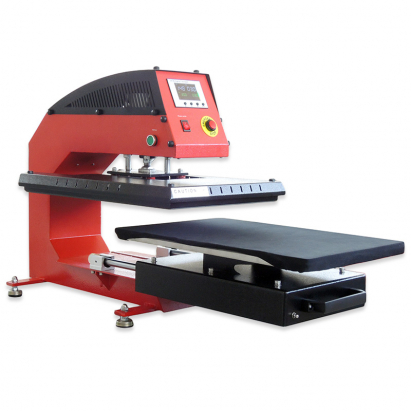

Pneumatic Heat Press 40x60cm - Brildor
Pneumatic action heat press machine for textile and hard surfaces heat transfer printing.
- Automatic closing and opening
- Removable lower platen to prevent burns when placing or removing products
- Lower platen dimensions: 40 x 60 cm
Compressor required (not included).
More information
Availability:
Immediate: 1 units
While stocks last
More information about the Brildor 40x60cm pneumatic heat press
INDEX
> Description
> Things to keep in mind
> Controller
> Warranty
> Technical details
> Dimensions (approx.)
DESCRIPTION
- Auto-off feature by pressing the 2 buttons on the side
- Control panel to set temperature and time
- Features start timer
- Lower platen covered with stain-proof lining and upper platen with anti-burn cover to protect it
- Adjustable pressure by pressure gauge
- Emergency stop button on the front
- Sturdy structure, made of highly resistant materials
- CE certificate for European conformity
THINGS TO KEEP IN MIND
- It requires an air compressor to operate properly
CONTROLLER
Instructions of the GY-06 Digital controller (.pdf - 0,27 MB)
WARRANTY
TECHNICAL DETAILS
| Press type |
Pneumatic |
| Platen type |
Slide-out |
| Controller |
LCD digital display model GY-06 |
| Lower platen dimensions |
40 x 60 cm |
| Max. thickness to press |
6.2 cm |
| Mat thickness |
1 cm |
| Voltage |
120 V/220 V
|
| Power |
1600 W/1800 W
|
| Timer |
0-999 s |
| Temperature range |
0-225ºC / 0-437ºF |
| Temperature accuracy |
± 5ºC / ± 41ºF |
DIMENSIONS (APPROX.)
| Press |
44 x 77.5 x 66.5 cm |
| Packaging |
89 x 51 x 70 cm |
| Gross weight |
67.55 kg
|
More Information
| Ref. |
037671 |
| Gross Weight (kg) |
67.5500 |
| Billable Weight (kg) |
74.0600 |
| Brand |
Brildor |
| Print area (cm) |
40 x 60 |
| Power (W) |
1600 / 1800 |
| Pressure regulation |
Gauge |
| Opening |
Pneumatic |
| Closing |
Pneumatic |
