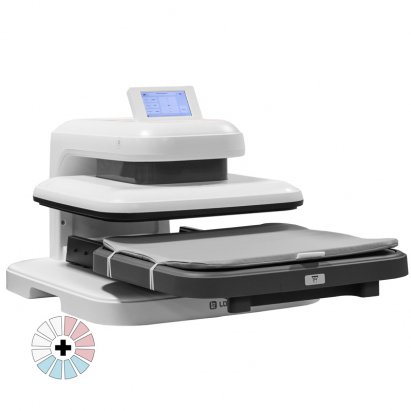

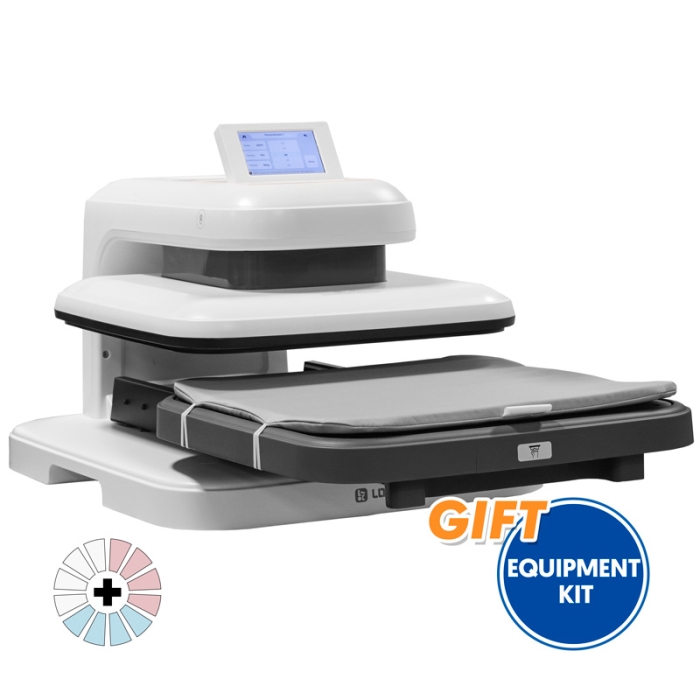

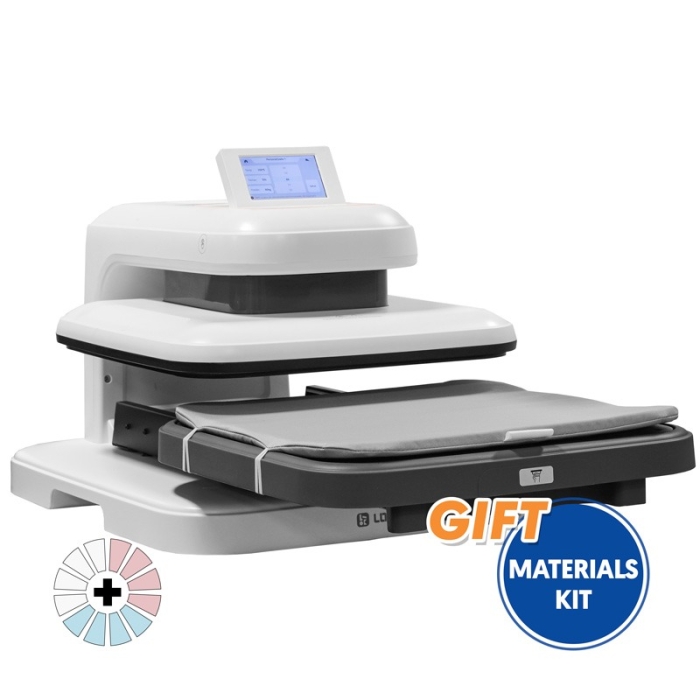

More information about the LokLik ImPress Auto 2-Smart Automatic Heat Press

INDEX

> Description

> Things to keep in mind

> Tips and advice

> What is included with this press?

> What is included in the Heat Press Materials Kit?

> Control button functions

> User manual

> Technical data

> Warranty

DESCRIPTION

• Compact design: lightweight, small size. Perfect for in-store customisation on demand. Ideal for demonstrations at fairs and exhibitions
• Multiple applications: suitable for any heat customisation technique: sublimation, DTF, heat transfer vinyl, transfer...
• Pressure, temperature and time control: features a foldable touch control panel for adjusting pressing parameters
• Easy to use: with 4 preset pressing programmes and the ability to save up to 4 custom settings
• Automatic mode: starts pressing automatically when the base plate is slid in to speed up workflow
• Fast heating: reaches its maximum temperature in 5 and a half minutes, thanks to the double heating tube
• Even pressure: on items up to 4.5 cm thick without a mat. Allows pressure adjustment to ensure perfect transfers
• Automatic shut-off: after 15 minutes of inactivity, ensuring your safety and energy efficiency
• Safety: equipped with emergency stop by pressing any button during pressing and a protective cover on the heat plate
• Pad: foam pad included, distributes heat evenly during transfers. Secured to the base plate with elastic straps

THINGS TO KEEP IN MIND

• Do not move the control panel manually, as this could damage the screen
• To start pressing, keep your hand on the detection point to the left of the touch screen and press the start button. You can deactivate this function by selecting quick mode in operation styles

TIPS AND ADVICE

• It is possible to cure DTF film with this press, although it is not designed for this purpose
  • Place the film on the base plate
  • Set only the temperature. The heat plate will remain at a height of 35 mm from the base plate (with pad)
  • To time the curing process do not activate the press timer. If you do, the heat plate will lower completely. Use a manual timer to measure curing duration (see Related Products)
  • When the time is up, remove the base plate and take out the film

WHAT IS INCLUDED WITH THIS PRESS?

LokLik materials kit included as a gift

WHAT IS INCLUDED IN THE HEAT PRESS MATERIALS KIT?

CONTROL BUTTON FUNCTIONS

• Power (On/Off): once connected, the button will flash white. Press once to turn on the machine, the touch screen will deploy and the button will light up white. Press again to turn off the machine and the touch screen will return to its original position. You can return to the default settings by pressing the power button for 5 seconds
• Home (house icon): press to return to the home page and stop the current pressing task
• Start (LokLik icon): press the button while touching the detection point to start pressing. This button lights up red during preheating and turns green when the set temperature is reached

USER MANUAL

LokLik ImPress Auto 2-Smart Heat Press - Multilingual (.pdf - 3.2 MB)

TECHNICAL DATA

WARRANTY

• As stipulated by law in: General Terms and Conditions for the Sale of Goods
