€699.00 VAT not included

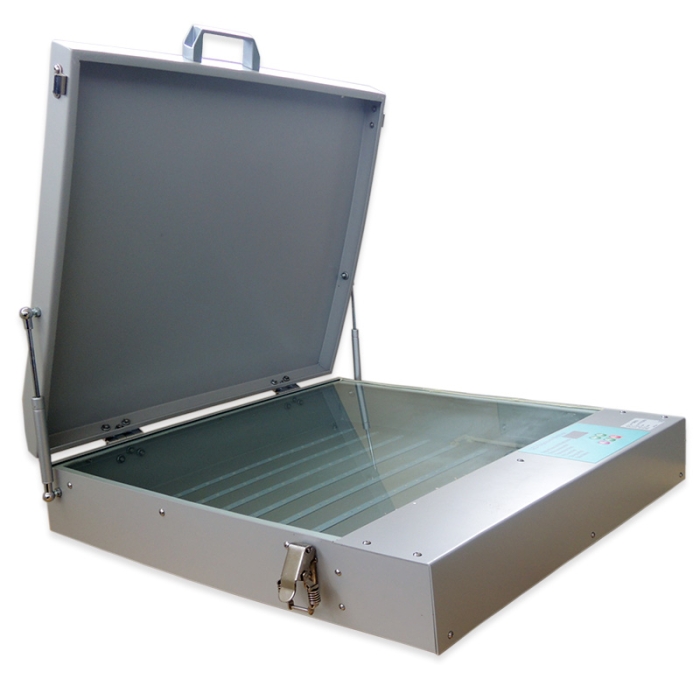

Tabletop LED Exposure Unit 80W

LED Exposure Unit - 60x50 80W

80 W tabletop exposure unit for screen printing frames up to 55 x 67 cm.

  • Equipped with 8 ultraviolet (UV) LED lamps
  • Exposure surface dimensions: 52 x 61 cm

More information

Reward Points
For each unit you buy, you will accumulate €20.97 to redeem on your next order. Discover the Brildor Loyalty Program.
Immediate: 0 unit
Expected entries:
  • 14/10/25: 2 units
€699.00
€699.00 VAT included

More information about the Tabletop LED Exposure Unit 80W

INDEX

> Description

> Instructions for use

> Technical data

> Warranty

DESCRIPTION

  • Lightbox that meets the needs of any screen printing workshop
  • Automatic digital timer with memory of the last used parameters
  • Plug and play. No special installation required
  • Easy-to-use PLC controller
  • Grey metal housing with front opening and metal latch to ensure a sealed space
  • Uniform exposure thanks to the LED bulbs
  • Highly energy-efficient. Uses up to 50% less than other exposure units due to the short exposure time, between 40 and 70 seconds
  • Protective pad for the glass
  • Tempered glass with a thickness of 5 mm

INSTRUCTIONS FOR USE

  • Ensure the emulsion you are using works with LED
  • Open the lid and remove the protective pad
  • Turn on the exposure unit and press the "exposure" button
  • Use the "<+" and "->" buttons to select the exposure time in seconds
  • Once the screen and film are properly placed, close the lid and secure it with the hooks on both sides of the exposure unit
  • Once closed, press the "start" button and wait for the countdown
  • When it reaches zero, an alarm will notify you that the screen is ready for washing
  • If you want to repeat, the previously set time will be retained. To reset the timer to zero, simply press the "reset" button

TECHNICAL DATA

Exposure area (cm)
61 x 52
Timer range (s)
0 - 999
Electrical power (V)
220 - 60 Hz
Power of each lamp (W)
10
Dimensions (closed) (cm)
71 x 15 x 65.5
Dimensions (open) (cm)
71 x 63 x 65.5
Interior lid dimensions (cm)
63 x 53 x 0.43
Packaging (cm)
75 x 75 x 25
Net weight (kg)
30
Gross weight (kg)
39.65

WARRANTY

Additional Information
Ref. 038130
Net Weight (kg) 30
Gross Weight (kg) 39.65
Billable Weight (kg) 43.620000
Height (mm) 150
Width (mm) 710
Depth (mm) 655
Maximum Screen Size (mm) 610 x 520
