Por fin tengo una buena configuración.
Buen producto. El efecto iridiscente es genial. Tras dañar casi media lamina de las tres que vienen por fin di con una buena configuración de corte para la Cameo 5. Profundidad (5), presión (33), velocidad (5) y activar sobrecorte de segmento si hay mucho detalle. Espero que os sea de gran ayuda.
Questions
No questions found for this product.
Be the first to ask a question!
https://www.brildor.com/en/holographic-self-adhesive-cut-vinyl-colourshift-aslan-se71en_49502Holographic Self Adhesive Cut Vinyl - ColourShift Aslan SE 71<p><a name="know-more"></a></p>
<h2>More information about the ColourShift Aslan SE 71 holographic self-adhesive cut vinyl</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more5">Technical details</a></p>
<p>> <a href="#know-more6">Colours reflected by each vinyl</a></p>
<p>> <a href="#know-more3">Storage recommendations</a></p>
<p>> <a href="#know-more7">Colour card</a></p>
<p>> <a href="#know-more8">Data sheet</a></p>
<p> </p>
<p><a name="know-more1"></a></p>
<p><strong>DESCRIPTION</strong></p>

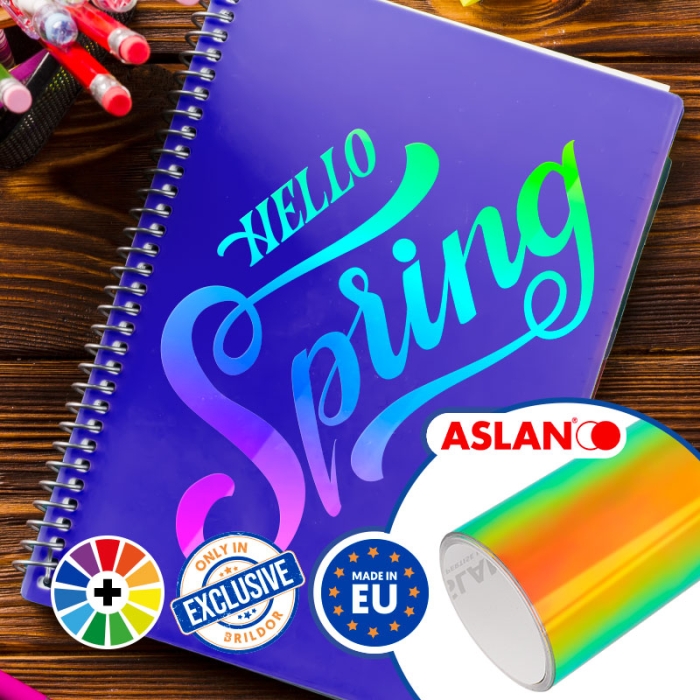

<p>ColourShift Aslan SE 71 is a <strong>holographic polyester film</strong> for lettering flat, non-curved rigid surfaces with multicoloured designs.</p>
<ul>
<li>Easy to apply. To be cut with a plotter, weeded and manually adhered to the surface</li>
<li>Opaque and coloured on both sides. When applied on transparent surfaces, the vinyl effect is equal on both sides and does not let light through</li>
<li>Dry or wet application</li>
<li>PVC free</li>
<li>The <strong>25-metre</strong> rolls have a <span class="azul-negrita">Ø7.5 cm</span> cardboard core</li>
<li>Made in Germany by Aslan</li>
</ul>
<p> </p>
<p><a name="know-more2"></a></p>
<p><strong>THINGS TO KEEP IN MIND<br></strong></p>
<ul>
<li>For complex or detailed designs, it may be convenient to use <strong>application tape</strong>, see <strong>Related Products</strong></li>
<li>Use a squeegee to adhere it to the surface and avoid air bubbles</li>
<li>If applied wet, the adhesive may whiten, but this will disappear after a few days</li>
<li>Not suitable for non-tempered glass</li>
<li>The substrate must be clean, free of dust, grease or lint</li>
<li>Does not adhere to curved surfaces such as bottles or glasses</li>
</ul>
<p> </p>
<p><a name="know-more5"></a></p>
<p><strong>TECHNICAL DETAILS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Vinyl</strong></td>
<td>Opaque polyester</td>
</tr>
<tr>
<td><strong>Thickness (μ)</strong></td>
<td><span class="azul-negrita">160</span></td>
</tr>
<tr>
<td><strong>Self-adhesive (gsm)<br></strong></td>
<td>Polyacrylate (<span class="azul-negrita">25</span>)</td>
</tr>
<tr>
<td><strong>Liner (gsm)</strong></td>
<td>Double-sided PE coated paper <span class="azul-negrita">140</span></td>
</tr>
<tr>
<td><strong>Min. temperature application (ºC)<br></strong></td>
<td><span class="azul-negrita">15</span></td>
</tr>
<tr>
<td style="vertical-align: middle;" rowspan="2"><strong>Adhesive strength (N/mm)</strong></td>
<td><span class="azul-negrita">1.5/ 25</span> (immediate)</td>
</tr>
<tr>
<td><span class="azul-negrita">12/25</span> (after 72 hours)</td>
</tr>
<tr>
<td style="vertical-align: middle;"><strong>Outdoor durability (years)</strong></td>
<td>Up to <span class="azul-negrita">2</span></td>
</tr>
<tr>
<td><strong>Temperature range (ºC)</strong></td>
<td><span class="azul-negrita">-30</span> up to <span class="azul-negrita">80</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more6"></a></p>
<p><strong>COLOURS REFLECTED BY EACH VINYL</strong></p>
<table>
<tbody>
<tr>
<td style="text-align: center; vertical-align: middle;"><strong>Name</strong></td>
<td style="text-align: center; vertical-align: middle;"><strong>Reflected colours</strong></td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;">13142 Aurora</td>
<td style="text-align: center; vertical-align: middle;">Light pink to light blue</td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;">13143 Alpha</td>
<td style="text-align: center; vertical-align: middle;">Magenta to yellow</td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;">13144 Andromeda</td>
<td style="text-align: center; vertical-align: middle;">Copper to green</td>
</tr>
<tr>
<td style="text-align: center; vertical-align: middle;">13145 Plasma</td>
<td style="text-align: center; vertical-align: middle;">Dark blue to green</td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more3"></a></p>
<p><strong>STORAGE RECOMMENDATIONS<br></strong></p>
<ul>
<li>Store in an upright position or on a roll holder</li>
<li>Store in a place at <span class="azul-negrita">-40ºC</span> to <span class="azul-negrita">60ºC</span> and a relative humidity of <span class="azul-negrita">50- 60%</span></li>
<li>Can be stored for up to 2 years if recommendations are followed</li>
</ul>
<p> </p>
<p><a name="know-more7"></a></p>
<p><strong>COLOUR CARD<br></strong></p>
<p><a title="Colour card Aslan ColourShift SE71 (pdf - 3.87 MB)" href="https://www.brildor.com/media/upload/descargas/Carta_Colores_Aslan_ColourShift_SE71_CA23.pdf" target="_blank" rel="nofollow noopener">Colour card Aslan ColourShift SE71 (pdf - 3.87 MB)</a></p>
<p> </p>
<p><a name="know-more8"></a></p>
<p><strong>DATA SHEET</strong></p>
<p><a title="Data sheet Aslan ColourShift SE71 (.pdf - 0.21 MB)" href="https://www.brildor.com/media/upload/descargas/Ficha_Tecnica_Aslan_ColourShift_SE_71.pdf" target="_blank" rel="nofollow noopener">Data sheet Aslan ColourShift SE71 (.pdf - 0.21 MB)</a></p>https://www.brildor.com/media/catalog/product/v/i/vinilos-adhesivo-corte-iridiscente-colourshift-aslan-se71-d7.jpg416.5instock0416.5151https://www.brildor.com/media/catalog/product/v/i/vinilos-adhesivo-corte-iridiscente-colourshift-aslan-se71-d7.jpgen_23534en_44647en_44925en_51263en_52243/Vinyl/Vinyl/Sign Vinyl/Sign Making/Sign Making/Vinyl for Cutting Signage/Vinyl/Vinilos para Cristales/Vinyl/Vinilos para Cristales/Rotulación/Outlet/Outlet/Vinyls and Patches2023-01-23T08:22:49+0000
