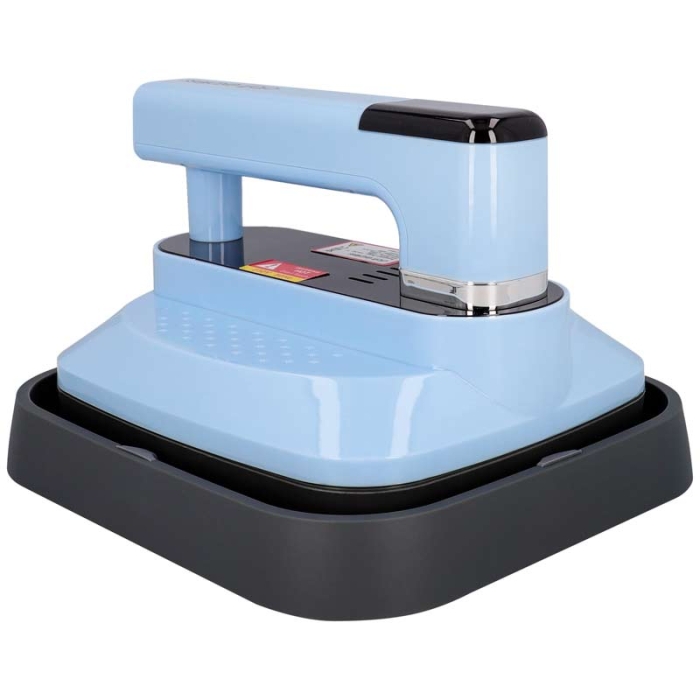

Heat Press Machines & Accessories - Craft Express
Heat press machines with a built-in handle to place it directly on the item to be printed.
Models: Mini ( 17.5 x 20 cm ) and Plus (25 x 30 cm )
25 x 27 cm (Mini) and 30.5 x 36 cm (Plus) mats are included
Other mat sizes are available separately
The Craft Express Plus (Ref. 042151) has a connector for the mug and cap attachments (Ref. 048340 and 048341)
More information
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the Craft Express heat press and accessories
INDEX
> Description
> Things to keep in mind
> What does the Craft Express include?
> User guide
> Instructions for use
> Additional pads
> Technical details
> Press dimensions (approx.)
> Accessories dimensions (approx.)
DESCRIPTION
They are the perfect solution for irregular shapes, large-sized items and those that cannot be personalised with a regular heat press: awnings, chairs, umbrellas and more
Vibration frequencies with 3 intensity levels to avoid the need for pressure
Digital display control panel for setting and controlling temperature, pressure and time
Acoustic warnings when plugging in, switching on and off, heating up and end of countdown
Automatic shut-off when it has not been used for some time. It can be set
Includes pad with zipped cover made of cotton (7%) and polyester (14%). Filled with polyester (18.5%), silicone (56.5%) and other fibres (4%)
Non-slip tray with vents for storage when not in use
Sturdy plastic frame with a large handle for easy handling
Lightweight and portable heat press
CE certificate for European conformity
THINGS TO KEEP IN MIND
The Craft Express Plus heat press (Ref. 042151) has a connector to fit the machine’s original accessories. These are sold separately (Ref. 048340 and 048341)
Ref. 048342 is a round mat for Ø25 cm plates with a Ø20 cm mat inside of it that can be separated and used independently
WHAT DOES THE CRAFT EXPRESS INCLUDE?
1
Tray
1
Mat
1
User manual
USER GUIDE
Manual for the Craft Express heat press (.pdf - 0.61 MB)
INSTRUCTIONS FOR USE
Plug in the press
Long press the power button for 5 seconds
Press the settings button to set the temperature. Press the + (plus) and - (minus) buttons at the same time to switch between Fahrenheit (°F) or Celsius (°C)
Press the settings button twice to set the time. Use the + (plus) and - (minus) buttons
Press the power button to turn it on and use the + (plus) and - (minus) buttons to select the desired motor and the vibration frequency
Press when it has reached the set temperature
Press the power button to start it up
When the beep sounds, lift it off the object and put it on the safety base
ADDITIONAL MATS (REF. 042153, REF. 042154, REF. 042155 & REF. 048342)
FLAT
Made of grey flame-retardant polyester fabric. Rounded corners and stitched edges
1.5 cm thick padding for a better grip and adaptation to the material to be printed
Back side with anti-slip silicone dots to prevent it from moving
FOR PLATES
Made of blue polyester fabric
3 cm thick padding.
Composed of 2 detachable mats: one of Ø25 cm containing a Ø20 cm mat
TECHNICAL DETAILS
Reference no
042152
042151
Press type
Manual
Manual
Heat plate (cm)
17.5 x 20
25 x 30
Maximum temperature (ºC / ºF)
200 / 392
200 / 392
Time range (seconds)
0-999
0-999
Power (W)
800
1000
Voltage (V)
220 / 240
220 / 240
PRESS DIMENSIONS (APPROX.)
Reference no
042152
042151
Model
Mini
Plus
Press (cm)
20 x 14 x 23.5
26.5 x 14.5 x 32
Safety base (cm)
22.6 x 4.5 x 25.7
29.7 x 4.6 x 34.6
Mat (cm)
25 x 27 x 2
30.5 x 36 x 2
Cable length (m)
2
2
Packaging (cm)
37.5 x 42.5 x 26.3
41 x 24 x 35.5
Press weight (kg)
2.882
4.595
Packaging weight (kg)
4.044
6.063
ACCESSORIES DIMENSIONS (APPROX.)
MUG ATTACHMENT (Ref. 048340)
Shape
Capacity
A
B
Opening (cm)
Weight (kg)
Durham mug
11 oz
22 cm
11.5 cm
Ø7.5 cm
1.243
CAP ATTACHMENT (Ref. 048341)
Heat plate (cm)
14 x 8
Base (cm)
14.5 x 9 x 10.3
Weight (g)
684
ADDITIONAL MATS (NOT INCLUDED WITH THE PRESS)
Reference no
042155
042154
042153
048342
Dimensions (cm)
29.5 x 34.5
38 x 38
40 x 60
Ø20 - Ø25
Thickness (cm)
1.5
1.5
1.5
3
Weight (g)
218
250
360
57
