Ceramic-coated heat plate. Heats evenly from edge to edge for optimal, long-lasting transfers
Provides results in less than 60 seconds
Digital temperature and time control panel
Heat press with overload protection
Insulated safety base keeps it protected when not in use
Non-combustible plastic housing with a large ergonomic handle
Insulating inner material
Compact, lightweight and portable
WHAT DOES THIS PRESS INCLUDE?
1
Safety base
1
Silicone mat
1
Teflon sheet
1
User manual
TECHNICAL DETAILS
Press model
Brildor Hobby 2
Press type
Manual
Heat platen
23.5 x 23.5 cm
Voltage
110 V / 220 V
Power
850 W
Timer
0-300 s
Temperature range
0 - 200ºC
Temperature accuracy
±5ºC
Heating speed
5 min pre-heating up to maximum temperature
PRESS DIMENSIONS
Press
24 x 24 x 10 cm
Heat platen
23.5 x 23.5 x 0.3 cm
Safety base
28.6 x 28.6 x 4.5 cm
Pad
29 x 29.2 x 0.7 cm
Teflon sheet
30 x 30 cm
Power cable
1.20 m
Packaging
39.5 x 34.5 x 22 cm
Net weight
3.55 kg

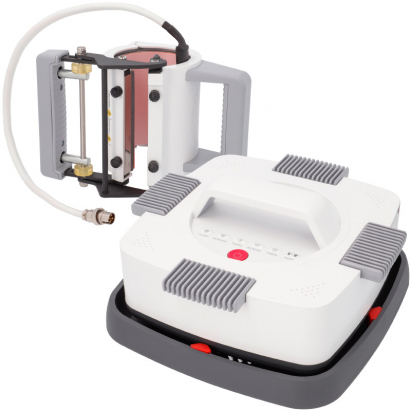

OPTIONAL MUG ELEMENT DIMENSIONS
Mug element
26 x 16.5 x 15.5 cm
Thickness
1 cm
Press connection cable
60 cm
Packaging
27 x 19 x 20 cm
HEATING ELEMENT
Reference no
Shape
Capacity
A
B
Maximum opening
Minimum opening
Weight
038097
Durham mug
11 oz
22.5 cm
11.5 cm
Ø8 cm
Ø7 cm
1.35 kg
The measurements are for guidance only and it is always recommended to measure and carry out tests to achieve the best results in your customisations
CONTROL PANEL
POWER. Press to turn the press on or off. For security reasons, the press has an automatic shutdown system. After 10 minutes of inactivity, it beeps and shuts off. Press any button to cancel the shutdown sequence
TEMP. Press and hold the button to change from Fahrenheit (ºF) to Celsius (ºC)
TIMER. It can be set up from 0 to 300 seconds
INCREASE or DECREASE. Press to increase or decrease by one digit. Press and hold to increase or decrease rapidly.
TIMING. To start pressing, press this button and the time will start counting down. It will beep when finished. To stop it, press the button again.
MODE. Press and hold to switch between the flat press mode (blue light) and the mug press mode (orange light).
INSTRUCTIONS FOR USE
FLAT HEAT PRESS
Press the POWER button to start the press
Press the TEMP button, and the temperature will start flashing. Adjust with INCREASE or DECREASE until you reach the desired temperature
Press the TIMER button to set the time
Use the included silicone pad as a pressing support. For textiles, pre-press for 3-5 seconds to remove wrinkles and moisture
Place the design on the desired area and fix it with heat-resistant tape
Cover with the Teflon sheet
When the temperature reaches the desired value, apply pressure by holding the press by its handle until you feel depth on the pad. You can apply light or heavy pressure, depending on the garment you want to print
Press the TIMING button to start the countdown
The timer will beep when it reaches zero. Press the clock button to stop the timer and lift the press
Turn the item and press for about 10-15 seconds
If you can't easily peel off the paper or vinyl, apply heat again for a few more seconds
Remove the paper when lukewarm or cool
MUG HEAT PRESS
Press the POWER button to start the press
Press the MODE button to activate the mug press mode. If it is not switched on, three zeros will appear on the display
Press the TEMP button, and the temperature will start flashing. Then, you can adjust it with INCREASE or DECREASE until it reaches 100ºC (low temperature) or 180ºC (high temperature).
Press the TIMER button to set the time (up to 120 seconds)
Adjust the pressure by tightening the screws on the handle and place the mug
Press the TIMING button to start the countdown
The timer will beep when it reaches zero. Press the clock button to stop the timer
Remove the paper when lukewarm or cool
WARRANTY
Heat press: 1 year
Heating element: 3 months
The warranty period starts from the date mentioned on the invoice of purchase
