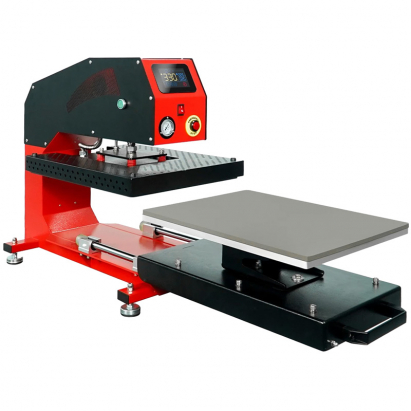

Brildor APD-20.1 Pneumatic Press 40x60cm
Automatic heat press for customising textiles and rigid materials.
- Automatic closing and opening, via pneumatic operation
- Removable base plate
- Heat plate dimensions: 40 x 60 cm
Requires compressor, not included.
More information
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the Brildor APD-20.1 Pneumatic Press 40x60cm
INDEX
> Description
> Things to keep in mind
> Manual
> Approximate measurements
> Technical data
> Warranty
DESCRIPTION
- Automatic safety lock with two side button activation
- Control panel with a touch screen to set temperature and time
- 3 customised temperature and time programmes
- Heat plate with anti-burn cover and base plate with anti-stain lining
- Removable plate for easy operation and to prevent burns
- Adjustable pressure via manometer setting
- Speed regulators for the rise/fall of the heat plate
- Emergency stop button on the front
- Automatic shutdown after 150 minutes of inactivity
- Acoustic signal when the press is preheated
- Compact, robust, and stable structure. Made with highly durable materials
- CE Certification in compliance with the EU
THINGS TO KEEP IN MIND
- For high production levels, it is advisable to use an 80-litre compressor available in Related Products
MANUALS
Brildor APD-20.1 User Guide (.pdf - 0.41MB)
APPROXIMATE MEASUREMENTS
| Press base plate closed (cm) |
42.6 x 50.8 x 101 |
Press base plate extended (cm)
|
42.6 x 50.8 x 135 |
| Packaging (cm) |
115 x 86.5 x 58 |
Net weight (kg)
|
86 |
| Gross weight (kg) |
121 |
TECHNICAL DATA
Model
|
APD-20/24 |
| Type of press |
Pneumatic/Vertical |
| Type of plate |
Removable |
| Controller |
Digital LCD screen model GY-13 |
| Base plate size (cm) |
40 x 60 |
| Maximum stamping thickness (mm) |
40 |
| Voltage (V) |
220 |
| Power (W) |
1800
|
| Timer (s) |
0-999 s |
| Temperature range (°C | °F) |
0-225 | 0-437 |
WARRANTY
More Information
| Ref. |
954214 |
| Brand |
Brildor |
| Print area (cm) |
40 x 60 |
| Pressure regulation |
Automatic |
| Opening |
Automatic |
| Closing |
Automatic |
