3D Effect Heat Transfer Vinyl - Poli-Flex Image Dimension from Poli-Tape

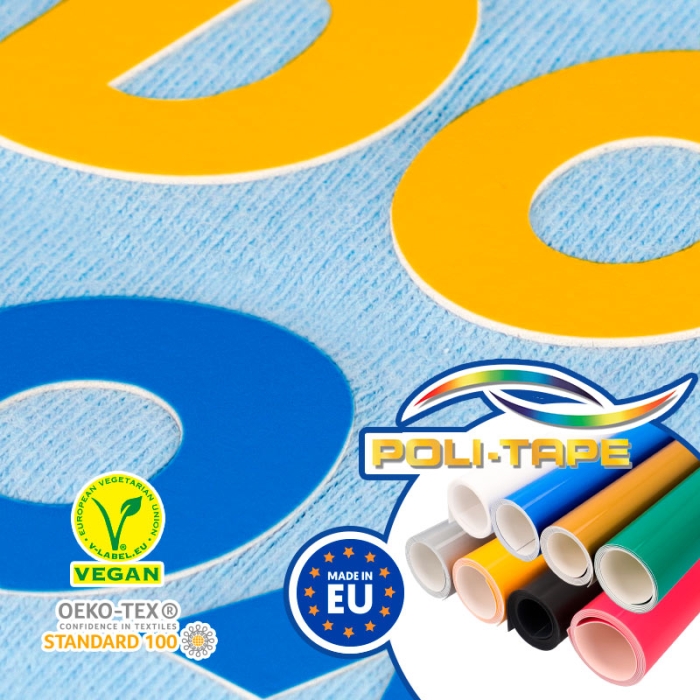

3D-effect heat transfer vinyl to create embossed designs.

  • Made of 600 μ thick ecological polyurethane in a matte finish
  • Suitable for cotton, mixtures of polyester/cotton or polyester/acrylic fabrics without water-repellent coating
  • Sale unit: 1 m, 5 m and 10 m rolls, 50 cm wide

More information

Shown on each product
Reward Points
Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program



Things to keep in mind

Transfer parameters

Application instructions

Washing recommendations


Colour card

Data sheets

Safety data sheet



POLI-FLEX IMAGE DIMENSION 3D effect is a hot-melt adhesive film (600 µ) for textile transfer.

  • The liner is a non-adhesive PET (polyester) film
  • Available in different colours with white backing and border, except for the black, which comes all in black
  • The 10-metre roll has a Ø7.5 cm cardboard core
  • Oeko-Tex Standard 100 Class I certifies that it is suitable for application on baby and children's clothing
  • Made in Germany by Poli-Tape



  • Due to its thickness, it is recommended to avoid highly detailed designs, as this could make it difficult to cut and weed the vinyl
  • Do not transfer on nylon and textiles with hydrophobic impregnation In this case, we recommend using Poli-Flex Nylon
  • If you use a Silhouette Cameo, apply the following settings: blade 8, speed 5, force 20 and 3 passes



  • Knife blade: 60º
  • Temperature: 160ºC
  • Pressure: 3.0 bar [medium pressure]
  • Time: 25 seconds



  • Cut the HTV in mirror image
  • Weed out your excess vinyl
  • Preheat the press to 160ºC
  • Place the garment on the press and pre-press for 4-5 seconds to remove wrinkles and moisture
  • Position the vinyl on the garment
  • Press for 25 seconds, medium pressure
  • Cool peel the liner



  • Withstands up to 60ºC
  • Do not tumble dry
  • Do not dry clean
  • Wash inside out



Roll 1 5 10
Weight (kg) 0.4 2 4.5



Colour card for Poli-Flex Image (.pdf - 2.93 MB)



Data sheet Poli-Flex Image Dimension (.pdf - 0.03 MB)

Transfer and wash conditions (.pdf - 0.14 MB)



When used under normal conditions, this product does not generate or release any dangerous substances or hazardous chemicals. This is a non-hazardous product in accordance with the current GefStoffV and EU criteria. Therefore it is not necessary to prepare a Material Safety Data Sheet for this product. The Safety Data Sheet serves only to comply with the regulation to supply information in accordance with REACH Regulation (EC) No. 1907/2006 and is available on request. This is not a hazardous product with regards to transportation legislation; neither does it contain substances that are hazardous to water within the meaning of the federal water act. After use, dispose of the waste product in accordance with the local/national authorities.
