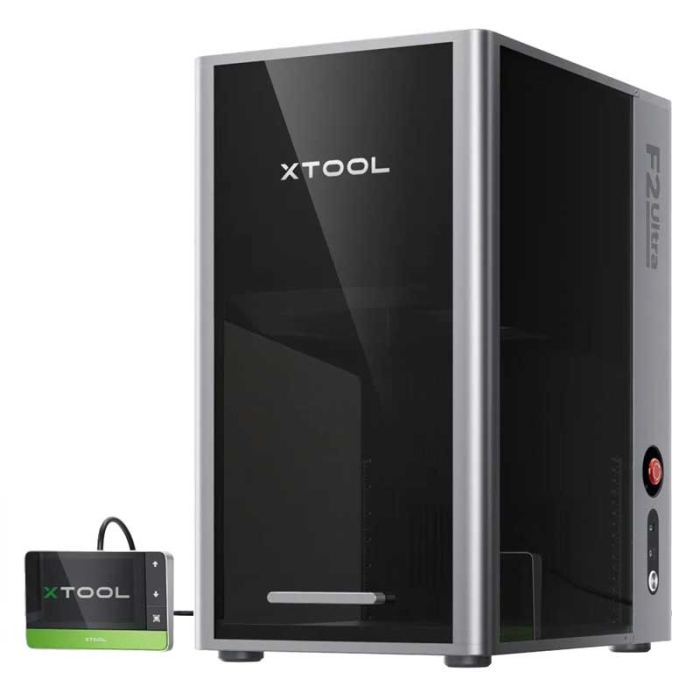

xTool F2 Ultra MOPA Laser Engraving Machines

xTool F2 Ultra MOPA Laser Engraving Machines

Infrared MOPA laser machines of 60 W for engraving metals in colour.
Option with dual diode laser 40 W for cutting and engraving wood, acrylic, and other materials.

  • Speed of 15000 mm/s
  • Work area 22 x 22 cm, expandable

Also available are savings packs that include the machine and accessories, all-in-one at a lower price.

More information

Reward Points
Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program

More information about the xTool F2 Ultra MOPA Laser Engraving Machines



INDEX

> Features

> Things to keep in mind

> What is included with the laser machine?

> Accessories

> What is included in the xTool F2 Ultra value packs or bundles?

> Warranty

> Technical specifications – xTool F1 Ultra comparison

> Materials that can be engraved

> Materials that can be cut

> Related posts

FEATURES

  • Compact design: perfect for working anywhere, in a shop or at a fair, in full view of the customer
  • Colour engraving: the 60 W MOPA laser allows engraving in over 100 vibrant colours and even holographic effects on stainless steel and titanium
  • MOPA technology: (Master Oscillator Power Amplifier) enables control of laser pulse duration and frequency for highly precise engravings. Add colour to metals simply by adjusting these parameters
  • Versatile: performs deep engravings, embossing, and cuts metals up to 2 mm. The dual laser option with diode also allows cutting wood, acrylic, leather, and more
  • Software with integrated AI: simple and intuitive interface for creating and editing designs
    • Colour recognition: when uploading an image, the AI segments colours by layers, adjusting engraving parameters for each colour
    • Engraving on curved and irregular surfaces: its dual 48 MP camera scans the shape and height of the object to automatically adjust the focus
    • Text-to-image transformation: generates images with AI in over 70 different styles to speed up the creative process
  • Productivity: Auto Streamline technology uses intelligent dual cameras to align and position designs on materials precisely, optimising the engraving process and reducing required time. Especially useful for mass production applications using the conveyor belt
  • Touch control panel: allows you to control the machine for engraving and cutting without the need for a computer or internet, with 7 GB storage capacity for files and offline work
  • Built-in air system: features a removable fan that extracts smoke via an easy-to-install extraction tube (included). The tube must be directed outside
  • Safe: if the machine is running and the cover is lifted, the laser stops. Additionally, the cover blocks harmful laser light and smoke emissions
  • Protective cover: complies with Class IV laser safety standards, blocking laser light during operation
  • Preview: allows you to visualise the design on the product before starting the engraving
  • Connectivity: Wi-Fi connection for transferring files and remotely monitoring the production process from a computer, tablet, or mobile
  • CE marking: label certifying that this machine meets all legal requirements for marketing within the European Union

THINGS TO KEEP IN MIND

  • The diode laser does not engrave on transparent, translucent, or light-coloured materials such as acrylics, glass, etc.
  • Accessories are not included with the machine. They are purchased separately
  • The laser head has a protective cap. Remember to remove it before starting to use the machine and replace it afterwards to prevent dirt build-up
  • To engrave certain products or when using the conveyor belt, the cover must be lifted. In Related Products you will find safety glasses for this purpose

WHAT IS INCLUDED WITH THE LASER MACHINE?

1 Touch control panel
1 Ventilation tube
1 L-shaped positioning piece
1 Power adapter
1 Power cable
1 USB cable
2 Keys
1 Cutting panel
1 Cleaning cloth
1 Pack of test materials
1 User manual

ACCESSORIES

SafetyPro AP2 Air Filter

  • Compact and efficient design: high-power motor and quiet operation (55 dB). Ideal for home and professional environments
  • Optimal filtration mode depending on the material
  • 6-layer filtration system:
    • SuperCyclone filter: captures large particles. Extends pre-filter lifespan by 10 times
    • Pre-filter: traps dust and lint, preventing them from reaching higher efficiency filters
    • Medium efficiency filter: captures medium-sized particles such as pollen and mould spores, improving air quality
    • Activated carbon layer: absorbs harmful gases
    • Ultra-dense carbon mesh: absorbs odours up to 97.97%, improving air quality
    • HEPA filter: capable of capturing at least 99.97% of particles 0.3 microns or larger
  • Easy to clean and reuse: removable magnetic door design. Makes it easy to remove, wash, and replace filters
  • Automatic on/off via Bluetooth connection
  • Clean the cyclone every 3–6 months. You can check its status through the viewing window on the top of the purifier
  • Includes extraction tube, pipe connectors, and clamp

Conveyor belt

  • Doubles the working area (22 x 50 cm)
  • Includes 2 pieces for securing to the machine and providing stability during use
  • Stable yet lightweight for easy movement
  • PU conveyor belt and aluminium structure. Supports objects up to 10 kg
  • Easy to use, simply place materials on the belt and the xTool F1 Ultra will do the rest
  • Perfect for batch engraving products in a single session or large pieces

RA2 Pro rotary accessory

  • 4-in-1 for highly precise engraving of spherical and cylindrical objects such as mugs, rings, Christmas baubles, bottles, etc.
  • Includes roller rotation, chuck, sphere, and ring
  • 2 cables for connecting to xTool machines. Use the one compatible with your model

RA2 Pro rotary accessory kit

  • Expands the capabilities of the RA2 Pro rotary accessory:
    • More precise focus: the laser level indicates the central axis on the piece held by the RA2 Pro, improving engraving quality
    • Engrave in different positions: allows the object held by the RA2 Pro to be tilted up to 26º. Achieve perfect alignment on conical pieces, engrave inside rings, etc.
    • More convenient mass production: positioning pieces make it easy to move the RA2 Pro and position it in the same place without losing engraving parameters
  • Easily installed onto the rotary accessory, no additional tools required

Fire safety set

  • Detects, sounds an alarm, and extinguishes fire automatically
  • Cuts the power to stop the machine, then releases CO2 gas to put out the fire
  • Easy to install and use. Includes a user manual with detailed instructions
  • Works with 4 bottles of non-toxic, odourless CO2 gas included in the set. Easily replaced after each use

Button switch

  • Very useful for mass production. Press the button to operate the machine remotely, without having to move
  • 4 functions in 1: start, pause, restart engraving, or repeat the task
  • Cable length: 1 m

Foot pedal switch

  • Very useful for mass production. Step on the pedal to operate the machine remotely, without having to move
  • 4 functions in 1: start, pause, restart engraving, or repeat the task
  • Cable length: 2.45 m
  • The pedal reduces hand fatigue during long work sessions



WHAT IS INCLUDED IN THE XTOOL F2 ULTRA BUNDLES?

We offer 2 options: the xTool F2 Ultra + Conveyor and the xTool F2 Ultra Deluxe Bundle.

  60 W MOPA Laser 60 W MOPA Laser
+ 40 W Diode
xTool F2 Ultra +
Conveyor
belt
Deluxe
Bundle
xTool F2 Ultra +
Conveyor
belt
Deluxe
Bundle
Ref. 056896 056897 056899 056898
XTool F2 Ultra*
Conveyor belt
RA2 Pro rotary accessory
Desktop Air Purifier filter

(*) Includes the same items as when purchasing the xTool F2 Ultra machine separately.



WARRANTY



TECHNICAL SPECIFICATIONS – XTOOL F1 ULTRA COMPARISON TABLE

Model xTool F2 Ultra xTool F1 Ultra

Laser type

Infrared (IR) MOPA |
IR MOPA + Diode

Fibre + Diode

Laser power (W)

60 IR |
60 IR + 40 Diode

20 Fibre
20 Diode

Laser safety

Class IV

Class IV

Laser spot (mm)

0.09 x 0.1 Diode
0.03 x 0.03 IR MOPA

0.08 x 0.1 Diode
0.03 x 0.03 Fibre

Max. working speed (mm/s)

15000

10000

Max. cutting thickness (mm)

23

15

Working area (cm)

22 x 22

22 x 22

Max. extended working area (cm)

22 x 50

22 x 50

Max. working height (cm)

15

14.5

Connection

Wi-Fi, USB

Wi-Fi, USB

File formats

SVG, DXF, JPG,
JPEG, PNG, BMP…

SVG, DXF, JPG,
JPEG, PNG, BMP…

Operating systems
(Desktop | Mobile)

Windows, MacOS

Windows, MacOS,
iPadOS, Android,
iOS

Compatible software

XCS, Atomm

XCS, LightBurn

Machine (cm)

29.4 x 42.9 x 52.1

27.3 x 37.3 x 49.2

Net weight (kg)

20.8 (MOPA)
21.6 (MOPA + Diode)

14.7



MATERIALS THAT CAN BE ENGRAVED

Information provided by the manufacturer for guidance purposes. Results may vary depending on the composition of the material, so prior testing is recommended.


Material

Diode
laser

MOPA
laser

Paper

Wood

Linden wood

Plywood

Leather

Cardboard

Dark acrylic

Stainless steel

Gold

Silver

Copper

Aluminium

Titanium

Brass

Anodised aluminium

Materials containing PVC cannot be laser engraved, as they emit toxic fumes that would also damage the machine



MATERIALS THAT CAN BE CUT

Although it is mainly designed for engraving, it can cut some materials


Material

Max.
cutting thickness
(mm)

Wood

23

Black acrylic

20

Metal

2
