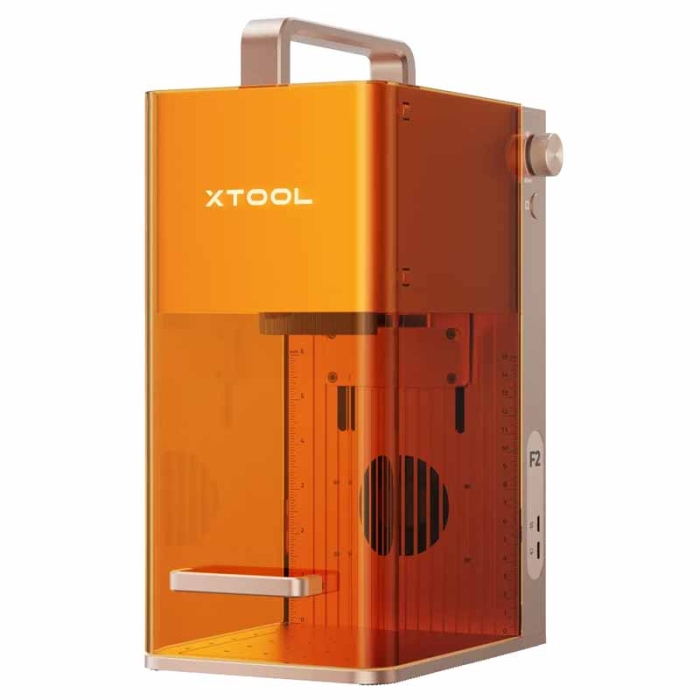

xTool F2 Portable Laser Engraving Machine Diode and Infrared
<p><a name="know-more"></a></p>
<h2>More information about the xTool F2 Portable Diode and Infrared Laser Engraving Machine</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Features</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more3">What is included with the laser machine?</a></p>
<p>> <a href="#know-more4">Accessories</a></p>
<p>> <a href="#know-more10">What do the xTool F2 bundle packs include?</a></p>
<p>> <a href="#know-more5">Accessory dimensions</a></p>
<p>> <a href="#know-more6">Support material</a></p>
<p>> <a href="#know-more13">Certifications</a></p>
<p>> <a href="#know-more12">Warranty</a></p>
<p>> <a href="#know-more8">Materials that can be engraved and cut</a></p>
<p>> <a href="#know-more7">Technical specifications – xTool F1 and F2 comparison table</a></p>
<p>> <a href="#know-more11">Related posts</a></p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>FEATURES</strong></p>
<ul>
<li><strong>Modern design:</strong> small, lightweight, and compact laser engraver. Perfect for working anywhere, in a shop or at a fair, in full view of the customer</li>
<li><strong>Portable:</strong> engrave on a desktop using the base or without it, placing the machine directly on the item to be personalised</li>
<li><strong>Dual laser:</strong> diode and infrared in the same head. Selectable in software, no need to swap machine parts or use tools</li>
<li><strong>Versatile:</strong> uses 2 different laser technologies, expanding the range of products you can personalise. The diode laser engraves almost all common materials (wood, ceramic, leather, etc.). The infrared (IR) laser engraves plastic and metals (gold, silver, stainless steel, etc.)</li>
<li><strong>Laser cutting:</strong> can cut certain materials up to <span class="azul-negrita">15 mm</span> thick after engraving</li>
<li><strong>Integrated 50 MP camera:</strong> with autofocus, live preview, precise visual alignment, batch processing, etc.</li>
<li><strong>Autofocus:</strong> adjusts the optimal distance to the material for more precise and sharper engravings</li>
<li><strong>Galvo technology:</strong> fixed head, does not move as in other machines. The laser beam is directed by mirrors inside the head</li>
<li><strong>Speed and precision:</strong> thanks to the galvo system, engraves very quickly and with greater quality in all details. Stamps complex designs in almost photographic high resolution</li>
<li><strong>Built-in air system:</strong> includes a fan that extracts smoke via an easy-to-install extraction tube (included). The tube should be directed outside</li>
<li><strong>Safe:</strong> if the machine is running and the cover is lifted, the laser stops. Additionally, the cover blocks harmful laser light and smoke emissions</li>
<li><strong>Protective cover:</strong> complies with safety standards for Class IV lasers, blocking laser light during operation</li>
<li><strong>Intuitive software:</strong> simple interface with integrated AI for creating and editing designs with a variety of tools</li>
<li><strong>Connectivity:</strong> Wi-Fi connection for file transfer and remote monitoring of the production process from a computer, tablet, or mobile</li>
</ul>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>The diode laser does not engrave on transparent, translucent, or light-coloured materials such as acrylics, glass, etc. For these types of materials, we recommend using a CO2 laser machine</li>
<li>Only one laser can be used at a time. The type of laser is selected from the application</li>
<li>Accessories are purchased separately</li>
<li>The laser head has a protective cap. Remember to remove it before starting to use the machine and replace it afterwards to prevent it from getting dirty</li>
<li>For engraving certain products, the cover will need to be lifted. In <strong>Related Products</strong> you will find safety glasses for this purpose</li>
</ul>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>WHAT IS INCLUDED WITH THE LASER MACHINE?</strong></p>
<table>
<tbody>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Ventilation tube</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Base plate</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>L-shaped positioning piece</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Bottle of lubricating oil</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Screwdriver</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Spare key</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Bottle of lubricating oil</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Cutting panel</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Cleaning cloth</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Test material</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Power adapter</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Power cable</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>USB cable</td>
</tr>
</tbody>
</table>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>ACCESSORIES<br /></strong></p>
<p><strong>Desktop Air Purifier Filter<br /></strong></p>
<ul>
<li>Just as portable and compact as the engraver. Perfect if your workspace does not have ventilation</li>
<li>Consists of 2 parts. The HEPA H13 filter and the activated carbon filter are in a single unit.<br />
<ul>
<li>Pre-filter: captures larger particles</li>
<li>HEPA H13 filter: retains 99.97% of particles with impurities</li>
<li>Activated carbon filter: absorbs harmful gases and unpleasant odours</li>
</ul>
</li>
<li>It is recommended to periodically check the pre-filter and replace it when more than 70% of its surface is covered with impurities</li>
<li>Replacement of the parts will depend on usage time and visible wear</li>
<li>Also includes an extraction tube and 2 spare pre-filters</li>
<li>Replacements for the <a href="https://www.brildor.com/en/desktop-air-purifier-air-filter-xtool" target="_blank" rel="noopener">Desktop Air Purifier filter</a> are available in <strong>Related Products</strong></li>
</ul>
<p><strong>Sliding extension base</strong></p>
<ul>
<li>Expands the working area up to 4 times (<span class="azul-negrita">11.5 x 40 cm</span>)</li>
<li>Includes 5 clamps that provide stability and hold materials or objects securely</li>
<li>Perfect for batch engraving in a single session</li>
</ul>
<p><strong>RA3 rotary accessory</strong></p>
<ul>
<li>4-in-1 for highly precise engraving on spherical and cylindrical objects such as mugs, rings, Christmas baubles, tumblers, etc.</li>
<li>Allows the object to be tilted up to <span class="azul-negrita">26º</span>. Achieve perfect alignment on conical pieces, engrave inside rings, etc.</li>
<li>T-grip capable of engraving objects up to <span class="azul-negrita">130 mm</span> in diameter</li>
<li>Includes roller, chuck, sphere, and ring</li>
</ul>
<p><strong>Button switch</strong></p>
<ul>
<li>Very useful for serial production. Press the button to operate the machine remotely, without having to move</li>
<li>4 functions in 1. Start, pause, restart engraving, or repeat the task</li>
<li>Cable length: <span class="azul-negrita">1 m</span></li>
</ul>
<p><strong>Foot pedal switch</strong></p>
<ul>
<li>Very useful for serial production. Press the pedal to operate the machine remotely, without having to move</li>
<li>4 functions in 1. Start, pause, restart engraving, or repeat the task</li>
<li>Cable length: <span class="azul-negrita">2.45 m</span></li>
<li>The pedal reduces hand fatigue during long working sessions</li>
</ul>
<p class="enlace"><a id="know-more10"></a> </p>
<p><strong>WHAT DO THE XTOOL F2 BUNDLE PACKS INCLUDE?</strong></p>
<table>
<tbody>
<tr>
<td> </td>
<td style="text-align: center;"><strong>xTool F2 + <br />Sliding base</strong></td>
<td style="text-align: center;"><strong>Deluxe <br />Bundle</strong></td>
</tr>
<tr>
<td><strong>Ref.</strong></td>
<td style="text-align: center;">057579</td>
<td style="text-align: center;">057580</td>
</tr>
<tr>
<td><strong>XTool F2<span class="naranja-negrita">*</span></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
<tr>
<td><strong>Sliding extension base</strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
<tr>
<td><strong>RA3 rotary accessory</strong></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
<tr>
<td><strong>Desktop Air Purifier filter</strong></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
</tbody>
</table>
<p><span class="naranja-negrita"><sup>(*)</sup></span> The <a href="#know-more3">xTool F2 machine</a> includes the same items as when purchased separately.</p>
<p class="enlace"><a id="know-more5"></a> </p>
<p><strong>ACCESSORY DIMENSIONS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Accessory</strong></td>
<td style="text-align: center;">Desktop Air Purifier filter</td>
<td style="text-align: center;">Sliding extension base</td>
<td style="text-align: center;">RA3 rotary accessory</td>
<td style="text-align: center;">Button switch</td>
<td style="text-align: center;">Foot pedal switch</td>
</tr>
<tr>
<td><strong>Reference<br /></strong></td>
<td style="text-align: center;"><strong>051398</strong></td>
<td style="text-align: center;"><strong>051400</strong></td>
<td style="text-align: center;"><strong>057581</strong></td>
<td style="text-align: center;"><strong>054868</strong></td>
<td style="text-align: center;"><strong>054867</strong></td>
</tr>
<tr>
<td><strong>Size (cm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">27.5 x 20 x 21<br /></span></td>
<td style="text-align: center;"><span class="azul-negrita">40 x 23.5 x 18</span></td>
<td style="text-align: center;"><span class="azul-negrita">32.4 x 18.7 x 14.8</span></td>
<td style="text-align: center;"><span class="azul-negrita">2.7 x 2.7 x 2.7<br /></span></td>
<td style="text-align: center;"><span class="azul-negrita">6.6 x 3 x 10<br /></span></td>
</tr>
<tr>
<td><strong>Weight (kg)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">4.19</span></td>
<td style="text-align: center;"><span class="azul-negrita">2.6</span></td>
<td style="text-align: center;"><span class="azul-negrita">2.26</span></td>
<td style="text-align: center;"><span class="azul-negrita">51<br /></span></td>
<td style="text-align: center;"><span class="azul-negrita">230<br /></span></td>
</tr>
</tbody>
</table>
<p class="enlace"><a id="know-more6"></a> </p>
<p><strong>SUPPORT MATERIAL</strong></p>
<ul>
<li>Scan the QR code you will receive with your equipment to access all the material for installation, use, and maintenance of this machine. The link allows you to download instructions, manuals, and even video tutorials</li>
</ul>
<p class="enlace"><a id="know-more13"></a> </p>
<p><strong>CERTIFICATIONS</strong></p>
<ul>
<li><strong>CE:</strong> label certifying that this machine complies with all legal requirements for marketing within the European Union</li>
</ul>
<p class="enlace"><a id="know-more12"></a> </p>
<p><strong>WARRANTY</strong></p>
<ul>
<li>As stipulated by law in: <a href="https://www.brildor.com/en/general-terms-and-conditions-for-the-sale#warranty" target="_blank" rel="noopener">General Terms and Conditions for the Sale of Goods</a></li>
</ul>
<p class="enlace"><a id="know-more8"></a> </p>
<p><strong>MATERIALS THAT CAN BE ENGRAVED AND CUT</strong></p>
<p>Information provided by the manufacturer for <strong>guidance purposes</strong>. It may vary depending on the composition of the material, so prior testing is recommended.</p>
<p>You can consult parameters and materials for engraving and cutting via the QR code you receive with the machine.</p>
<table>
<tbody>
<tr>
<td>
<p><strong>Material</strong></p>
</td>
<td style="text-align: center;"><strong>Diode <br />laser</strong></td>
<td style="text-align: center;"><strong>Infrared <br />laser<span class="naranja-brildor"><sup>*</sup></span></strong></td>
</tr>
<tr>
<td><strong>Paper</strong></td>
<td style="text-align: center;">Engrave/Cut</td>
<td style="text-align: center;">Engrave</td>
</tr>
<tr>
<td><strong>Lime/bamboo wood</strong></td>
<td style="text-align: center;">Engrave/Cut</td>
<td style="text-align: center;">-</td>
</tr>
<tr>
<td><strong>MDF</strong></td>
<td style="text-align: center;">Engrave/Cut</td>
<td style="text-align: center;">-</td>
</tr>
<tr>
<td><strong>Opaque black acrylic</strong></td>
<td style="text-align: center;">Engrave/Cut</td>
<td style="text-align: center;">Engrave</td>
</tr>
<tr>
<td><strong>Leather</strong></td>
<td style="text-align: center;">Engrave/Cut</td>
<td style="text-align: center;">-</td>
</tr>
<tr>
<td><strong>Rubber</strong></td>
<td style="text-align: center;">Engrave/Cut</td>
<td style="text-align: center;">-</td>
</tr>
<tr>
<td><strong>Dark glass</strong></td>
<td style="text-align: center;">Engrave/Cut</td>
<td style="text-align: center;">-</td>
</tr>
<tr>
<td><strong>Ceramic</strong></td>
<td style="text-align: center;">-</td>
<td style="text-align: center;">Engrave</td>
</tr>
<tr>
<td><strong>Galvanised metal</strong></td>
<td style="text-align: center;">Engrave/Cut</td>
<td style="text-align: center;">Engrave</td>
</tr>
<tr>
<td><strong>Stainless steel</strong></td>
<td style="text-align: center;">Engrave</td>
<td style="text-align: center;">Engrave</td>
</tr>
<tr>
<td><strong>Gold</strong></td>
<td style="text-align: center;">-</td>
<td style="text-align: center;">Engrave</td>
</tr>
<tr>
<td><strong>Aluminium</strong></td>
<td style="text-align: center;">-</td>
<td style="text-align: center;">Engrave</td>
</tr>
<tr>
<td><strong>Silver</strong></td>
<td style="text-align: center;">-</td>
<td style="text-align: center;">Engrave</td>
</tr>
</tbody>
</table>
<p><span class="naranja-brildor"><sup>*</sup></span><span class="naranja-brildor rojo-brildor"><sup> </sup></span><span style="font-size: 14px;">The infrared laser engraves or marks the indicated materials.</span></p>
<p class="enlace"><a id="know-more7"></a> </p>
<p><strong>TECHNICAL SPECIFICATIONS – XTOOL F1 AND F2 COMPARISON TABLE</strong></p>
<table>
<tbody>
<tr>
<td><strong>Model</strong></td>
<td style="text-align: center;"><strong>xTool F2</strong></td>
<td style="text-align: center;"><strong>xTool F1</strong></td>
</tr>
<tr>
<td><strong>Laser type<br /></strong></td>
<td style="text-align: center;">Diode | Infrared (IR)</td>
<td style="text-align: center;">Diode | Infrared (IR)</td>
</tr>
<tr>
<td><strong>Laser power (W)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">15 Diode<br />5 IR</span></td>
<td style="text-align: center;"><span class="azul-negrita">10 Diode<br />2 IR<br /></span></td>
</tr>
<tr>
<td><strong>Laser safety<br /></strong></td>
<td style="text-align: center;">Class IV</td>
<td style="text-align: center;">Class IV</td>
</tr>
<tr>
<td><strong>Laser spot (mm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">0.08 x 0.06 Diode<br />0.03 x 0.03 IR</span></td>
<td style="text-align: center;"><span class="azul-negrita">0.08 x 0.06 Diode<br />0.03 x 0.03 IR<br /></span></td>
</tr>
<tr>
<td><strong>Pointer speed (mm/s)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">6000</span></td>
<td style="text-align: center;"><span class="azul-negrita">4000</span></td>
</tr>
<tr>
<td><strong>Wavelength (nm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">445 Diode<br />1064 IR</span></td>
<td style="text-align: center;"><span class="azul-negrita">445 Diode<br />1064 IR</span></td>
</tr>
<tr>
<td><strong>Max. cutting thickness (mm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">15</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
</tr>
<tr>
<td><strong>Max. cutting height (mm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">120</span></td>
<td style="text-align: center;"><span class="azul-negrita">113</span></td>
</tr>
<tr>
<td><strong>Engraving resolution (dpi)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">1270</span></td>
<td style="text-align: center;"><span class="azul-negrita">1270</span></td>
</tr>
<tr>
<td><strong>Camera pixels (MP)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">50</span></td>
<td style="text-align: center;">Not included</td>
</tr>
<tr>
<td><strong>Positioning accuracy (mm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">±0.1</span></td>
<td style="text-align: center;">-</td>
</tr>
<tr>
<td><strong>Working area (cm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">11.5 x 11.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">11.5 x 11.5</span></td>
</tr>
<tr>
<td><strong>Max. extended working area (cm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">11.5 x 40</span></td>
<td style="text-align: center;"><span class="azul-negrita">11.5 x 40</span></td>
</tr>
<tr>
<td><strong>Max. working height (cm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">12</span></td>
<td style="text-align: center;"><span class="azul-negrita">11.3</span></td>
</tr>
<tr>
<td><strong>Connection</strong></td>
<td style="text-align: center;">Wi-Fi, USB, IP</td>
<td style="text-align: center;">Wi-Fi, USB</td>
</tr>
<tr>
<td><strong>Power (W)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">150</span></td>
<td style="text-align: center;"><span class="azul-negrita">120</span></td>
</tr>
<tr>
<td><strong>Voltage (V)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">220-240</span></td>
<td style="text-align: center;"><span class="azul-negrita">220-240</span></td>
</tr>
<tr>
<td><strong>File formats</strong></td>
<td style="text-align: center;">SVG, DXF, JPG,<br />JPEG, PNG, BMP…</td>
<td style="text-align: center;">SVG, DXF, JPG,<br />JPEG, PNG, BMP…</td>
</tr>
<tr>
<td><strong>Operating systems</strong><br /><strong>(Desktop | Mobile)</strong></td>
<td style="text-align: center;">Windows, MacOS,<br />iPadOS, Android,<br />iOS</td>
<td style="text-align: center;">Windows, MacOS,<br />iPadOS, Android,<br />iOS</td>
</tr>
<tr>
<td><strong>Compatible software</strong></td>
<td style="text-align: center;">xTool Studio</td>
<td style="text-align: center;">xTool Studio, LightBurn</td>
</tr>
<tr>
<td><strong>Machine (cm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">23.7 x 33.4 x 17.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">20 x 33.4 x 23.5</span></td>
</tr>
<tr>
<td><strong>Max. tube length (cm)<br /></strong></td>
<td style="text-align: center;"><span class="azul-negrita">123.5<br /></span></td>
<td style="text-align: center;"><span class="azul-negrita">123.5<br /></span></td>
</tr>
<tr>
<td><strong>Tube diameter (cm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">Ø7.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø7.5</span></td>
</tr>
<tr>
<td><strong>Net weight (kg)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">4.6</span></td>
<td style="text-align: center;"><span class="azul-negrita">4.9</span></td>
</tr>
</tbody>
</table>
<p class="enlace"><a id="know-more11"></a> </p>
<p><strong>RELATED POSTS</strong></p>
<p><a href="https://www.brildor.com/blog/es/xtool-f2-laser-grabado-portatil/" target="_blank" rel="noopener">xTool F2: the new portable laser engraver for use anywhere</a></p>
<p><a href="https://www.brildor.com/blog/es/lograr-colores-grabado-laser-a-color/" target="_blank" rel="noopener">Achieve reds, blues, pinks and more with colour laser engraving</a></p>
<p><a href="https://www.brildor.com/blog/es/materiales-maquina-laser-todo-necesitas-saber/" target="_blank" rel="noopener">Materials for your laser machine: Everything you need to know</a></p>
<p><a href="https://www.brildor.com/blog/es/elige-maquina-laser-xtool-perfecta-guia/" target="_blank" rel="noopener">Choose like an expert! Find your perfect xTool laser machine with this guide</a></p>
<p><a href="https://www.brildor.com/blog/es/transforma-negocio-maquinas-laser-xtool/" target="_blank" rel="noopener">Transform your business with xTool laser machines</a></p>
https://www.brildor.com/media/catalog/product/m/_/m_quina-port_til-grabado-l_ser-infrarrojos-diodo-xtool-f2-d1.jpg
1895
instock
0
1895
0
0
0
https://www.brildor.com/media/catalog/product/m/_/m_quina-port_til-grabado-l_ser-infrarrojos-diodo-xtool-f2-d1.jpg
51318
51904
52496
53085
53147
54081
/Laser
/Laser/Machines and Accessories
/Grabado
/BLACK FRIDAY
2025-11-19T08:09:19+0000
