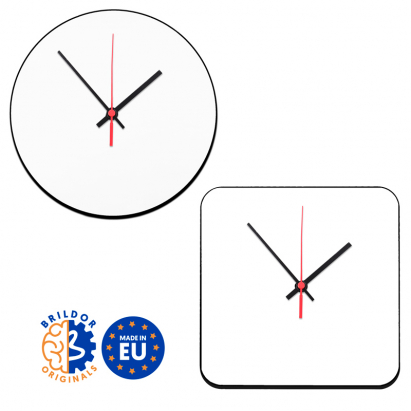

Perfect as souvenirs or gifts at events, celebrations...
You can buy supports to place the clock envelope flat surfaces at Related Products
Central hole of Ø8 mm for placing the mechanism and the needles of the clock (not included)
Sublimatable side in gloss white. Back and edges in black colour, except panel Ref. 033232, which has them in brown colour
The square panels have the rounded corners
THINGS TO KEEP IN MIND
The face has a printable has a protective film of clear plastic which has to be removed before sublimation. For added protection, the film of some panels include an additional layer additional paper which is easily removed
They do not include supports or hooks. You can find different options at Related Products
When choosing the hands of the clock when choosing the hands, take into account the dimensions of the minute hand. Its length should be less than half of the diameter of the panel so that it does not protrude from it
The dimensions of the axis or stud of the mechanism of the clock must be compatible with it:
Panel thickness, so that the end of the stud can be tightened at the rear. It is recommended that the length of the stud be at least 4 mm greater than the thickness of the panel
Stud diameter hole of the panel so that it can be inserted into the stud. It is recommended that the diameter of the stud is at least 2 mm greater than the thickness of the hole
DIMENSIONS
Reference no
051227
036843
051226 033232
051225
Shape
Round
Square
Round
Square
Panel (cm)
Ø20.3
22.8 x 22.8
Ø29
29 x 29
Thickness (mm)
5
5
5
5
Orifice (cm)
0.8
0.8
0.8
0.8
Centre distance (cm)
9.7
11
14
14
Print area (cm)
Ø20.3
22.8 x 22.8
Ø29
29 x 29
Weight (g)
14
22
28
35
RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING
Parameters given for guidance only. It is recommended to carry out preliminary tests in order to make the necessary adjustments before starting production.
Print the design in mode image
Removes the film clear protecting the panel
Preheat the press to 200 ºC
Place protective paper on the lower platen of the press
Place the panel on the lower platen on the press
Pre-iron for 15-20 seconds. This will remove any residue humidity that may have been absorbed by the wood. In this way, it will not peel or crack
Place the printed side of the paper on the side to be sublimated. Secure with heat adhesive tape
Close the press with medium pressure during 70-80 seconds
With the help of gloves protective film, remove the panel the new printed
